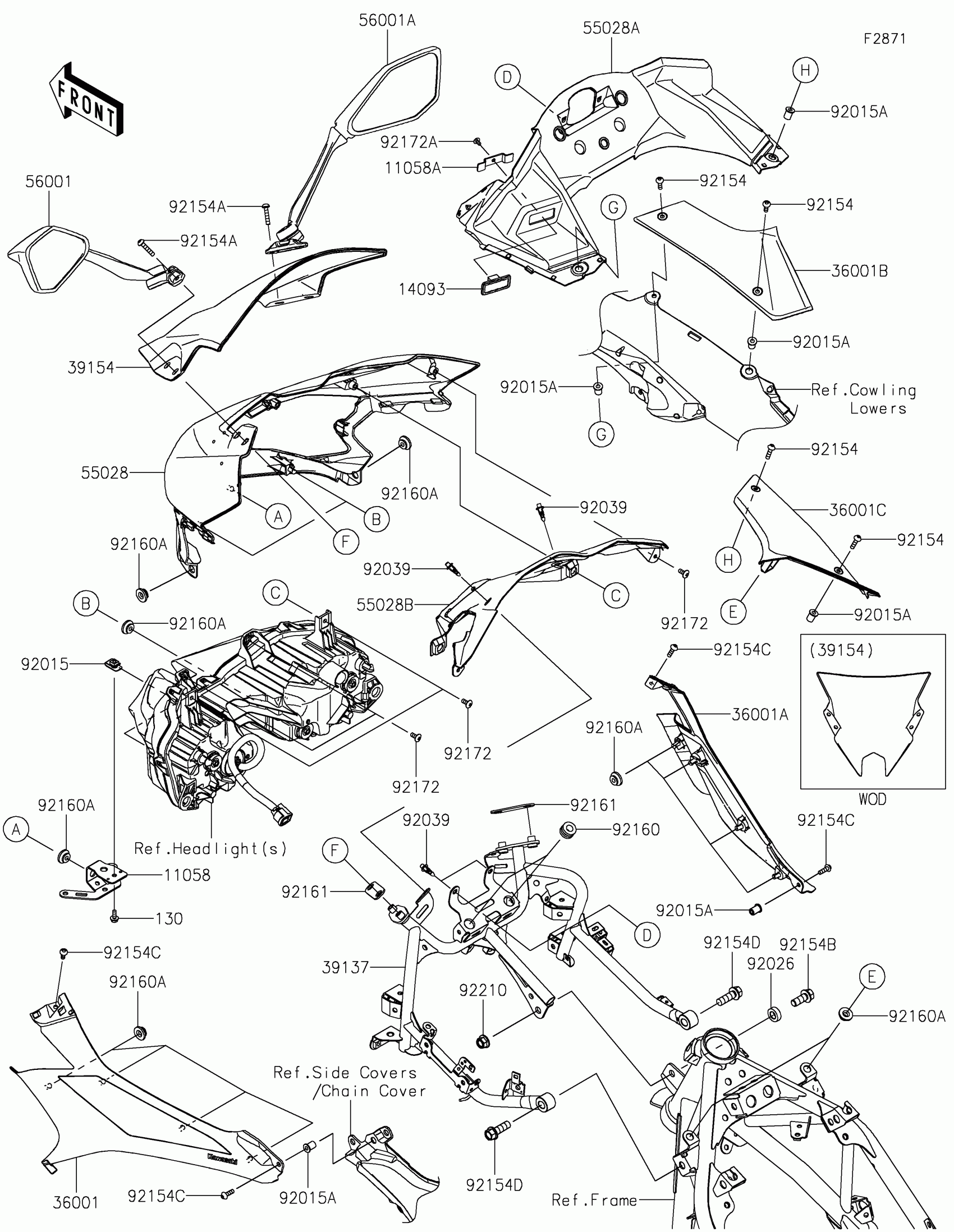

Kawasaki NINJA® 500 ABS Cowling Diagram

#

Description
Price

11058

BRACKET,UPP COWLING

11058-1184

$8.85

11058A

BRACKET,INNER COVER

11058-1246

$1.43

14093

COVER,INNER

14093-1550

$2.82

36001

COVER-SIDE,KNEE GRIP,LH

36001-0751

$34.75

36001A

COVER-SIDE,KNEE GRIP,RH

36001-0752

$34.75

36001B

COVER-SIDE,INNER,LH

36001-0753

$21.85

36001C

COVER-SIDE,INNER,RH

36001-0754

$21.85

39137

STAY-COMP,UPP COWLING

39137-0744

$284.16

39154

WINDSHIELD

39154-0431

$154.55

55028

COWLING,UPP,M.C.GRAY

55028-0874-51A

Unavailable

55028A

COWLING,UPP,M.M.W.SILVER

55028-0874-63V

$370.80

55028D

COWLING,INNER

55028-0875

$103.69

55028E

COWLING,UPP,INNER

55028-0876

$57.26

56001

MIRROR-ASSY,LH

56001-0378

$93.56

56001A

MIRROR-ASSY,RH

56001-0379

$93.56

92015

NUT,5MM

92015-1710

$4.67

92015A

NUT,WELL,5MM

92015-1757

$5.58

92026

SPACER,10.5X20X6.5

92026-0835

$2.76

92039

RIVET

92039-0709

$1.89

92154

BOLT,SOCKET,5X18

92154-2107

$1.54

92154A

BOLT,SOCKET,6X25

92154-2806

$1.74

92154B

BOLT-FLANGED,10X25

92154-4058

$3.15

92154C

BOLT,SOCKET,5X16

92154-4294

$1.95

92154D

BOLT,FLANGED,10X30

92154-4393

$1.85

92160

DAMPER,10X20X12

92160-1167

$3.57

92160A

DAMPER

92160-1613

$2.84

92161

DAMPER

92161-1467

$1.44

92172

SCREW,5X12

92172-0821

$0.73

92172A

SCREW,CROSS,4X8

92172-1227

$0.47

92210

NUT,LOCK,FLANGED,10MM

92210-1081

$9.39

130

BOLT-FLANGED,5X12

130BA0512

$1.55
