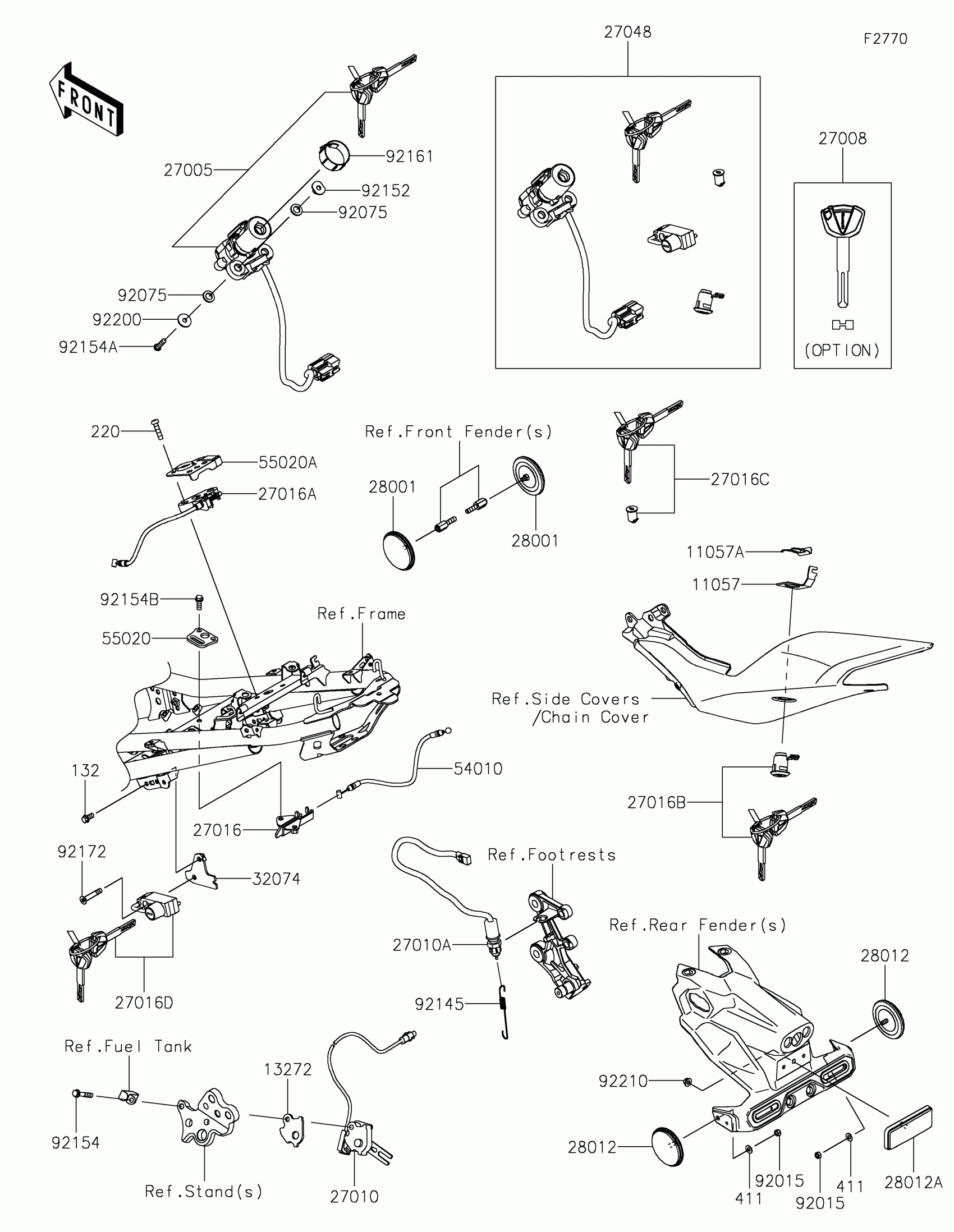

Kawasaki NINJA® 500 ABS Ignition Switch/Locks/Reflectors Diagram

#

Description
Price

11057

BRACKET,SEAT LOCK

11057-7033

$3.93

11057A

BRACKET,SEAT LOCK,UPP

11057-7740

$1.76

13272

PLATE

13272-1330

$2.82

27005

SWITCH-ASSY-IGNITION

27005-0718

$178.58

27008

KEY-LOCK,BLANK

27008-0662

$25.56

27010

SWITCH,SIDE STAND

27010-0845

$120.25

27010A

SWITCH,STOP

27010-0863

$29.63

27016

LOCK-ASSY,SEAT STRIKER

27016-0008

$14.14

27016A

LOCK-ASSY,SEAT STRIKER

27016-0025

$25.42

27016B

LOCK-ASSY,SEAT

27016-5430

$137.10

27016C

LOCK-ASSY,TANK CAP

27016-5431

$124.05

27016D

LOCK-ASSY,HELMET

27016-5432

$112.47

27048

SWITCH-ASSY

27048-5276

$523.72

28001

REFLECTOR-ASSY-REFLEX,FR

28001-0033

$12.02

28012

REFLECTOR-REFLEX,RR,SIDE

28012-0063

$22.71

28012A

REFLECTOR-REFLEX,RR,FLAP

28012-0064

$21.76

32074

BRACKET-LOCK,HELMET

32074-0039

$5.86

54010

CABLE,SEAT LOCK

54010-0661

$9.15

55020

GUARD,SEAT STRIKER

55020-2246

$9.81

55020A

GUARD,SEAT STRIKER

55020-2477

$7.58

92015

NUT,LOCK,5MM

92015-1221

$4.67

92075

DAMPER

92075-1564

$4.15

92145

SPRING,BRAKE LAMP SWITCH

92145-0683

$2.79

92152

COLLAR,6X9X10.6

92152-1971

$11.44

92154

BOLT,FLANGED,6X35

92154-1009

$2.68

92154A

BOLT,TORX,6X22

92154-1858

$3.01

92154B

BOLT,FLANGED-SMALL,6X16,TB2468

92154-3869

Unavailable

92161

DAMPER

92161-1506

$4.97

92172

SCREW,HEXLOBE,6X35

92172-0835

$2.44

92200

WASHER,6X20X1.6

92200-0780

$0.95

92210

NUT,FLANGED,5MM

92210-0007

$1.90

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

220

SCREW-PAN-CROS,6X25

220AC0625

$1.10

411

WASHER-PLAIN,5MM

411AB0500

$0.71
