1990 Kawasaki Ninja® 250R Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

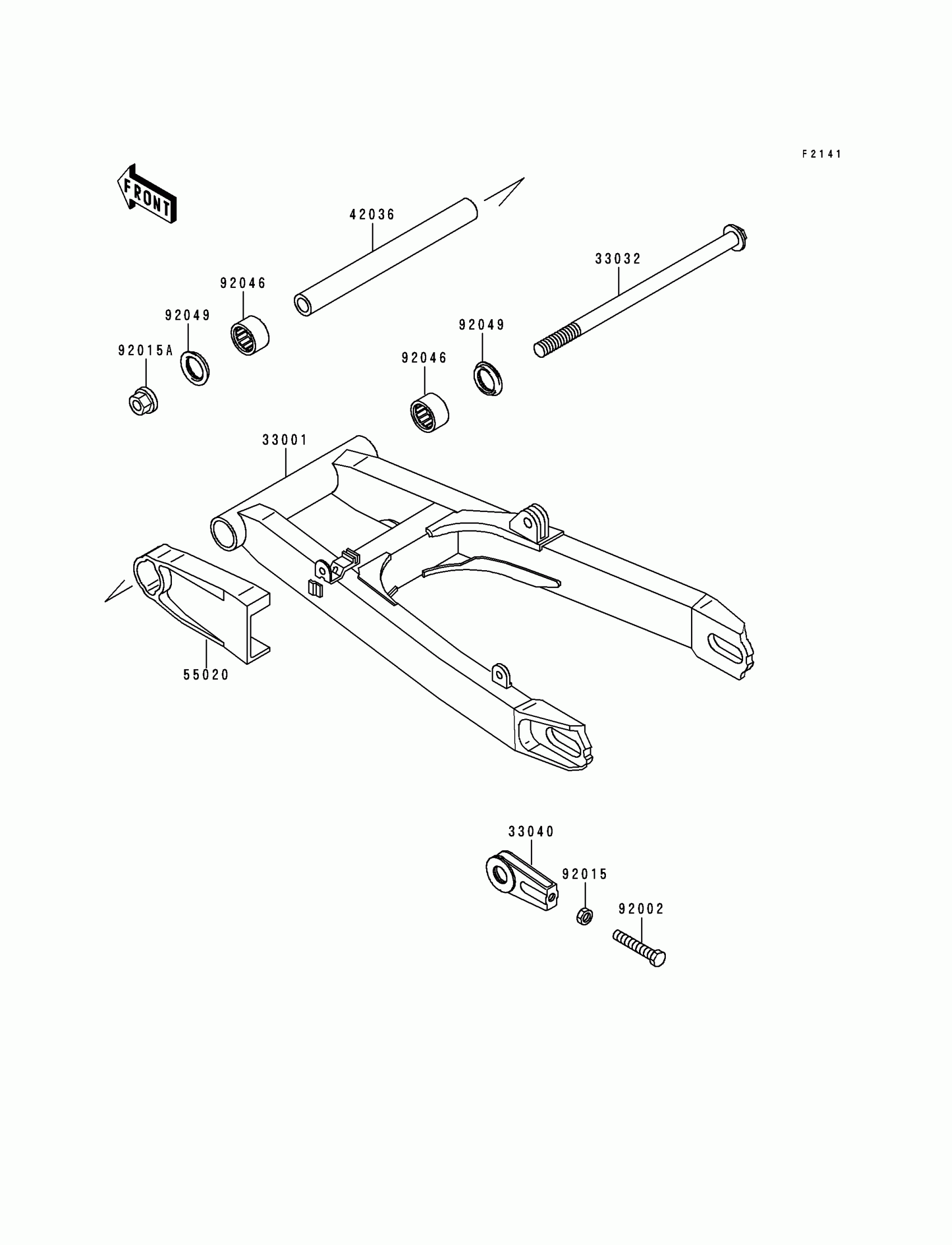

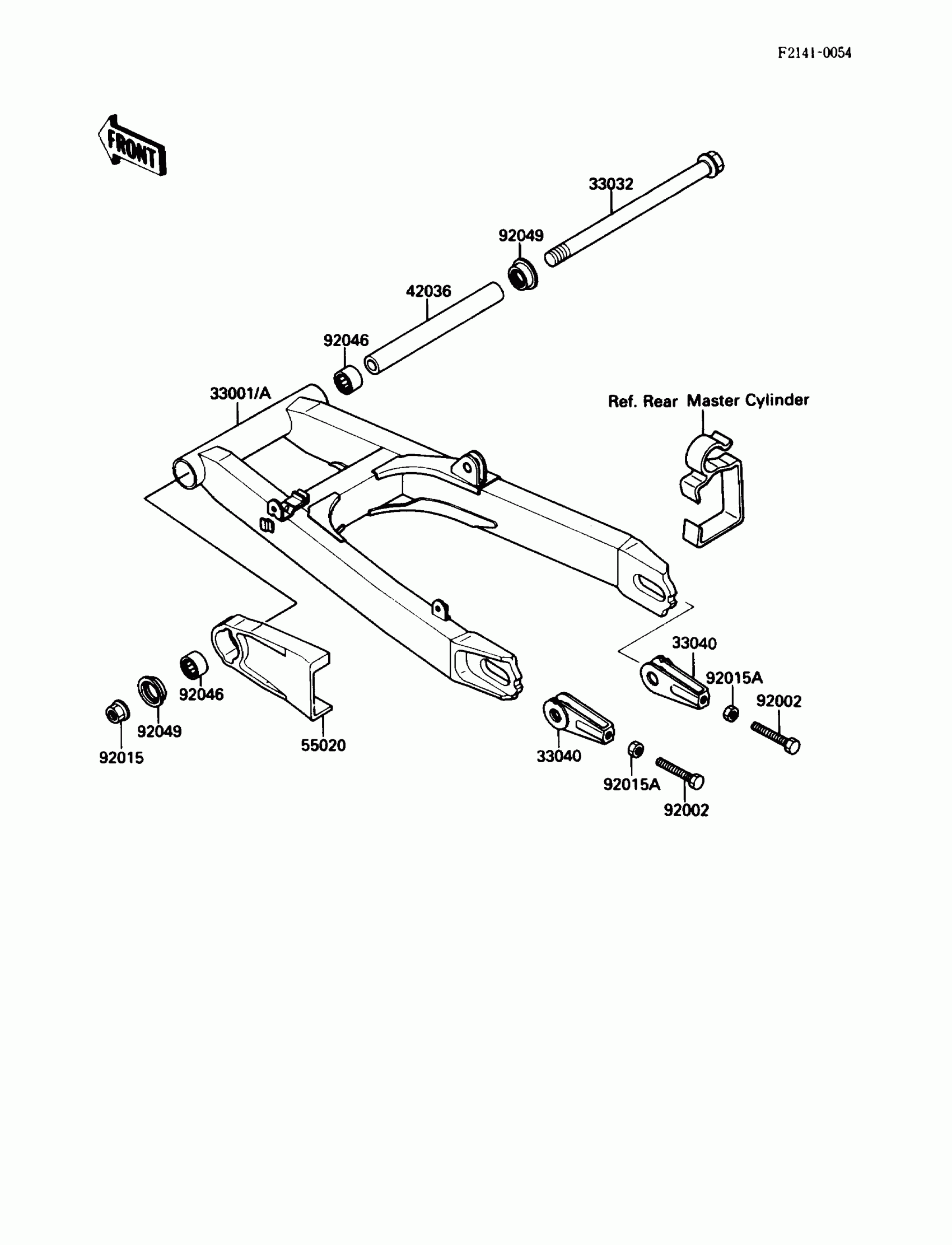

1990 Kawasaki Ninja® 250R Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

1

$462.73

In stock

33032

SHAFT-SWING ARM

33032-1134

1

$54.64

In stock

33040

ADJUSTER-CHAIN

33040-043

1

$31.12

In stock

42036

SLEEVE,16.1X22X213

42036-1218

1

$47.74

In stock

55020

GUARD,CHAIN

55020-1218

1

$56.73

In stock

92002

BOLT,8X55

92002-1825

1
Out of stock

92015

NUT,16MM

92015-1041

1
Out of stock

92015A

NUT,8MM

92015-1364

1

$3.12

In stock

92046

BEARING-NEEDLE,TA2230Z

92046-1174

1
Out of stock

92049

SEAL-OIL,MHA22X29X5.7F

92049-1289

1
Out of stock
