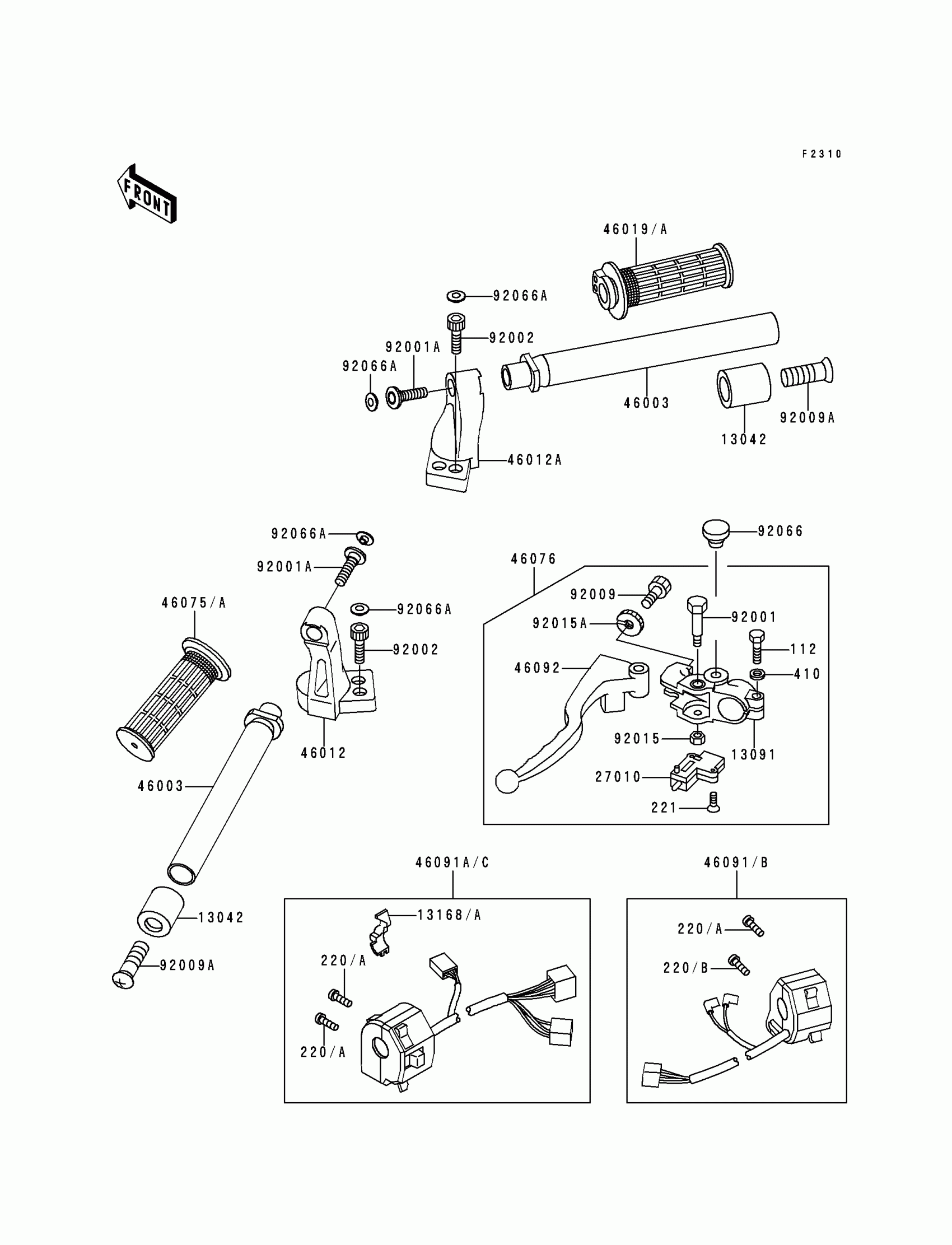

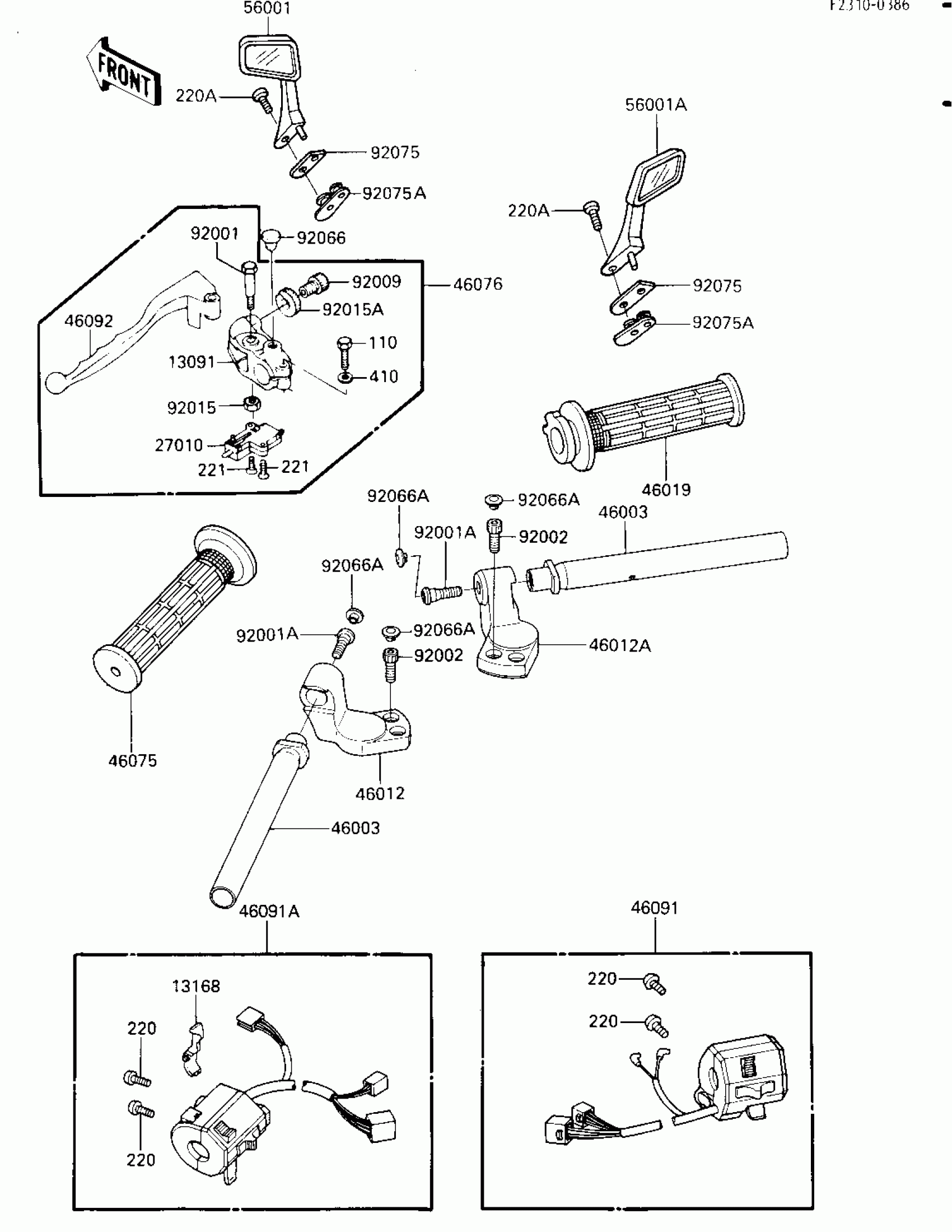

Kawasaki Ninja® 250R HANDLEBAR Diagram

#

Description
Price

13091

HOLDER,CLUTCH LEVER

13091-1272

$49.42

13168

LEVER,CHOKE

13168-1239

Unavailable

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

46003

HANDLE

46003-1217

$91.90

46012

HOLDER-HANDLE,LH

46012-1157

$149.17

46012A

HOLDER-HANDLE,RH

46012-1158

$149.17

46019

GRIP-ASSY,THROTTLE

46019-1058

$36.36

46075

GRIP,LH

46075-1022

$12.80

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1105

$54.17

46091

HOUSING-ASSY-CONTROL,RH

46091-1361

Unavailable

46091A

HOUSING-ASSY-CONTROL,LH

46091-1397

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1103

$20.95

56001

MIRROR-ASSY,LH

56001-1273

Unavailable

56001A

MIRROR-ASSY,RH

56001-1274

Unavailable

92001

BOLT,CLUTCH LEVER,BLACK

92001-1548

$6.46

92001A

BOLT,SOCKET,8X30

92001-1995

$3.57

92002

BOLT,SOCKET,8X20

92002-1178

$3.85

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

92066A

PLUG

92066-1216

$3.54

92075

DAMPER,MIRROR

92075-1815

Unavailable

92075A

DAMPER,MIRROR

92075-1816

Unavailable

110

BOLT,6X22,BLACK

110C0622

Unavailable

220

SCREW-PAN-CROS

220C0520

$1.36

220A

SCREW-PAN-CROS

220C0830

$4.22

221

SCREW-CSK-CROS

221C0316

$3.24

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

Unavailable
