1990 Kawasaki Ninja® 250R Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

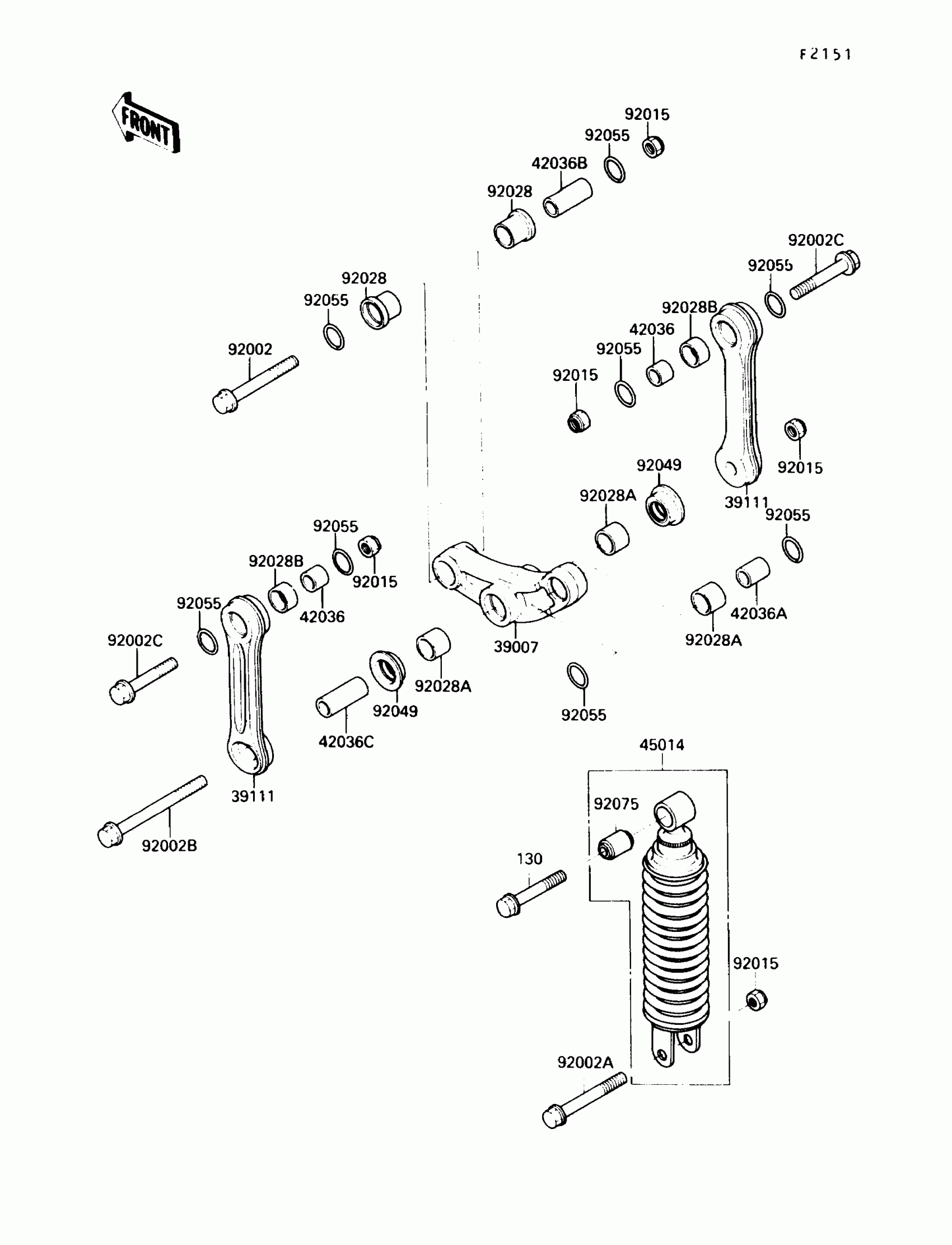

1990 Kawasaki Ninja® 250R Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-1093

1
Out of stock

39111

ROD-TIE,UNI TRAK

39111-1021

1
Out of stock

42036

SLEEVE,12.1X20X22

42036-1076

1
Out of stock

42036A

SLEEVE,12.1X20X32

42036-1077

1
Out of stock

42036B

SLEEVE,ARM,FR

42036-1078

1
Out of stock

42036C

SLEEVE,12.1X20X70

42036-1079

1
Out of stock

45014

SHOCKABSORBER

45014-1406

1
Out of stock

92002

BOLT,12X90

92001-1937

1
Out of stock

92002A

BOLT,12X55

92001-1938

1
Out of stock

92002B

BOLT,12X110

92002-1064

1
Out of stock

92002C

BOLT,12X45

92002-1065

1
Out of stock

92015

NUT,LOCK,12MM

92015-1375

1
Out of stock

92028

BUSHING,FLANGED

92028-1200

1
Out of stock

92028A

BUSHING,20X23X25L

92028-1201

1
Out of stock

92028B

BUSHING,20X23X15

92028-1202

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92055

RING-O,19.8X2.2

92055-1215

1
Out of stock

92075

DAMPER,SHOCKABSORBER

92075-1497

1
Out of stock

130

BOLT-FLANGED,12X55

130G1255

1
Out of stock
