1990 Kawasaki Ninja® 250R Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1990 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

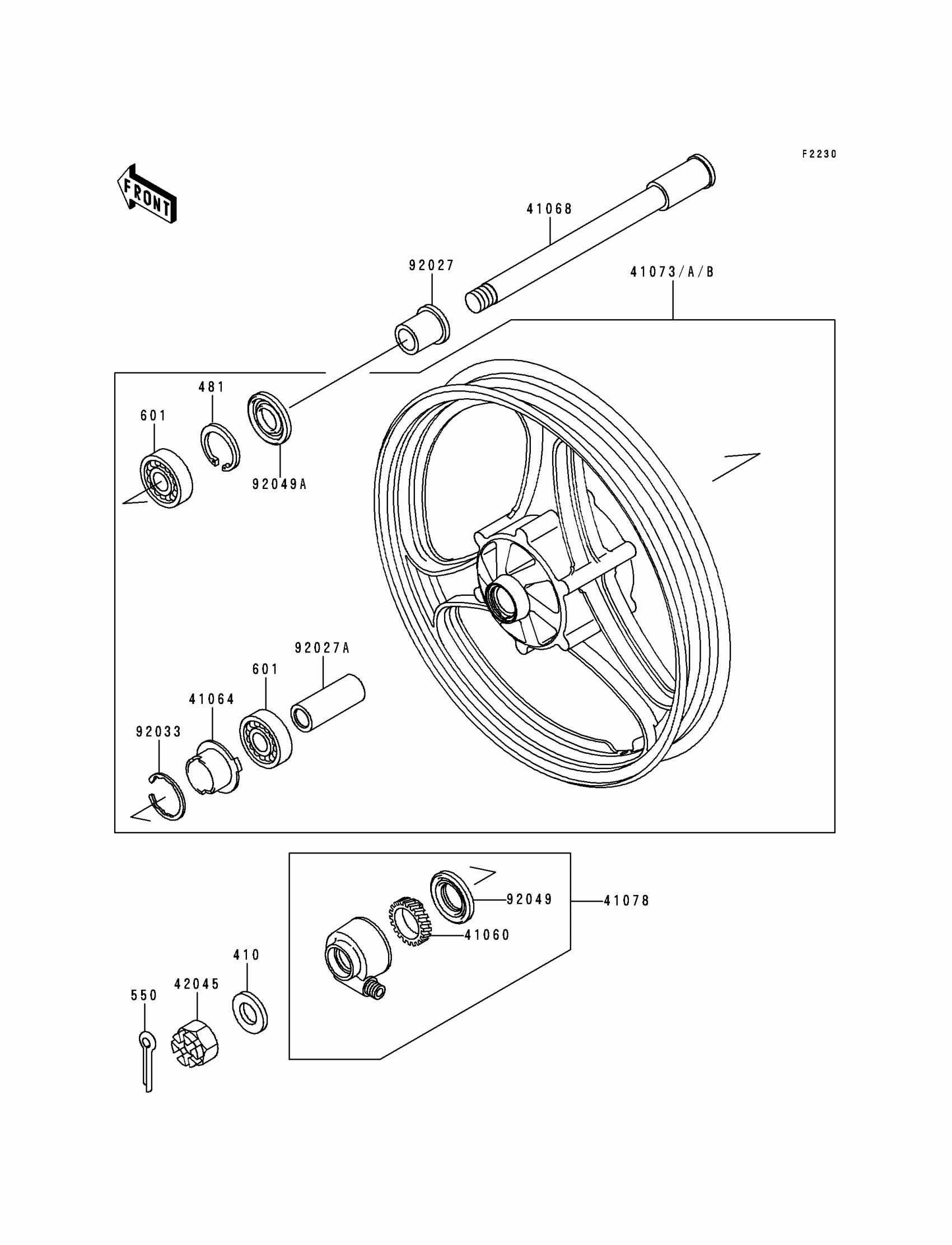

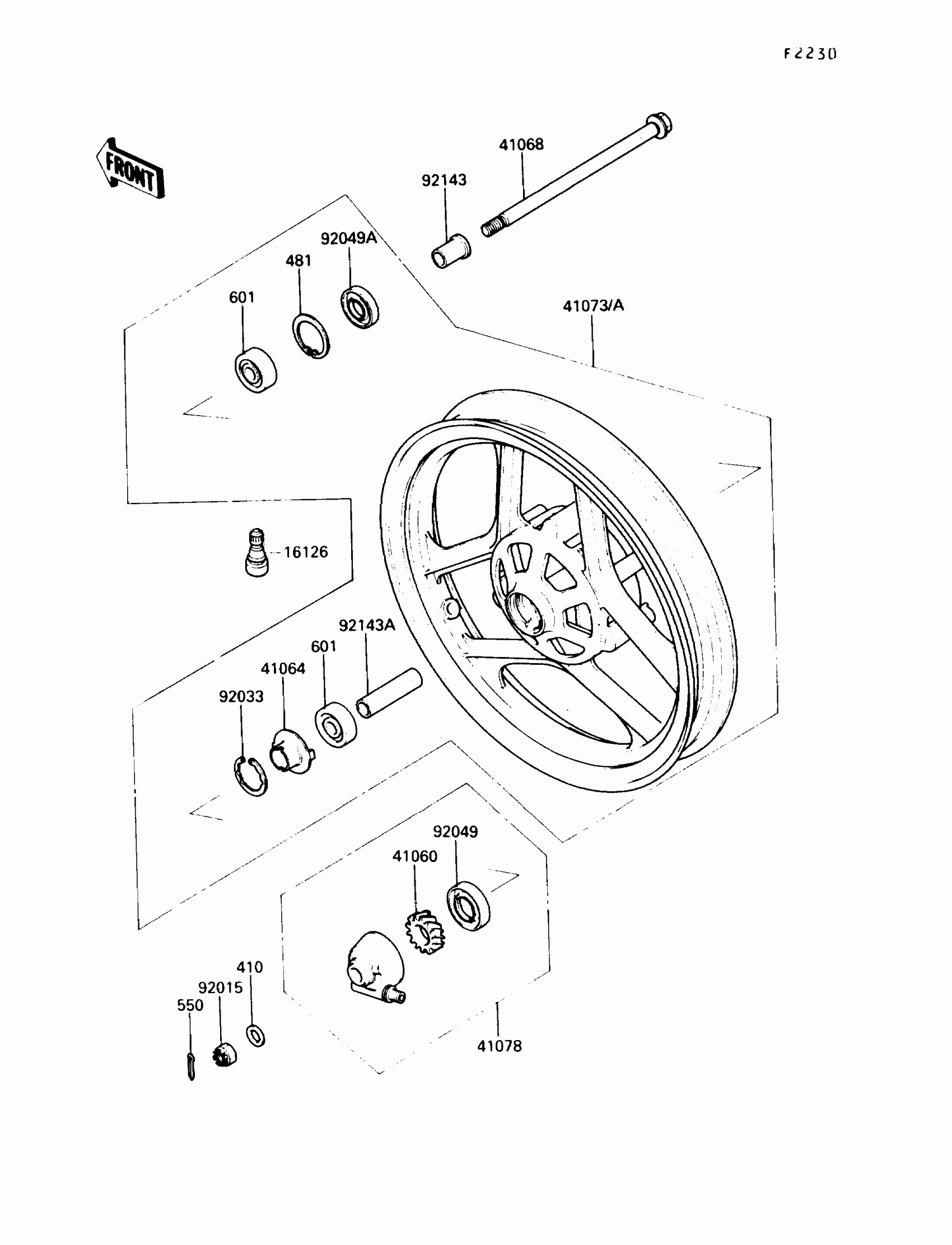

1990 Kawasaki Ninja® 250R Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,TIRE

16126-1140

1

$26.29

In stock

41060

1

$20.90

In stock

41064

1

$11.81

In stock

41068

AXLE,FR

41068-1220

1

$69.66

In stock

41073

1

$855.12

In stock

41078

1

$124.72

In stock

92015

NUT,CASTLE,14MM

42045-020

1

$7.80

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92049

SEAL-OIL,BJN30427-C3

92049-1057

1
Out of stock

92049A

SEAL-OIL,22X35X8

92049-1348

1
Out of stock

92143

COLLAR,L=36.5

92027-1979

1

$19.46

In stock

92143A

COLLAR,15.2X22X60

92027-1980

1

$14.15

In stock

410

WASHER-PLAIN-SMALL,14MM

410B1400

1
Out of stock

481

1

$1.64

In stock

550

PIN-COTTER,3.0X25

550D3025

1
Out of stock

601

1

$16.17

In stock
