1987 Kawasaki Ninja® 250R Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1987 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

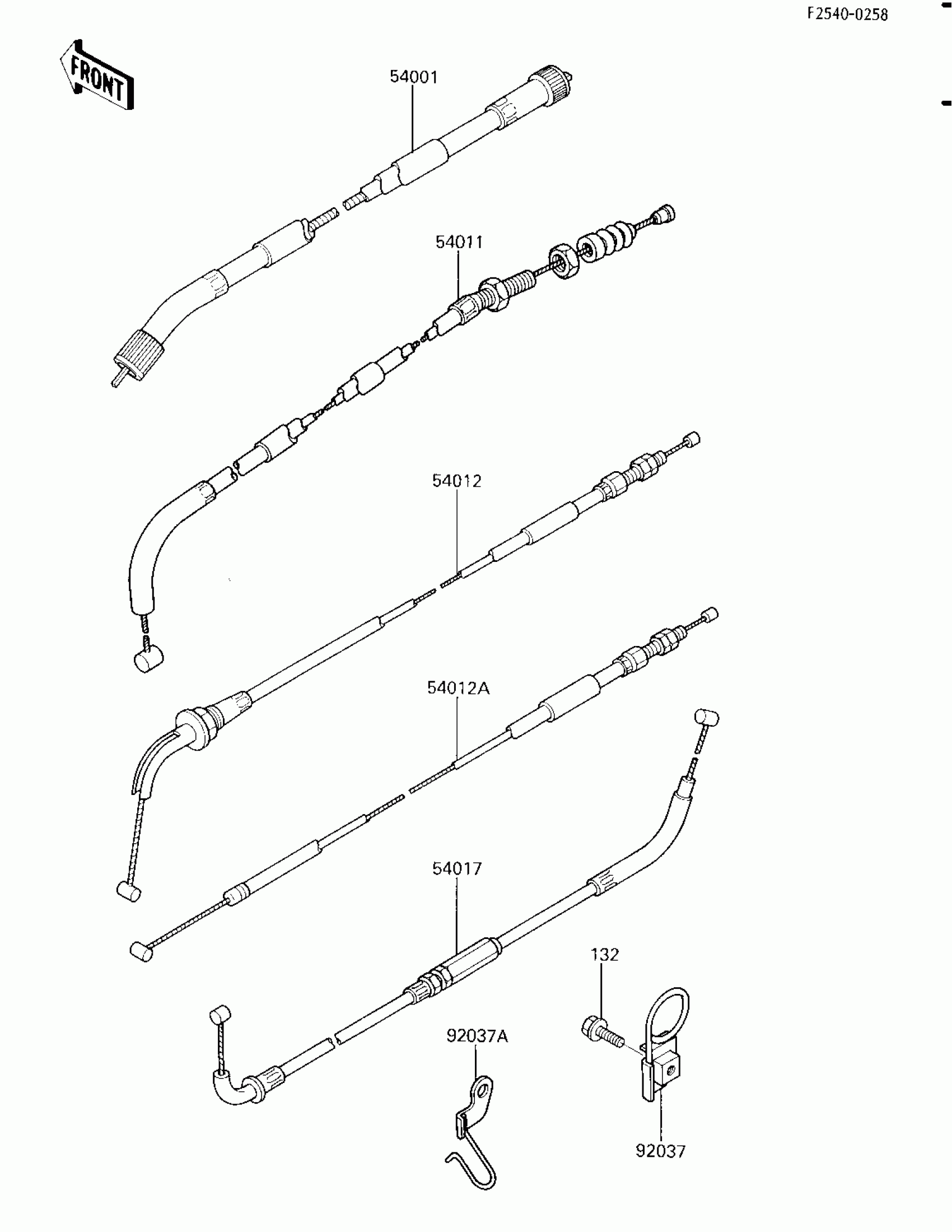

1987 Kawasaki Ninja® 250R Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54001

CABLE-SPEEDOMETER

54001-1123

1

$20.90

In stock

54011

CABLE-CLUTCH

54011-1241

1

$36.42

In stock

54012

1

$35.92

In stock

54012A

1

$35.92

In stock

54017

CABLE-STARTER

54017-1074

1

$35.31

In stock

92037

CLAMP

92037-1795

1

$7.03

In stock

92037A

CLAMP

92037-1796

1

$6.88

In stock

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock
