1987 Kawasaki Ninja® 1000R Fuel Tank Diagram

← All diagrams

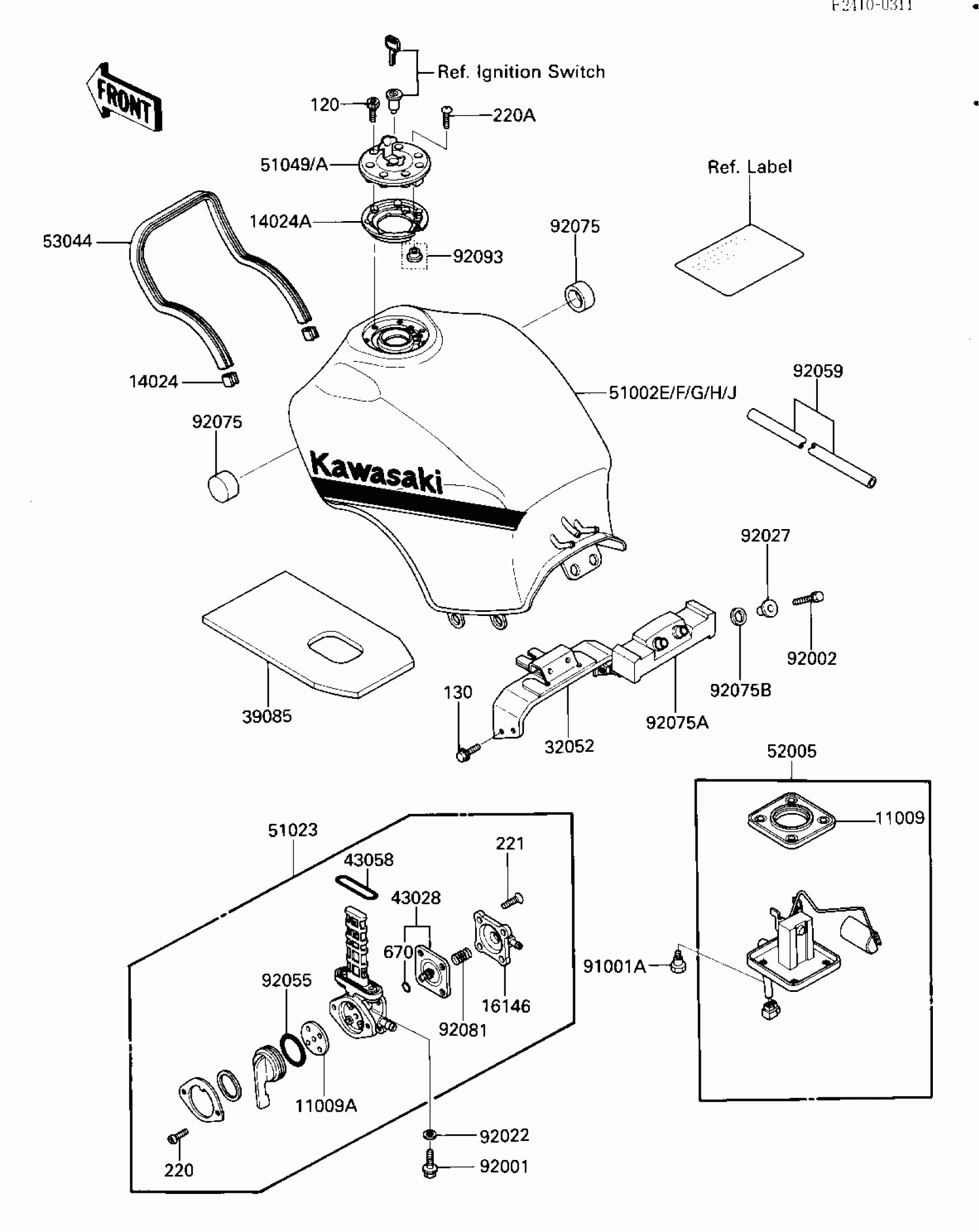

Find the part on the Fuel Tank diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Ninja® 1000R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FUEL GAUGE

11009-1656

1
Out of stock

11009A

GASKET,TAP VALVE

11009-1530

1
Out of stock

14024

COVER,TRIM END

14025-1756

1
Out of stock

14024A

COVER,TANK CAP

14025-1913

1
Out of stock

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1005

1
Out of stock

32052

BRACKET-TANK,RR

32052-1208

1
Out of stock

39085

PAD-TANK

39085-1051

1
Out of stock

43028

DIAPHRAGM,TAP

43028-1015

1
Out of stock

43058

RING,TAP FLANGED

51039-010

1
Out of stock

51002G

TANK-COMP-FUEL,EBONY

51002-5167-H8

1
Out of stock

51002H

TANK-COMP,FUEL,EBONY

51002-5168-H8

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1119

1
Out of stock

51049A

CAP-TANK,FUEL

51049-1079

1
Out of stock

52005

GAUGE,FUEL

52005-1072

1
Out of stock

53044

TRIM,FUEL TANK

53044-1158

1
Out of stock

92001

BOLT,6X20

92001-1091

1
Out of stock

92001A

BOLT,FUEL GAUGE

92001-1705

1
Out of stock

92002

BOLT,6X30

92002-1295

1
Out of stock

92022

WASHER-PLAIN

92022-183

1
Out of stock

92027

COLLAR,L=16.1

92027-1847

1
Out of stock

92055

RING-O,TAP LEVER

92055-1027

1
Out of stock

92059

TUBE,5X8X660

92059-1663

1
Out of stock

92075

DAMPER,FUEL TANK

92075-1716

1
Out of stock

92075A

DAMPER,FUEL TANK

92075-1762

1
Out of stock

92075B

DAMPER,RUBBER

92075-310

1
Out of stock

92081

SPRING,TAP DIAPHRAGM

92081-1171

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

130

BOLT,FLANGED,6X14

130G0614

1
Out of stock

220

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

220A

SCREW-PAN-CROSS

220C0508

1
Out of stock

221

SCREW-CSK-CROS,4X14

221B0414

1
Out of stock

670

O RING,4MM

670B1504

1
Out of stock
