1987 Kawasaki Ninja® 1000R Canister Diagram

← All diagrams

Find the part on the Canister diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

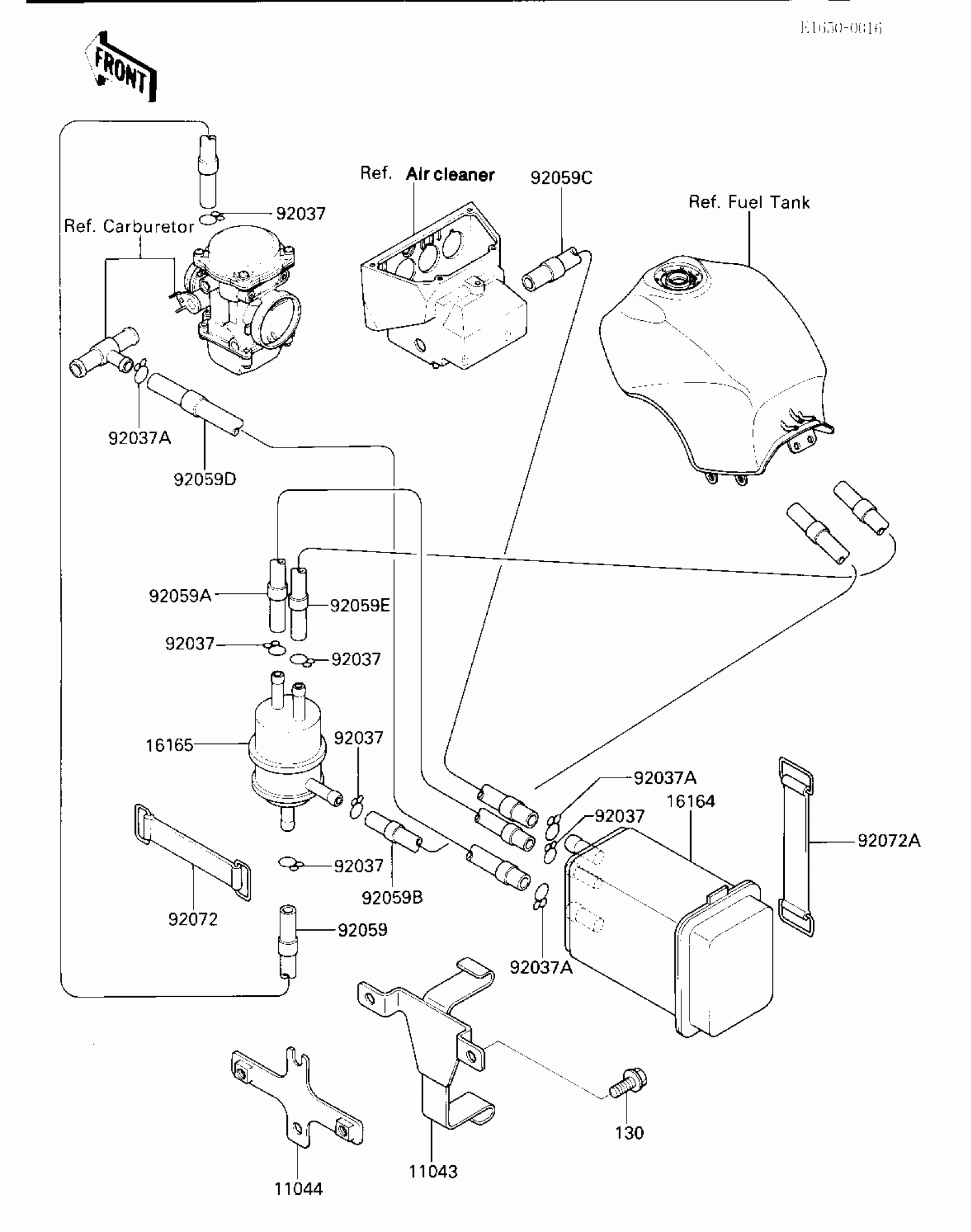

1987 Kawasaki Ninja® 1000R Canister Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

BRACKET,CANISTER

11043-1831

1
Out of stock

11044

BRACKET,CANISTER

11044-1236

1
Out of stock

16164

CANISTER

16164-1064

1

$148.51

In stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

92037

CLAMP,TUBE

92037-010

1

$3.12

In stock

92037A

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92059

TUBE

92059-1488

1

$15.01

In stock

92059A

TUBE,5X10X660,RED

92059-1502

1
Out of stock

92059B

TUBE,5X8X980,BLUE

92059-1420

1
Out of stock

92059C

TUBE,7X12X200,GREEN

92059-1642

1

$12.36

In stock

92059D

1

$19.05

In stock

92059E

TUBE,5X8X350,BLUE

92059-1644

1
Out of stock

92072

BAND,L=50

92072-066

1

$12.72

In stock

92072A

BAND,L=100

92072-071

1

$9.24

In stock

130

BOLT-FLANGED,6X10

130B0610

1
Out of stock
