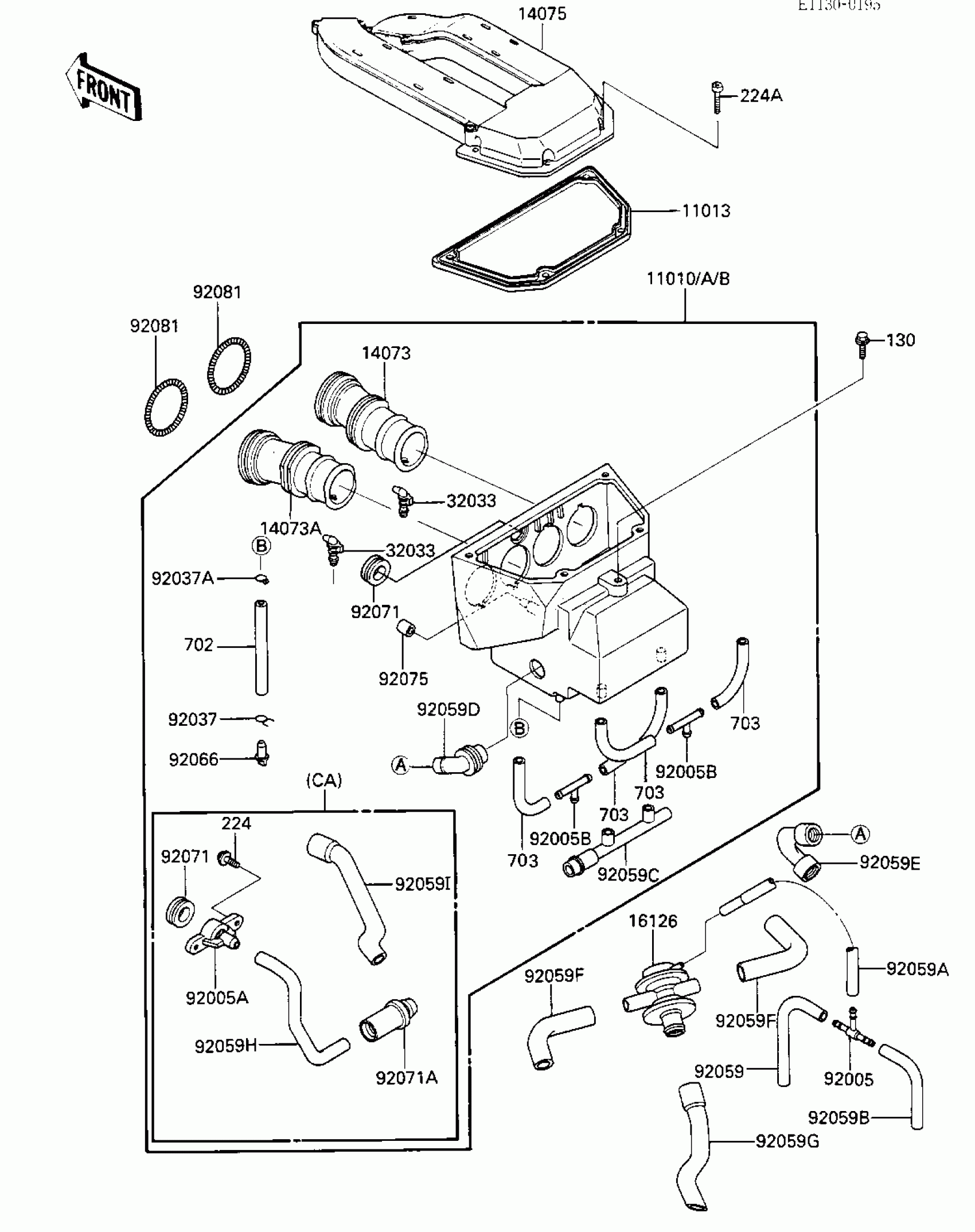

Kawasaki Ninja® 1000R AIR CLEANER Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1278

Unavailable

11010A

FILTER-ASSY-AIR

11010-1279

Unavailable

11010B

11010-1346 (Canada)

11010-1280

Unavailable

11013

ELEMENT-AIR FILTER

11013-1128

$40.96

14073

DUCT,#1,#4

14073-1215

$40.14

14073A

DUCT,#2,#3

14073-1216

$40.14

14075

CAP-ASSY,AIR FILTER

14075-1064

$265.84

16126

VALVE,AIR SWITCH

16126-1144

$204.57

32033

PIPE

32033-1967

$16.86

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING

92005-1139

$34.81

92005B

FITTING,T-TYPE

92005-1143

Unavailable

92037

CLAMP,TUBE

92037-072

$5.51

92037A

CLAMP,TUBE

92037-147

$5.61

92059

TUBE,VACUUM,LONG

92059-1162

$14.40

92059A

TUBE,VACUUM,LONG

92059-1162

$14.40

92059B

TUBE,4X9X80

92059-1365

$12.97

92059C

TUBE,BREATHER,INNER

92059-1549

$14.51

92059D

TUBE,BREATHER,OUTER

92059-1550

$13.85

92059E

TUBE

92059-1551

$19.41

92059F

TUBE

92059-1629

$11.29

92059G

TUBE

92059-1630

$32.45

92059H

TUBE

92059-1631

Unavailable

92059I

TUBE

92059-1636

$18.34

92066

PLUG,DRAIN

92066-1211

$6.48

92071

GROMMET,AIR FILTER

92071-1042

$5.55

92071A

GROMMET

92071-1132

$8.46

92075

DAMPER RUBBER

92075-107

Unavailable

92081

SPRING,COIL,BLACK

92081-1457

$8.67

130

BOLT-FLANGED,6X20

130C0620

Unavailable

224

SCREW-PAN-WP-CROS

224C0614

Unavailable

224A

SCREW-PAN-WP-CROS

224C0620

$3.03

702

TUBE-RUBBER

702A07480

$10.11

703

TUBE-RUBBER

703A07100

$6.95
