1987 Kawasaki Ninja® 1000R Carburetor Assy Diagram

← All diagrams

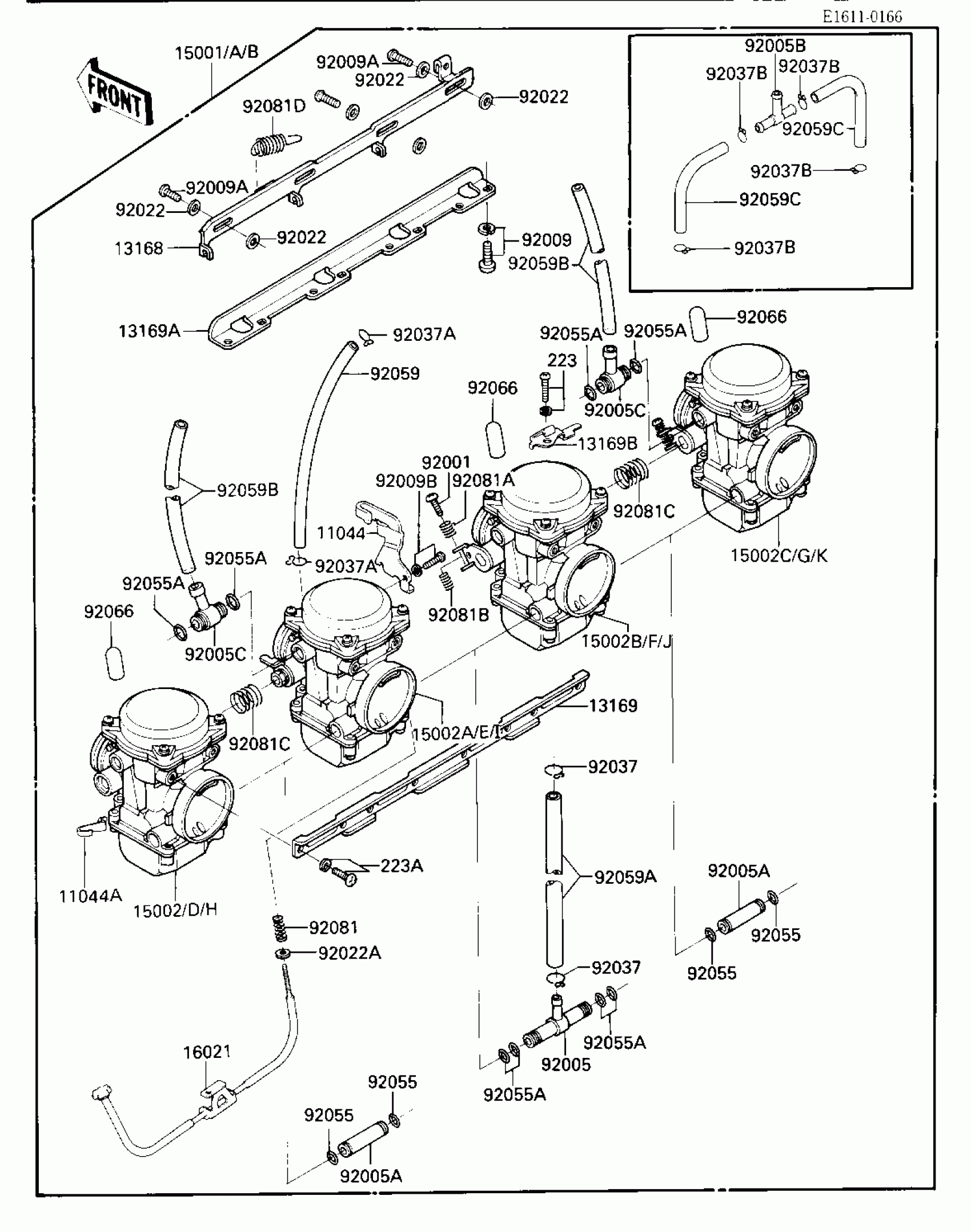

Find the part on the Carburetor Assy diagram for your 1987 Kawasaki Ninja® 1000R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Ninja® 1000R Carburetor Assy Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,THROTTLE CABLE

11044-1546

1
Out of stock

11044A

BRACKET,THROTTLE STOP

11045-1607

1
Out of stock

13168

LEVER,STARTER

13168-1245

1
Out of stock

13169

PLATE,CARBURETOR STAY,UPP

13169-1869

1
Out of stock

13169A

PLATE,CARBURETOR STAY,LWR,6MM

13169-1870

1
Out of stock

13169B

PLATE,STARTER CABLE

13169-1871

1
Out of stock

15001

CARBURETOR-ASSY

15001-1164

1
Out of stock

15001A

CARBURETOR-ASSY

15001-1165

1
Out of stock

15001B

CARBURETOR-ASSY (Canada)

15001-1166

1
Out of stock

15002

CARBURETOR,LH,OUTSIDE

15002-1296

1
Out of stock

15002A

CARBURETOR,LH,INSIDE

15002-1297

1
Out of stock

15002B

CARBURETOR,RH,INSIDE

15002-1298

1
Out of stock

15002C

CARBURETOR,RH,OUTSIDE

15002-1299

1
Out of stock

15002D

CARBURETOR,LH,OUTSIDE

15002-1300

1
Out of stock

15002E

CARBURETOR,LH,INSIDE

15002-1301

1
Out of stock

15002F

CARBURETOR,RH,INSIDE

15002-1302

1
Out of stock

15002G

CARBURETOR,RH,OUTSIDE

15002-1303

1
Out of stock

15002H

CARBURETOR,LH,OUTSIDE (Canada)

15002-1304

1
Out of stock

15002I

CARBURETOR,LH,INSIDE (Canada)

15002-1305

1
Out of stock

15002J

CARBURETOR,RH,INSIDE (Canada)

15002-1306

1
Out of stock

15002K

CARBURETOR,RH,OUTSIDE (Canada)

15002-1307

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1116

1
Out of stock

92001

BOLT,THROTTLE ADJUST

92001-1998

1
Out of stock

92005

FITTING,FUEL,T-TYPE

92005-1108

1
Out of stock

92005A

FITTING,FUEL,I-TYPE

92005-1109

1
Out of stock

92005B

FITTING,T-TYPE

92005-1135

1
Out of stock

92005C

FITTING,T-TYPE

92005-1125

1
Out of stock

92009

SCREW,6X16

92009-1129

1
Out of stock

92009A

SCREW

92009-1262

1
Out of stock

92009B

SCREW,5X10

92009-1365

1
Out of stock

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

1
Out of stock

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

1
Out of stock

92037

CLAMP,FUEL TUBE

92037-1075

1
Out of stock

92037A

CLAMP,TUBE

92037-1142

1
Out of stock

92037B

CLAMP,TUBE

92037-1606

1
Out of stock

92055

RING-O

92055-1004

1
Out of stock

92055A

RING-O

92055-1223

1
Out of stock

92059

TUBE,5X9X200

92059-1173

1
Out of stock

92059A

TUBE,7.3X12.5X260

92059-1492

1
Out of stock

92059B

TUBE,6.5X9.5X260

92059-1598

1
Out of stock

92059C

TUBE,7X11X140

92059-1688

1
Out of stock

92066

PLUG,12X25

92068-006

1
Out of stock

92066

PLUG,12X25

92068-006

1
Out of stock

92081

SPRING,THROTTLE STOP SCREW

92081-1617

1
Out of stock

92081A

SPRING

92081-1620

1
Out of stock

92081B

SPRING,THROTTLE ADJUST LWR

92081-1621

1
Out of stock

92081C

SPRING,THROTTLE ADJUST CNT

92081-1622

1
Out of stock

92081D

SPRING,STARTER LEVER

92081-1762

1
Out of stock

223

SCREW-PAN-WS-CROS,4X20

223C0420

1
Out of stock

223A

SCREW-PAN-WS-CROS,5X10

223C0510

1
Out of stock
