2013 Kawasaki Ninja® 1000 Radiator Diagram

← All diagrams

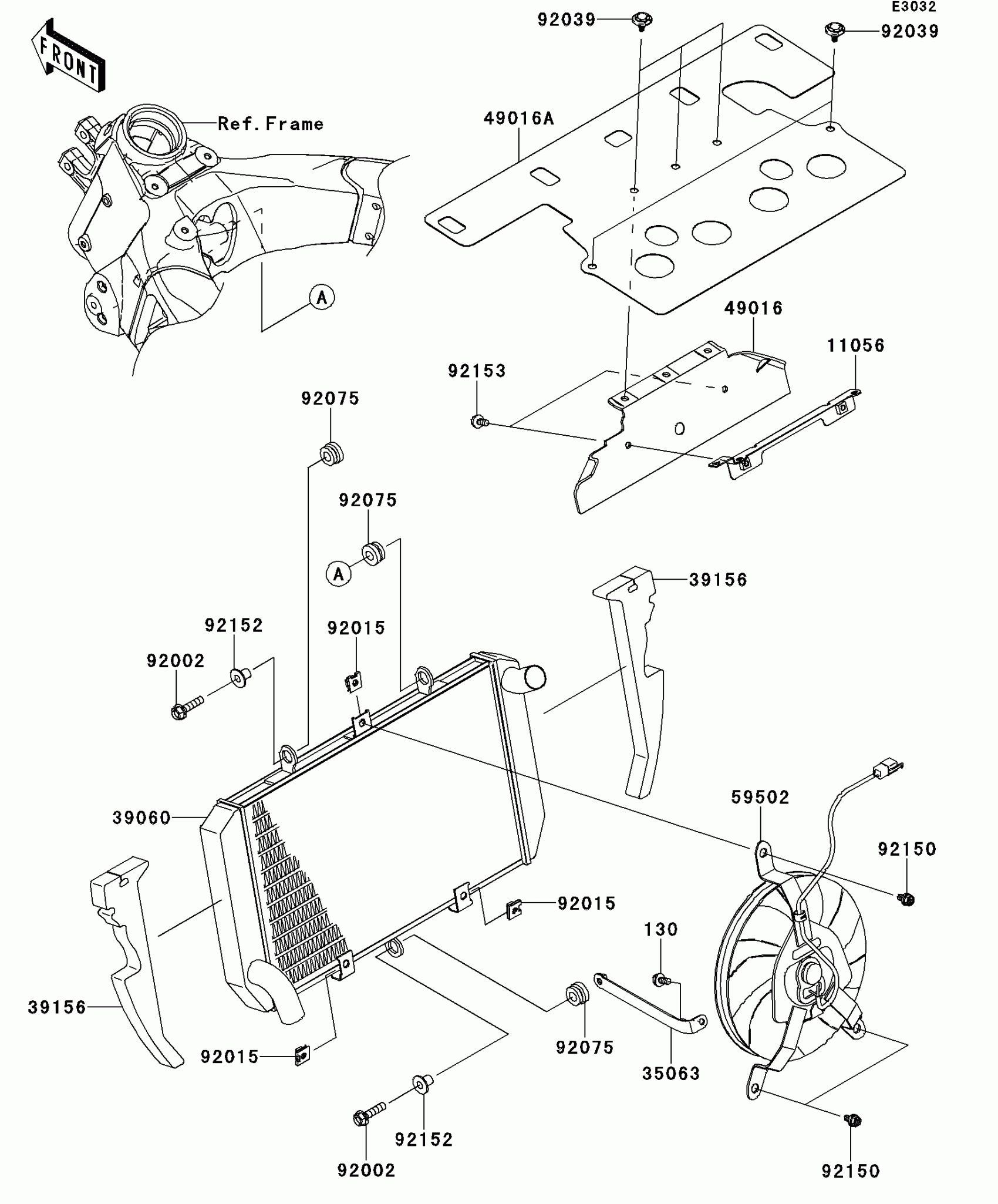

Find the part on the Radiator diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-0230

1

$10.22

In stock

35063

STAY

35063-0761

1

$5.88

In stock

39060

RADIATOR

39060-0081

1

$847.72

In stock

39156

PAD

39156-0665

1
Out of stock

49016

COVER-SEAL

49016-0082

1

$12.07

In stock

49016A

COVER-SEAL

49016-0572

1

$56.60

In stock

59502

FAN-ASSY

59502-0567

1

$810.90

In stock

92002

BOLT,FLANGED,6X25

92002-1086

1

$4.37

In stock

92015

NUT

92015-1487

1

$3.80

In stock

92039

RIVET,HOLE 8MM

92039-0014

1

$2.64

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92152

COLLAR

92152-0667

1

$5.87

In stock

92153

BOLT,FLANGED,6X12

92153-1660

1

$1.53

In stock

130

BOLT-FLANGED,6X16

130CC0616

1

$1.66

In stock
