2013 Kawasaki Ninja® 1000 Crankcase Diagram

← All diagrams

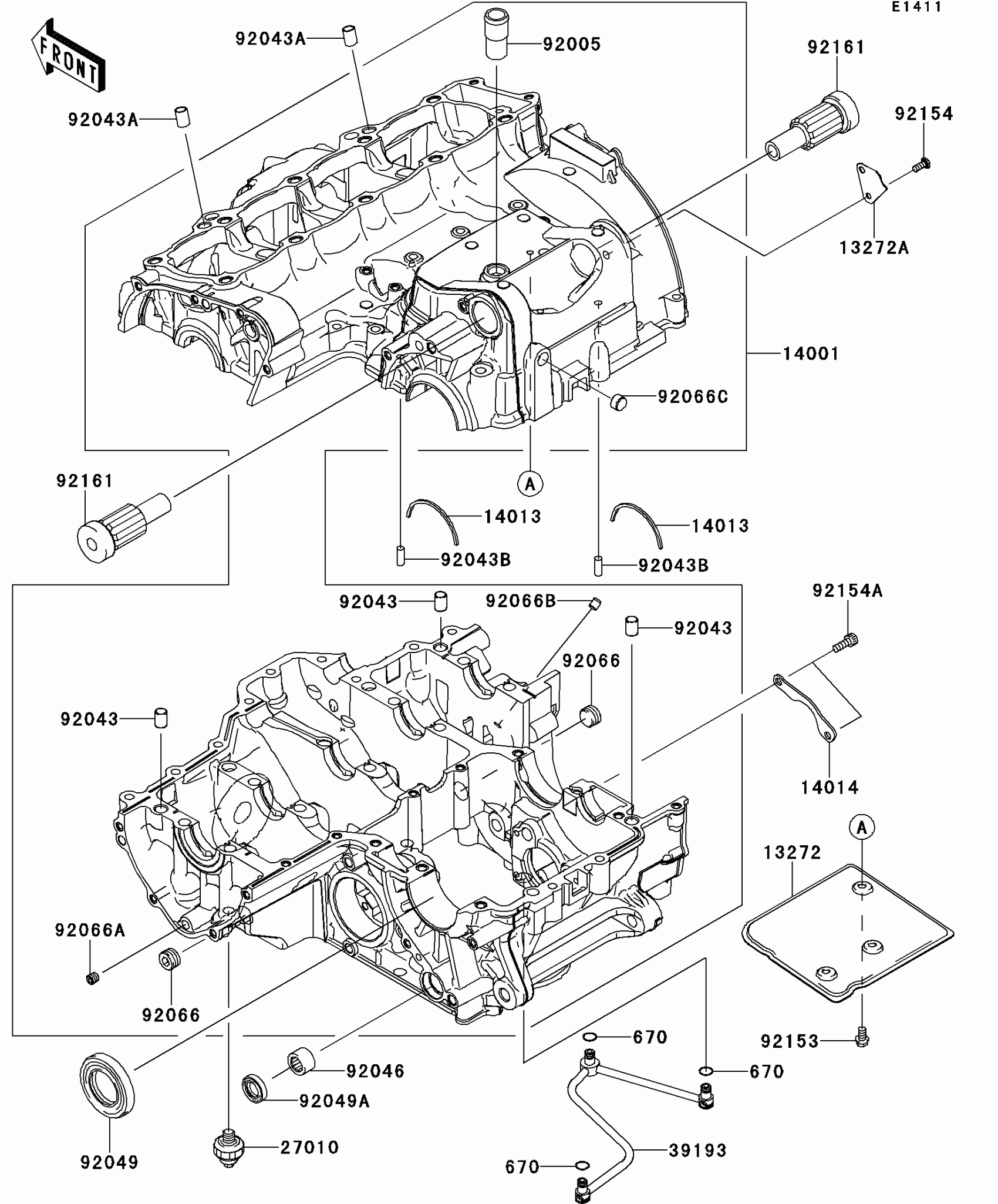

Find the part on the Crankcase diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,BREATHER,UPP

13272-0698

1

$9.29

In stock

13272A

PLATE,BREATHER,SIDE

13272-0699

1

$3.59

In stock

14001

SET-CRANKCASE

14001-0600

1
Out of stock

14013

RING-POSITION

14013-1051

1
Out of stock

14014

PLATE-POSITION

14014-0036

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1

$36.57

In stock

39193

PIPE-OIL

39193-0054

1

$51.94

In stock

92005

FITTING,BREATHER

92005-1238

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92043A

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92043B

PIN,6X16

92043-1690

1

$3.97

In stock

92046

1

$13.53

In stock

92049

SEAL-OIL,TC32578

92049-1474

1
Out of stock

92049A

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92066

PLUG,PT3/8X10

92066-0003

1

$2.66

In stock

92066A

PLUG

92066-0158

1

$5.29

In stock

92066B

PLUG,OIL LINE,7.2X8

92066-1012

1

$5.66

In stock

92066C

PLUG

92066-1110

1

$5.66

In stock

92153

BOLT,6X10

92153-0381

1
Out of stock

92154

BOLT,TORX,5X12

92154-0299

1

$1.73

In stock

92154A

BOLT,SOCKET,6X16

92154-0484

1

$1.44

In stock

92161

DAMPER

92161-0801

1

$25.31

In stock

670

O RING

670D1505

1

$3.43

In stock
