2013 Kawasaki Ninja® 1000 Balancer Diagram

← All diagrams

Find the part on the Balancer diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

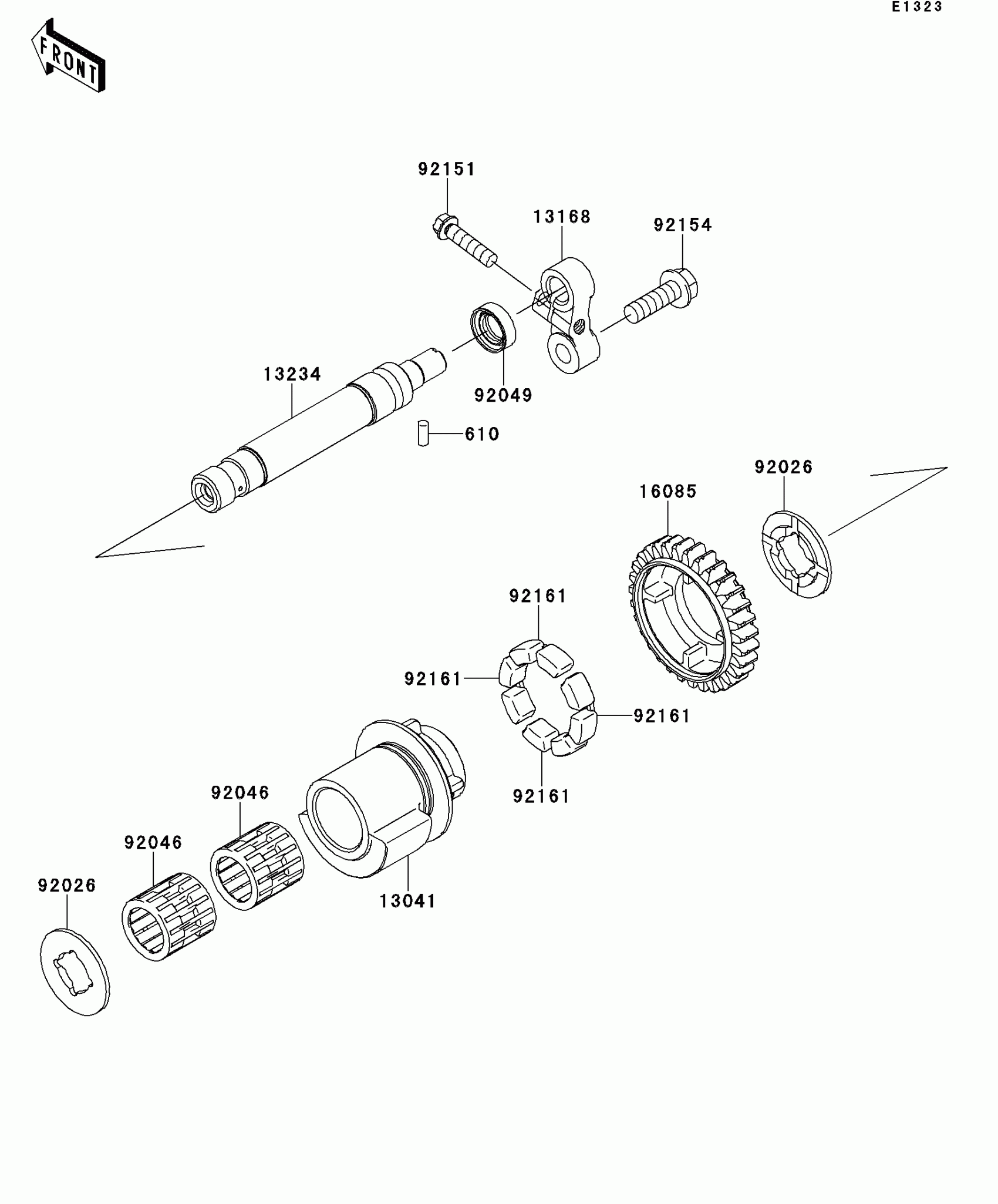

2013 Kawasaki Ninja® 1000 Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13041

BALANCER

13041-0028

1

$179.74

In stock

13168

LEVER

13168-0115

1

$50.34

In stock

13234

SHAFT-COMP

13234-0038

1

$137.40

In stock

16085

GEAR,BALANCER,31T

16085-0134

1

$163.93

In stock

92026

SPACER

92026-0082

1
Out of stock

92046

BEARING-NEEDLE

92046-1266

1
Out of stock

92049

SEAL-OIL,TC 12X22X7

92049-2204

1
Out of stock

92151

1

$2.06

In stock

92154

BOLT,FLANGED,8X25

92154-0413

1

$3.49

In stock

92161

DAMPER

92161-1055

1

$9.22

In stock

610

ROLLER,4X10

610A0410

1

$3.43

In stock
