2013 Kawasaki Ninja® 1000 Oil Pump Diagram

← All diagrams

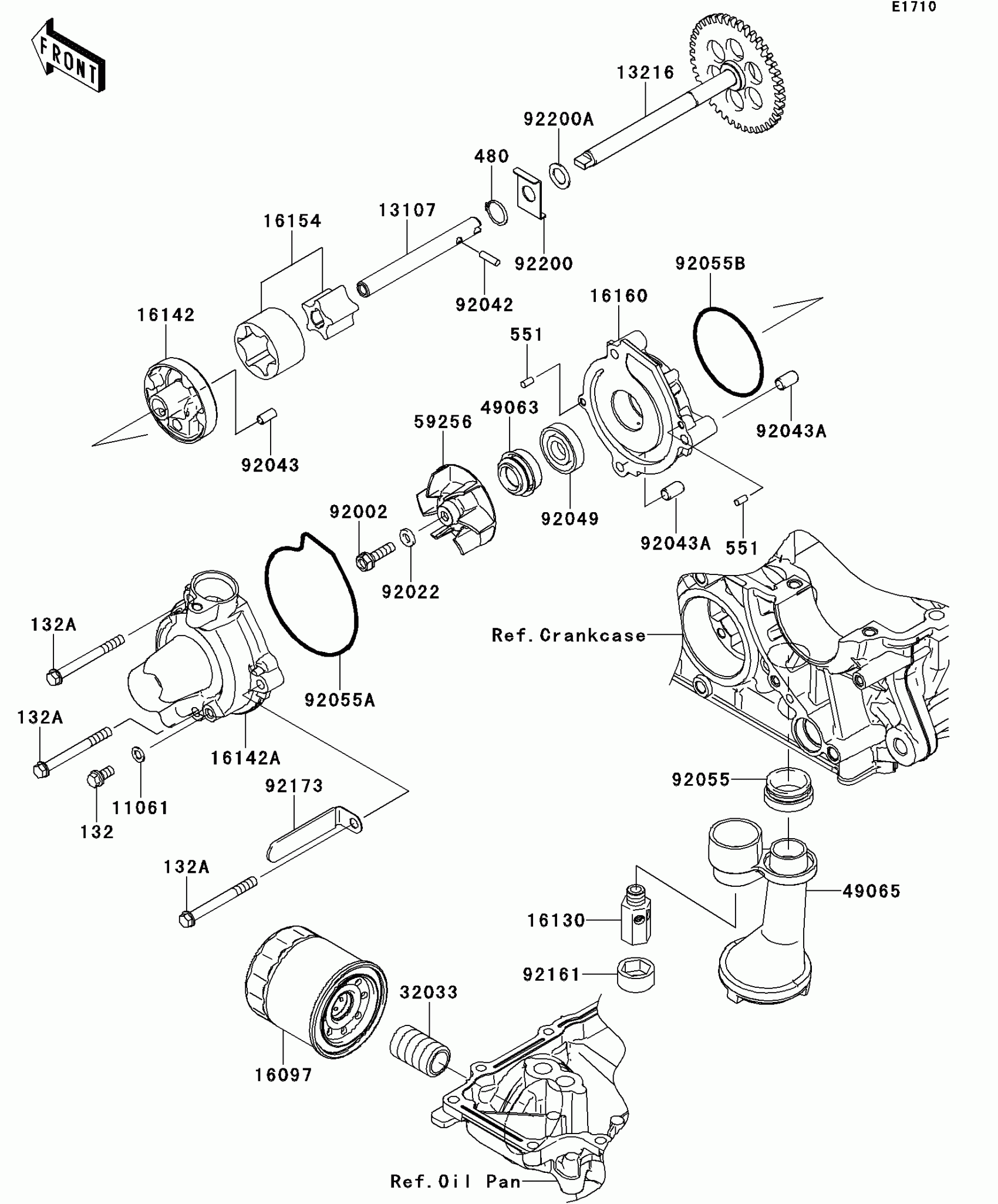

Find the part on the Oil Pump diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Ninja® 1000 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-0107

1

$2.12

In stock

13107

SHAFT

13107-0214

1

$30.20

In stock

13216

1

$122.40

In stock

16097

FILTER-ASSY-OIL

16097-0004

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-1058

1

$38.20

In stock

16142

COVER-PUMP

16142-0064

1

$50.58

In stock

16142A

COVER-PUMP

16142-0703

1

$124.90

In stock

16154

ROTOR-PUMP

16154-0057

1

$68.73

In stock

16160

BODY

16160-0702

1

$123.78

In stock

32033

PIPE,OIL FILTER

32033-1535

1

$10.27

In stock

49063

SEAL-MECHANICAL

49063-1055

1

$18.61

In stock

49065

FILTER-OIL

49065-0026

1

$32.36

In stock

59256

IMPELLER

59256-0555

1

$38.51

In stock

92002

BOLT,6X22

92002-1154

1

$3.72

In stock

92022

1

$3.13

In stock

92042

PIN,DOWEL,4X13.8

92042-030

1

$3.12

In stock

92043

PIN,4.2X6X12

92043-1262

1

$3.43

In stock

92043A

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92049

SEAL-OIL,SC 11 28.55 5

92049-1336

1
Out of stock

92055

RING-O,OIL FILTER

92055-1503

1

$7.55

In stock

92055A

1

$11.22

In stock

92055B

RING-O,59.6X2.4

92055-3018

1

$4.93

In stock

92161

DAMPER

92161-0070

1

$3.56

In stock

92173

CLAMP

92173-0923

1

$3.56

In stock

92200

WASHER

92200-0410

1
Out of stock

92200A

WASHER

92200-1009

1
Out of stock

132

1

$1.12

In stock

132A

1

$2.42

In stock

480

1

$0.99

In stock

551

PIN-DOWEL,4X8

551A0408

1

$0.80

In stock
