2013 Kawasaki Ninja® 1000 Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

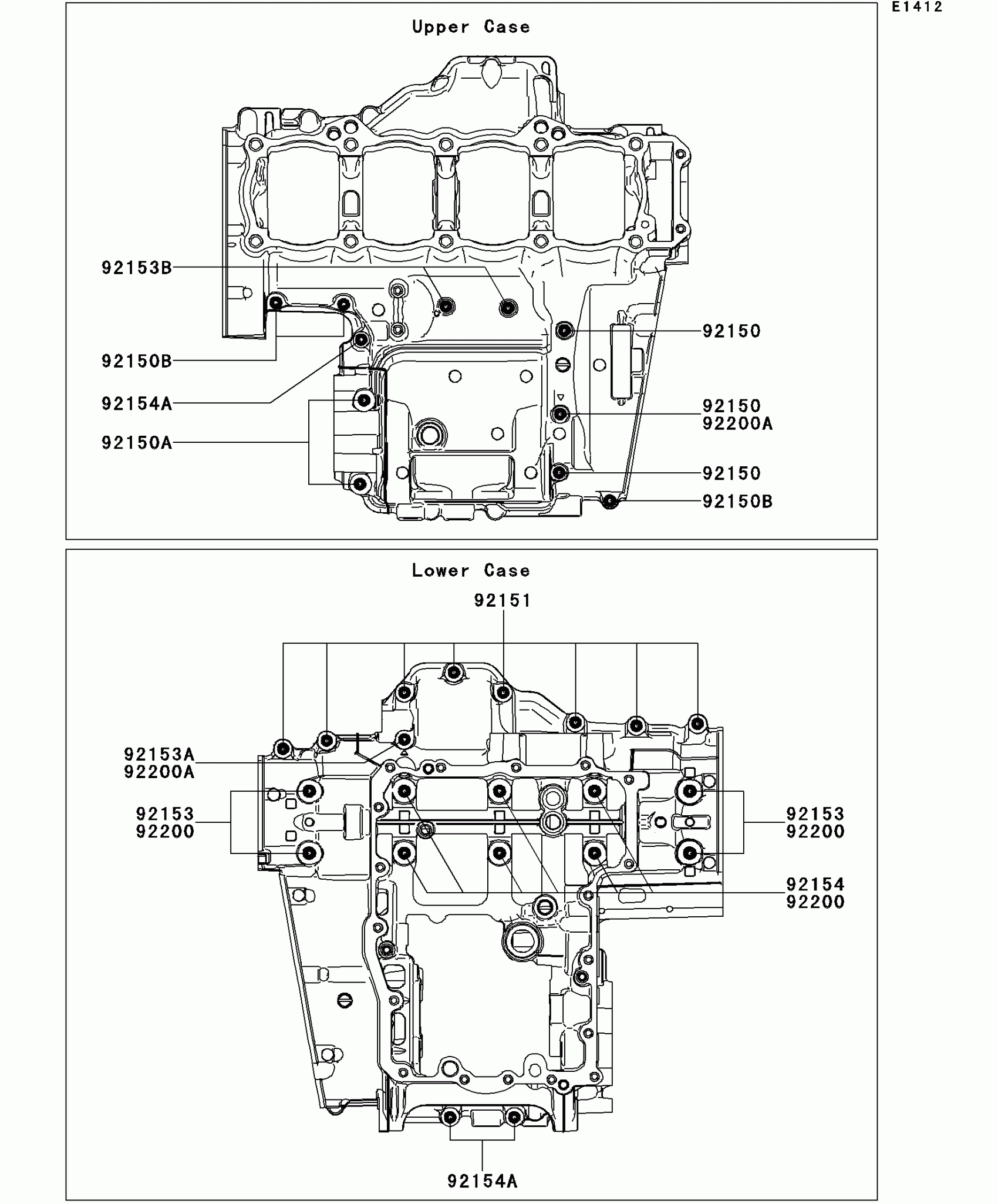

2013 Kawasaki Ninja® 1000 Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92150

BOLT,FLANGED,7X85

92150-1251

1

$10.63

In stock

92150A

BOLT,8X70

92150-1483

1

$7.36

In stock

92150B

BOLT,6X40

92150-1794

1

$2.03

In stock

92151

BOLT,FLANGED,7X45

92151-1539

1

$3.69

In stock

92153

BOLT,FLANGED,9X100

92153-0447

1
Out of stock

92153A

BOLT,FLANGED,7X60

92153-1045

1
Out of stock

92153B

BOLT,FLANGED,6X68

92153-1637

1

$4.47

In stock

92154

BOLT,FLANGED,9X90

92154-0248

1

$7.22

In stock

92154A

BOLT,FLANGED,7X50

92154-0372

1

$3.59

In stock

92200

WASHER,9.2X19X2.3

92200-0115

1
Out of stock

92200A

WASHER

92200-0556

1
Out of stock
