Muffler

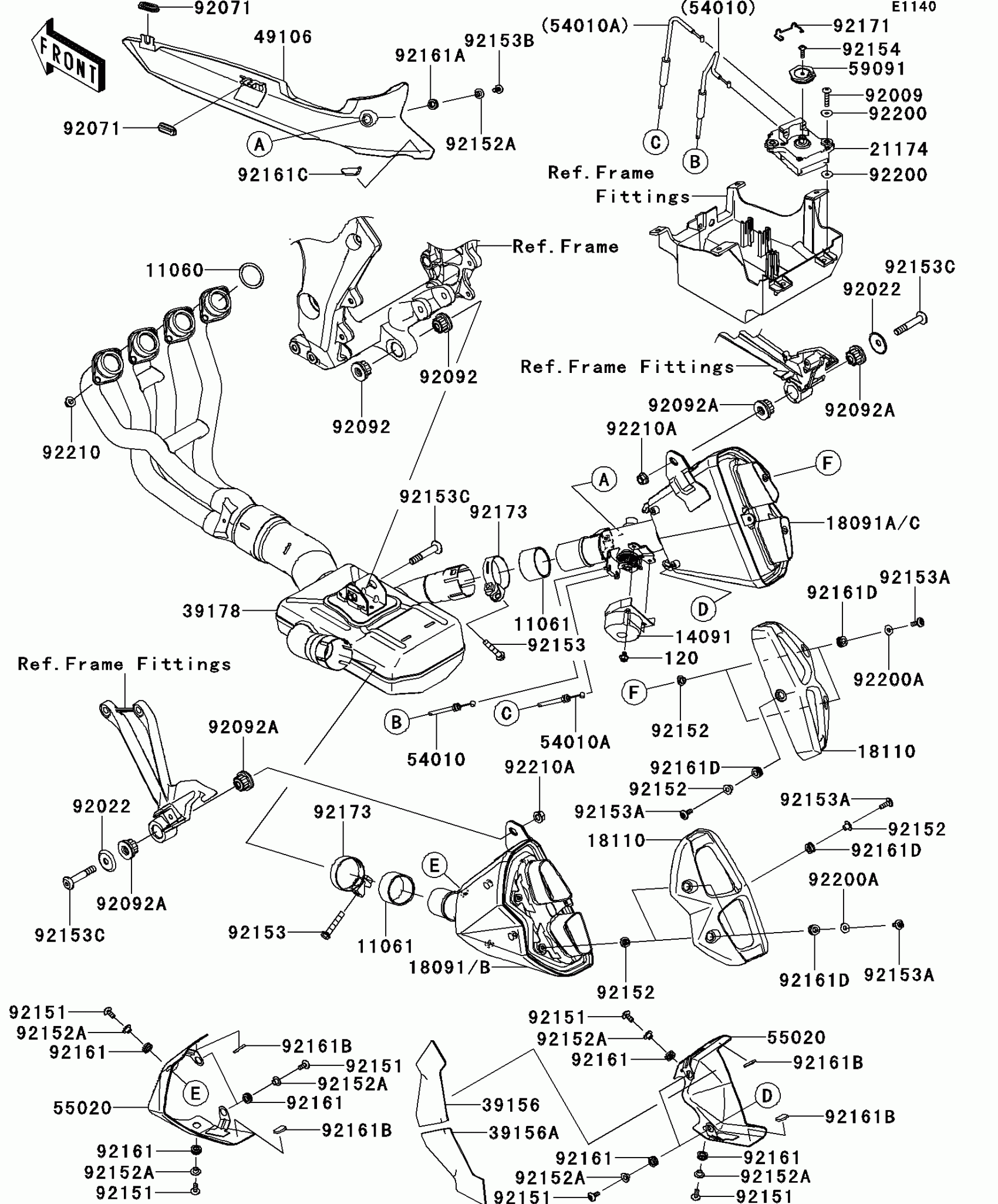

2013 Kawasaki Ninja® 1000 Muffler Diagram
Find the part on the Muffler diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
92009
SCREW,TAPPING,6X30
92009-1481
1
Out of stock
92022
WASHER
92022-289
1
Out of stock
92153
BOLT,8X45
92153-0702
1
Out of stock
92153A
BOLT,6X18
92153-0816
1
Out of stock
92153B
BOLT,SOCKET,6X16
92153-0817
1
Out of stock
92200
WASHER
92200-0078
1
Out of stock
92200A
WASHER,6.5X16X1.0
92200-3712
1
Out of stock
92210
NUT,8MM
92210-0076
1
Out of stock
92210A
NUT
92210-0568
1
Out of stock
