2013 Kawasaki Ninja® 1000 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2013 Kawasaki Ninja® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

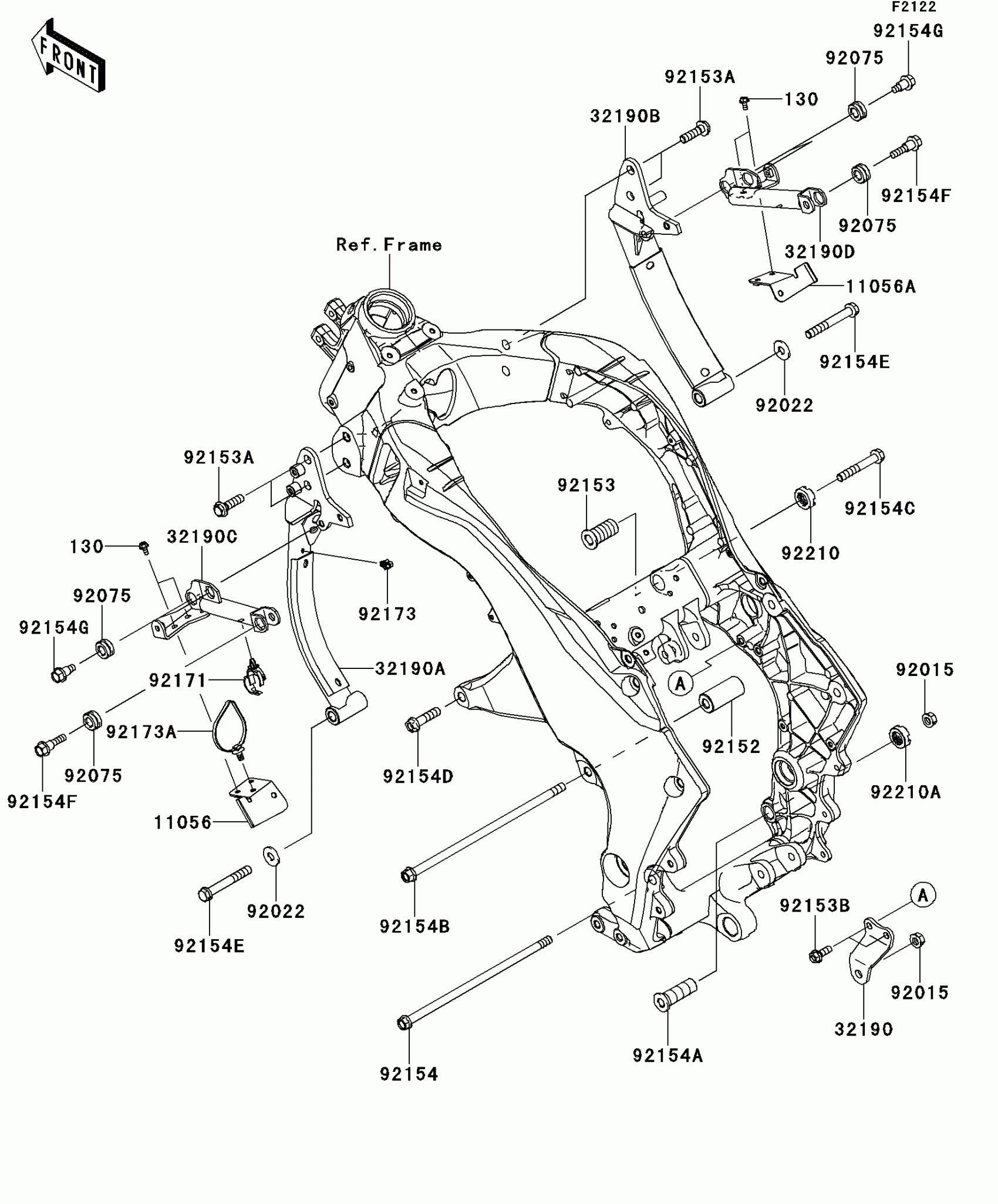

2013 Kawasaki Ninja® 1000 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

1

$8.12

In stock

11056A

1

$8.64

In stock

32190

1

$10.69

In stock

32190A

1

$171.98

In stock

32190B

1

$171.98

In stock

32190C

BRACKET-ENGINE,LH

32190-0582

1

$38.19

In stock

32190D

BRACKET-ENGINE,RH

32190-0583

1

$38.19

In stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92022

1

$2.59

In stock

92075

DAMPER

92075-1898

1

$3.72

In stock

92152

COLLAR,11X26X56.5

92152-0853

1

$14.78

In stock

92153

BOLT,SOCKET,20X43

92153-0488

1
Out of stock

92153A

BOLT,FLANGED,10X35

92153-0802

1
Out of stock

92153B

BOLT,FLANGED,8X20

92153-1554

1
Out of stock

92154

BOLT,FLANGED,10X255

92154-0266

1

$25.76

In stock

92154A

1

$29.09

In stock

92154B

BOLT,FLANGED,10X270

92154-0268

1

$29.36

In stock

92154C

BOLT,FLANGED,10X65

92154-0312

1

$6.10

In stock

92154D

BOLT,FLANGED,10X40

92154-0313

1

$4.44

In stock

92154E

BOLT,FLANGED,10X75

92154-0449

1

$10.29

In stock

92154F

BOLT,FLANGED,8X35

92154-0742

1

$10.22

In stock

92154G

BOLT,FLANGED,8X20

92154-0749

1

$9.68

In stock

92171

CLAMP,20MM DIA.

92171-0069

1

$2.29

In stock

92173

CLAMP

92173-0215

1

$1.73

In stock

92173A

CLAMP

92173-0742

1

$7.29

In stock

92210

NUT,20MM

92210-0591

1
Out of stock

92210A

NUT,18MM

92210-1203

1
Out of stock

130

BOLT-FLANGED,5X10

130BB0510

1

$4.19

In stock
