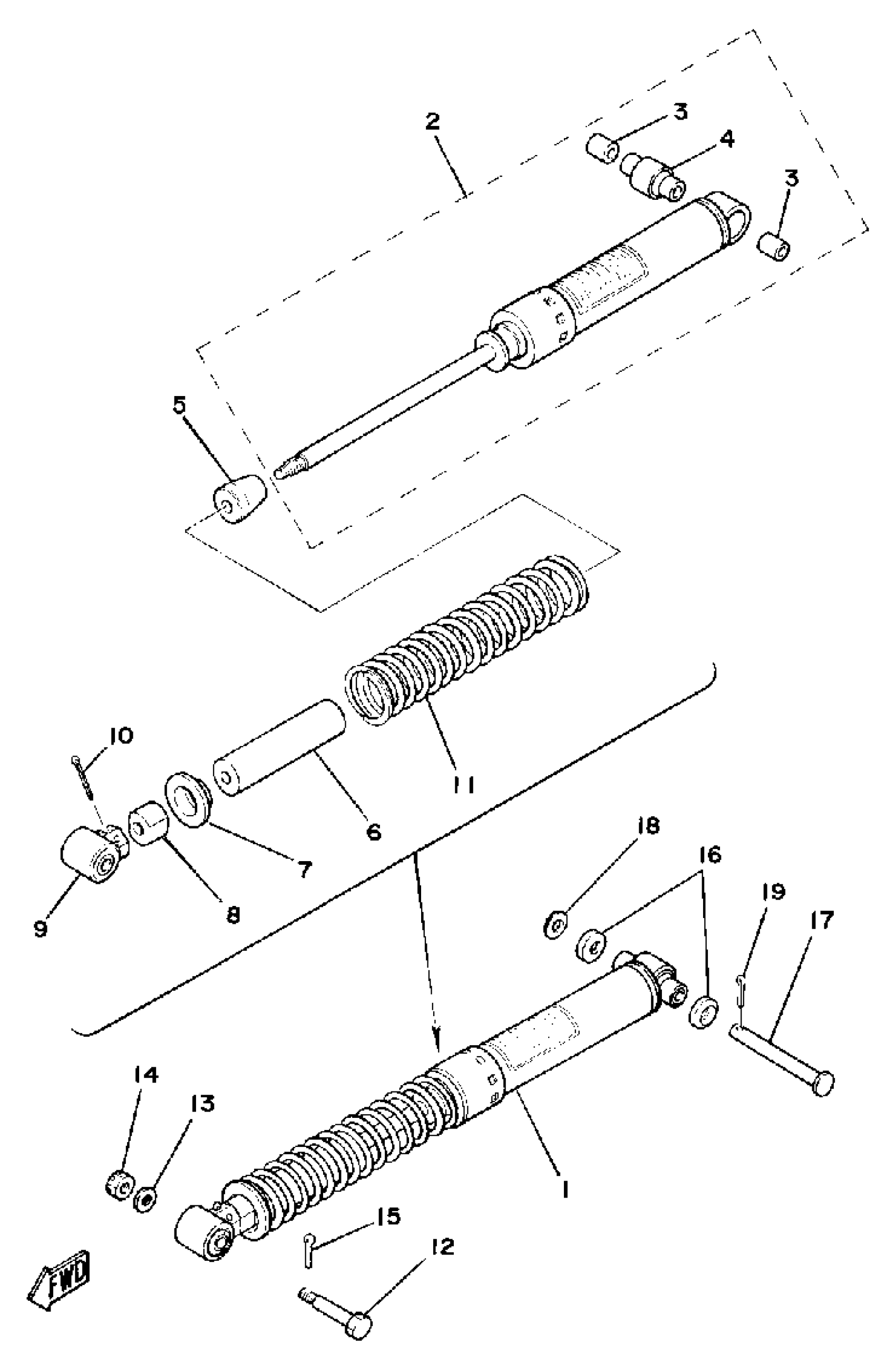

Find the part on the Rear Suspension diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha MX175 (MX175H) Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHK/ABS ASSEMBLY, REAR

(3J0-22210-00-00)

1
Out of stock

2

DAMPER SUB-ASSEMBLY.

(3J0-22401-00-00)

1
Out of stock

3

BUSH, SOLID (1M1)

90380-12051-00

1
Out of stock

4

.. BUSH, SHOCK ABS LWR

1W1-22226-00-00

1
Out of stock

5

BUMP, STOP

(3J0-22493-00-00)

1
Out of stock

6

SLEEVE, ROD

(2N4-22496-00-00)

1
Out of stock

7

GUIDE, SPRING 1

(2N4-22214-00-00)

1
Out of stock

8

SEAT, SPRING UPPER

(2N4-22213-00-00)

1
Out of stock

9

BRACKET, UPPER

(1M1-22219-01-00)

1
Out of stock

10

PIN, COTTER (AM5)

91490-30045-00

1
Out of stock

11

SPRING, COMPRESSION

(90501-90554-00)

1
Out of stock

12

BOLT (1M1)

90109-10453-00

—

$15.92

In stock

13

1

$3.00

In stock

14

NUT (682)

95380-10700-00

1

$5.78

In stock

15

PIN, COTTER

91490-20025-00

1

$1.31

In stock

16

COVER, THRUST

1W1-22128-00-00

—

$17.09

In stock

17

PIN,CLEVIS

90240-12059-00

1
Out of stock

18

WASHER, PLATE(663)

92990-12600-00

—

$6.68

In stock

19

PIN, COTTER

91490-30030-00

—

$7.15

In stock
