1981 Yamaha MX175 (MX175H) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

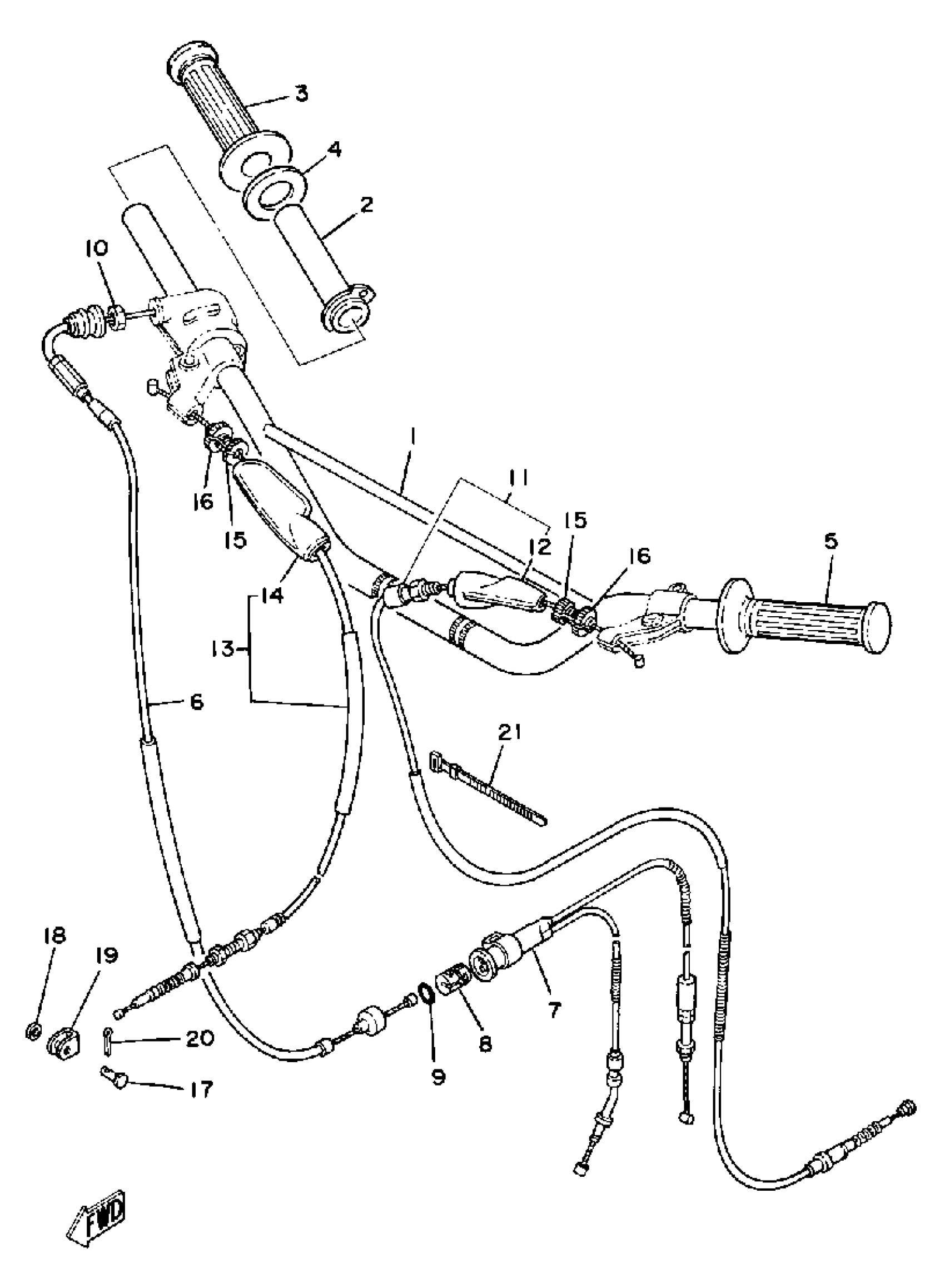

1981 Yamaha MX175 (MX175H) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE

2A8-26111-00-00

1

$113.06

In stock

2

TUBE, GUIDE.

434-26243-00-00

1
Out of stock

3

GRIP (R.H)

1A0-26242-01-00

1
Out of stock

4

RING, LEAF

1M1-26249-01-00

1
Out of stock

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

6

CABLE, THROTTLE 1

2A6-26311-00-00

1
Out of stock

7

CABLE, THROTTLE 2

2A6-26312-00-00

1
Out of stock

8

PIECE, CONNECTING

1M1-26263-00-00

1
Out of stock

9

O-RING (260)

93210-10118-00

1

$5.86

In stock

10

NUT, HEXAGON

90170-10038-00

1
Out of stock

11

CABLE, CLUTCH

2A6-26335-01-00

1
Out of stock

12

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

13

CABLE, BRAKE

2K5-26341-00-00

1
Out of stock

14

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

15

BOLT

90123-08002-00

1

$8.93

In stock

16

NUT

90179-08030-00

—

$3.78

In stock

17

PIN W/HOLE 307181180000

90240-08013-00

—

$5.10

In stock

18

WASHER, PLATE 1562722600

90201-08083-00

—
Out of stock

19

JOINT, WIRE

156-26347-00-00

—

$7.51

In stock

20

PIN, COTTER

91490-20025-00

—

$1.31

In stock

21

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
