1981 Yamaha MX175 (MX175H) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

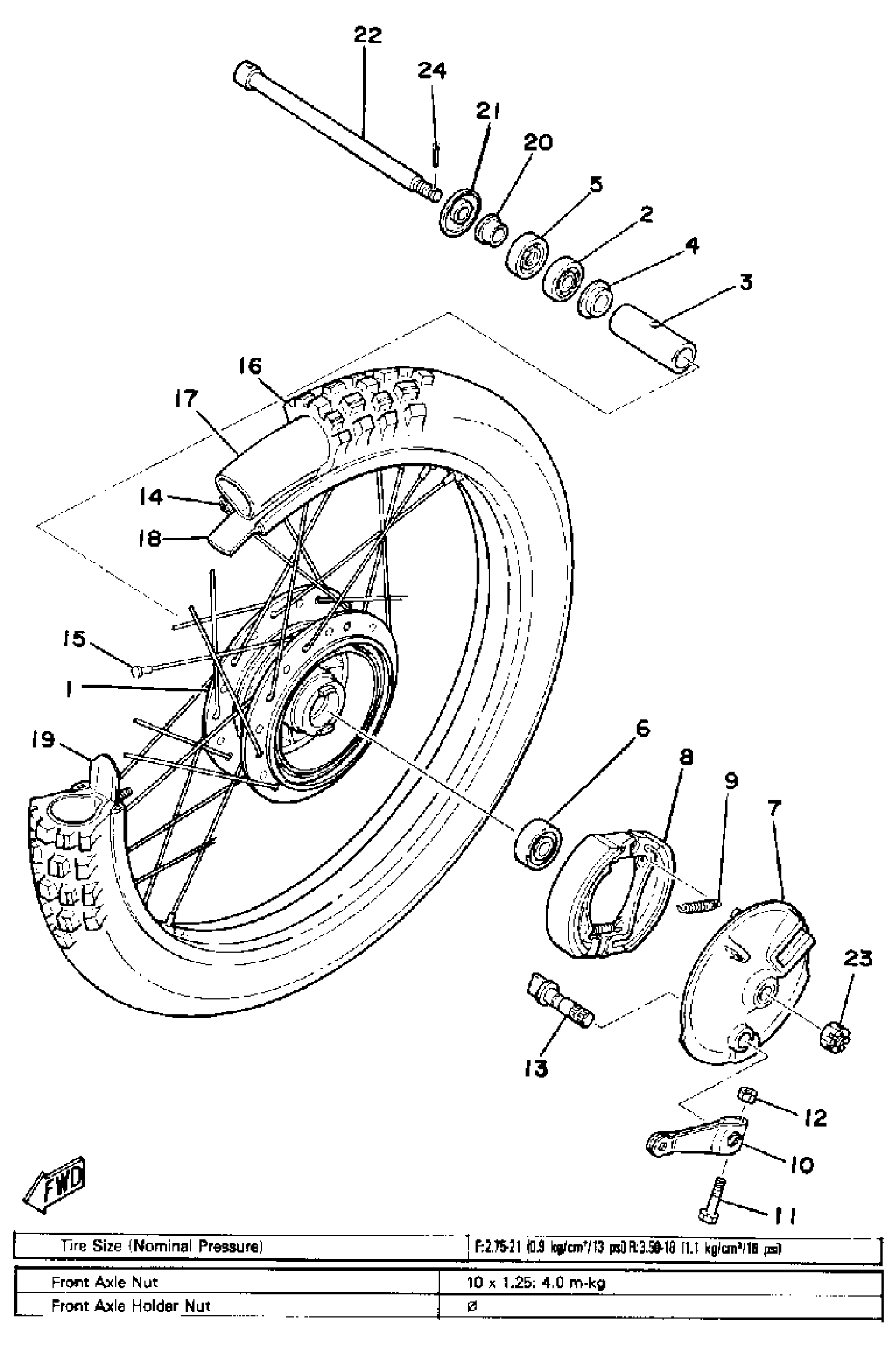

1981 Yamaha MX175 (MX175H) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

248-25111-00-98

—
Out of stock

2

BEARING

93306-30102-00

1
Out of stock

3

SPACER

90560-12138-00

—

$12.83

In stock

4

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

5

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

6

BEARING

93306-30102-00

1
Out of stock

7

PLATE, BRAKE SHOE

2K5-25121-01-98

1
Out of stock

8

BRAKESHOE SET

22F-W2534-00-00

1
Out of stock

9

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

10

LEVER, CAMSHAFT 1 (401-25155-00)

401-25155-11-00

1
Out of stock

11

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

14

RIM 1.60X21

94416-21223-00

1
Out of stock

15

SPOKE SET, FRONT

3M2-25104-00-00

1
Out of stock

16

CS 275X21 C-755-1

(94127-21550-00)

1
Out of stock

17

TUBE

(94227-21144-00)

1
Out of stock

18

BAND, RIM (2A6)

94330-21084-00

—

$13.89

In stock

19

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

20

COLLAR (462)

90387-12265-00

—

$12.85

In stock

21

COVER, HUB DUST

2K5-25118-00-00

—
Out of stock

22

SHAFT, WHEEL

353-25381-00-00

—

$22.37

In stock

23

NUT 3532518200

90171-10004-00

—

$5.32

In stock

24

PIN, COTTER

91490-20025-00

—

$1.31

In stock
