1981 Yamaha MX175 (MX175H) Rear ARM Diagram

← All diagrams

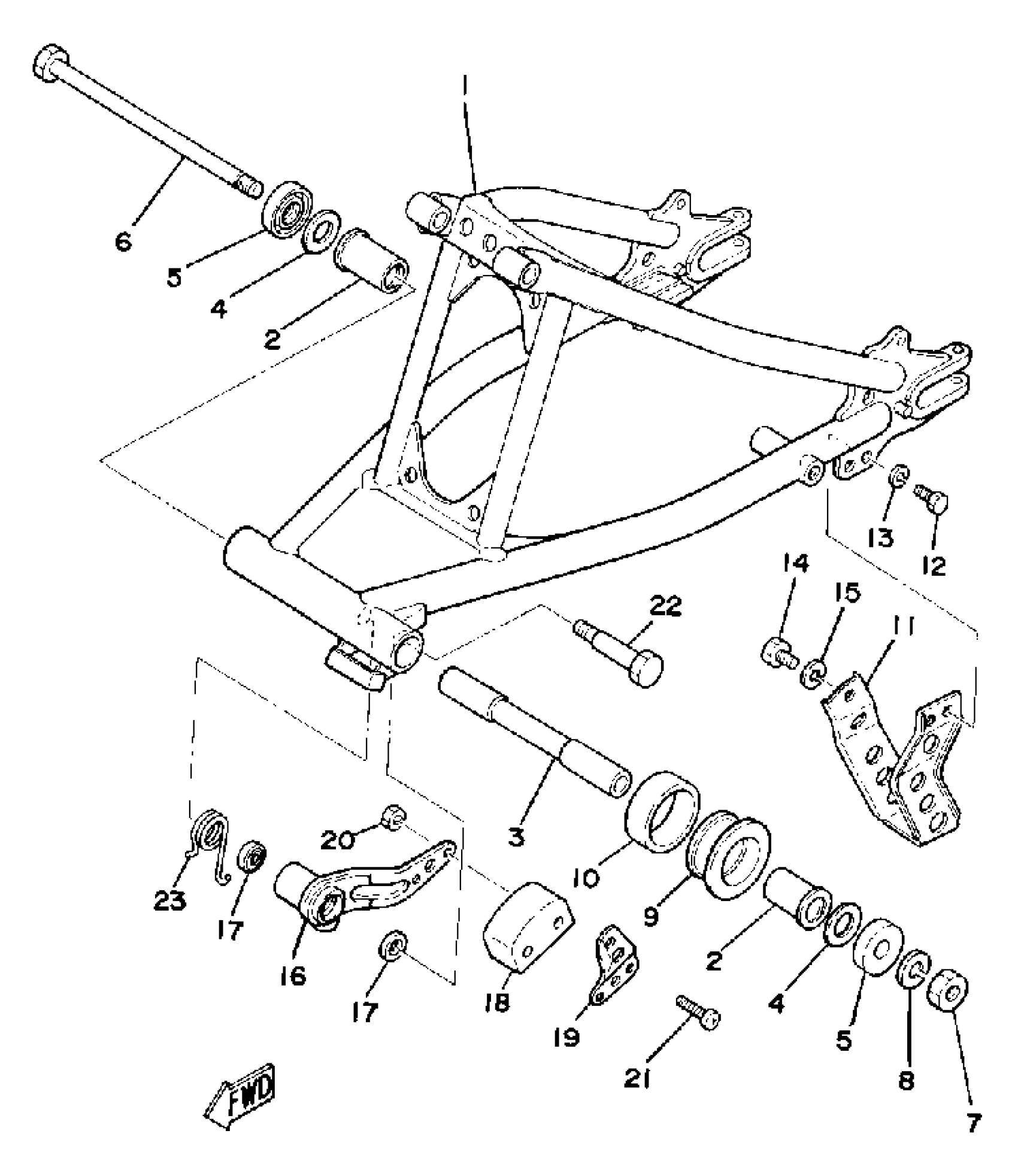

Find the part on the Rear ARM diagram for your 1981 Yamaha MX175 (MX175H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha MX175 (MX175H) Rear ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

(3M2-22110-01-33)

1
Out of stock

2

BUSHING (401-22123-00)

90386-18028-00

1

$21.40

In stock

3

BUSH 2

18G-22124-00-00

—

$41.17

In stock

4

SHIM

401-22127-00-00

1

$6.62

In stock

5

COVER, THRUST 1

401-22128-01-00

1

$25.49

In stock

6

SHAFT, PIVOT

2N4-22141-00-00

1
Out of stock

7

NUT, SELF-LOCKING(1KH)

90185-12134-00

1

$10.11

In stock

8

YBS67-12 WASHER,SPRING

92990-12100-00

1

$6.68

In stock

9

SEAL, GUARD

2A6-22151-00-00

1

$7.37

In stock

10

SEAL, GUARD 2

2A6-22152-00-00

1

$5.26

In stock

11

GUARD, CHAIN

2A6-22318-00-00

—
Out of stock

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BOLT(62E)

97013-08012-00

—

$2.48

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

ARM, TENSIONER

2A6-22179-01-00

—
Out of stock

17

OIL SEAL (2K8)

93109-14021-00

—

$10.60

In stock

18

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

1
Out of stock

19

GUIDE, CHAIN

1W1-22187-00-00

—
Out of stock

20

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

21

SCREW, PAN

98507-05035-00

—

$6.69

In stock

22

BOLT (1J4)

90109-10483-00

—

$8.28

In stock

23

SPRING, TORSION (1J4)

90508-35350-00

—
Out of stock
