1980 Yamaha MX100 (MX100G) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1980 Yamaha MX100 (MX100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

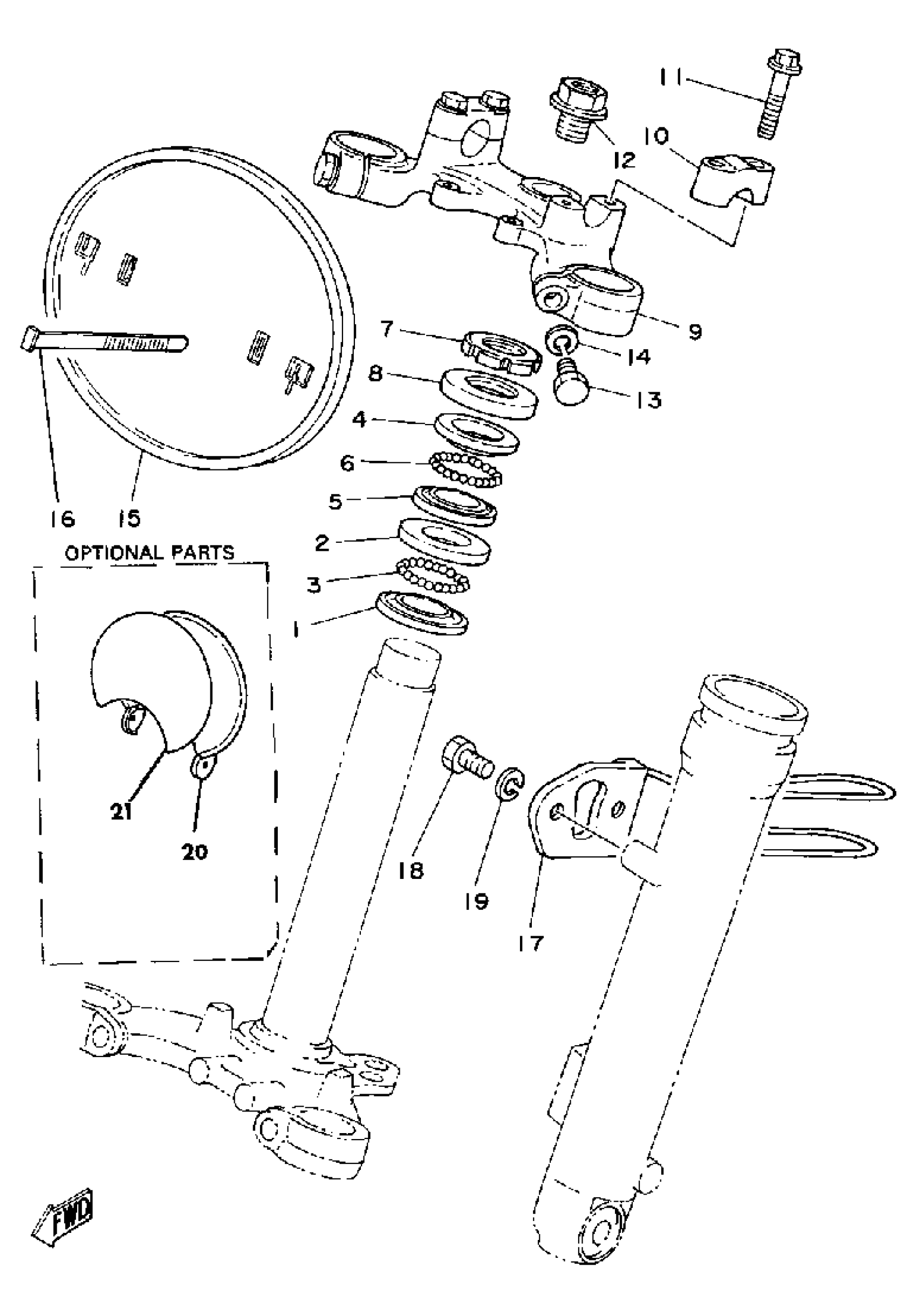

1980 Yamaha MX100 (MX100G) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

3

BALL

93501-04011-00

1
Out of stock

4

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

5

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

6

BALL

93503-16003-00

1

$2.14

In stock

7

NUT

90179-25004-00

1

$20.78

In stock

8

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

9

CROWN, HANDLE

354-23435-00-33

1
Out of stock

10

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

11

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

12

1

$3.91

In stock

13

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

. PLATE, NUMBER

3R0-23485-00-00

1
Out of stock

16

. BAND

2X4-23489-00-00

1
Out of stock

17

HOLDER, CABLE 1

1T9-23318-00-00

1
Out of stock

18

BOLT (661)

97013-06012-00

—

$4.71

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

PLATE, NUMBER

1W2-23485-00-00

1
Out of stock

21

EMBLEM

1W2-23395-00-00

1
Out of stock
