1980 Yamaha MX100 (MX100G) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1980 Yamaha MX100 (MX100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

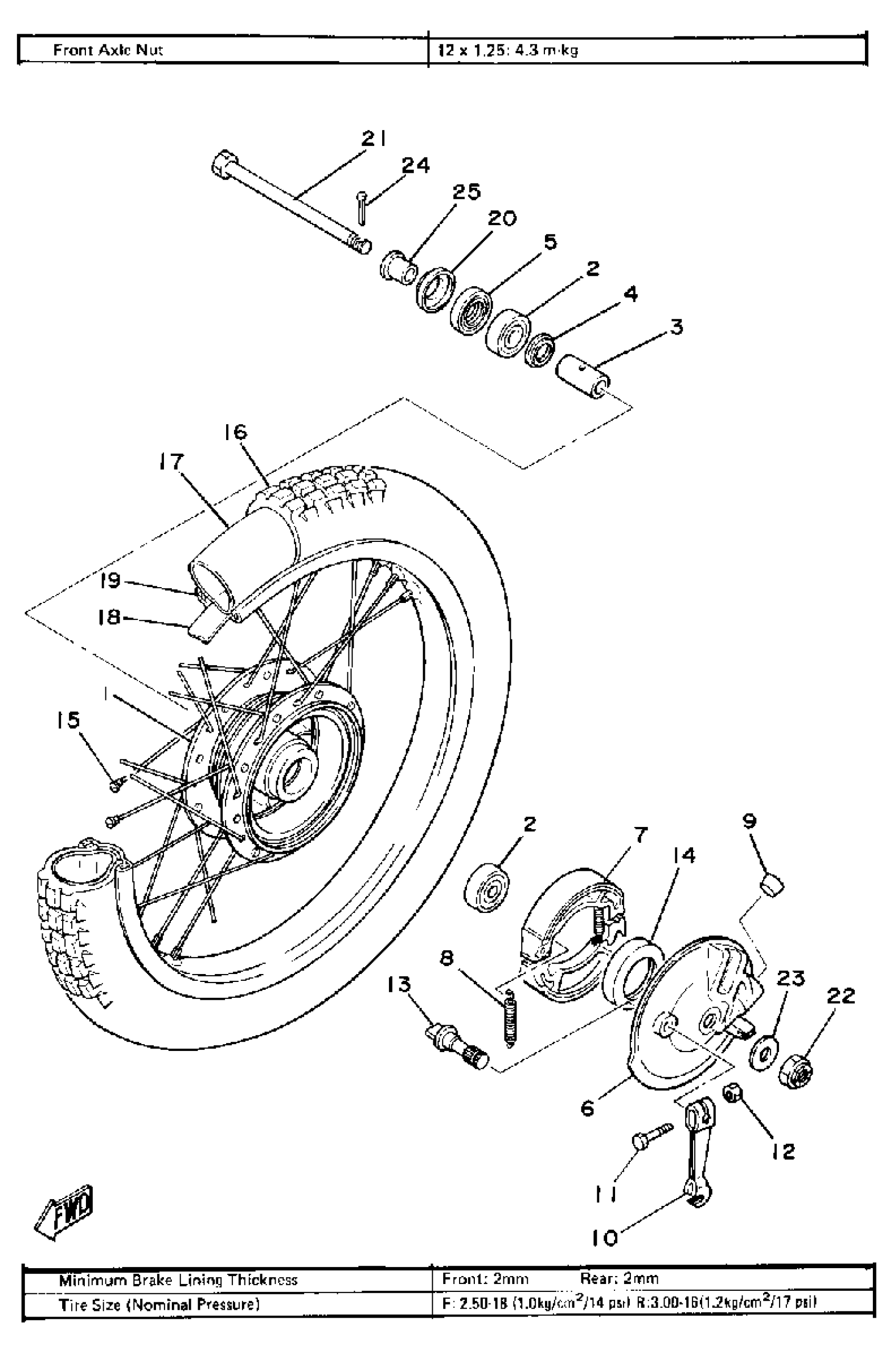

1980 Yamaha MX100 (MX100G) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

248-25111-00-98

—
Out of stock

2

BEARING

93306-30102-00

1
Out of stock

3

SPACER

90560-12138-00

—

$12.83

In stock

4

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

5

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

6

PLATE, BRAKE SHOE

3M1-25121-00-98

1
Out of stock

7

BRAKE SHOE KIT

2JL-W253E-20-00

—

$25.53

In stock

8

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

9

PLUG 288251390000

90338-18014-00

—

$7.57

In stock

10

LEVER, CAMSHAFT 1

5H0-25155-00-00

1
Out of stock

11

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

14

SEAL,OIL

93105-47007-00

1
Out of stock

15

SPOKE SET, FRONT

276-25104-40-00

1
Out of stock

16

CS 250X18 C-755-1

(94125-18570-00)

1
Out of stock

17

TUBE (5H5)

94225-18194-00

—

$31.80

In stock

18

BAND, RIM

94325-18059-00

1
Out of stock

19

RIM (1.40-18)

94414-18545-00

—

$107.12

In stock

20

COVER HUB DUST

481-25118-01-00

—

$6.31

In stock

21

SHAFT, WHEEL (462)

90102-12015-00

—

$14.29

In stock

22

NUT,CASTLE

90171-12058-00

1
Out of stock

23

WASHER, PLATE

90201-12047-00

—

$7.54

In stock

24

PIN, COTTER

91490-30030-00

—

$7.15

In stock

25

COLLAR

90387-12616-00

1
Out of stock
