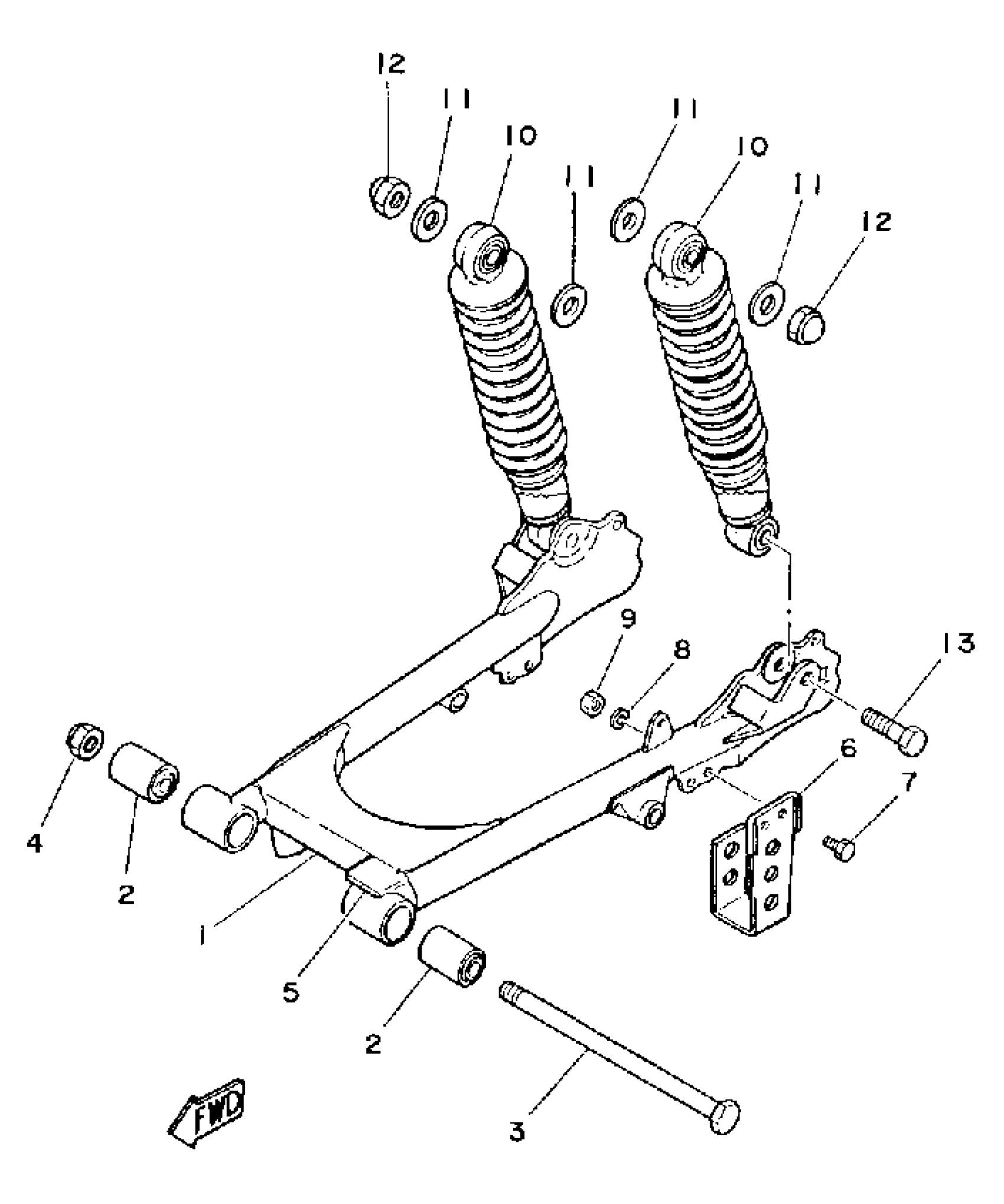

Yamaha MX100G (MX100) 1980 REAR ARM - SUSPENSION Diagram

#

Description
Price

1

REAR ARM

1T9-22110-01-33

Unavailable

2

BUSH 1

276-22123-00-00

$30.80

3

AXLE,WHEEL

2J5-25381-01-00

Unavailable

4

NUT, NYLON

95717-12300-00

$5.76

5

SEAL, GUARD

183-22151-00-00

$7.40

6

GUARD, CHAIN

492-22153-00-33

Unavailable

7

BOLT(8CP)

97017-06014-00

$4.91

8

WASHER, SPRING

92995-06100-00

$2.95

9

NUT, HEXAGON

95380-06600-00

$4.11

10

SHK/ABS ASY,REAR

3UL-22210-00-33

Unavailable

11

WASHER, PLATE (4N0)

90201-126A7-00

$5.86

12

NUT CROWN(663)

95380-12800-00

Unavailable

13

BOLT(M35)

90101-10776-00

Unavailable
