1980 Yamaha MX100 (MX100G) Rear Wheel Diagram

← All diagrams

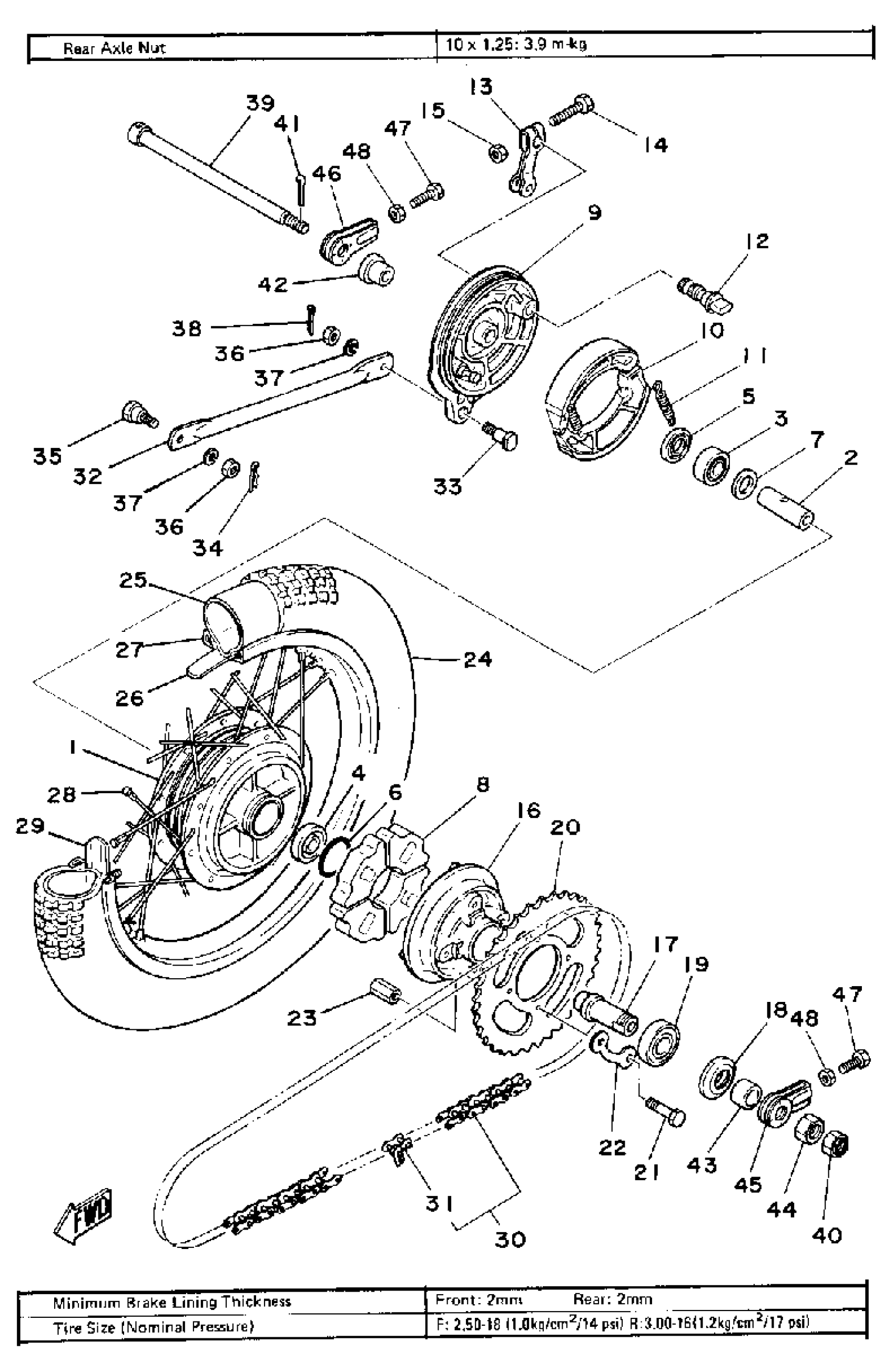

Find the part on the Rear Wheel diagram for your 1980 Yamaha MX100 (MX100G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha MX100 (MX100G) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

99999-02213-00

1
Out of stock

2

SPACER

90560-12145-00

1

$17.22

In stock

3

BEARING

93306-30102-00

1
Out of stock

4

BRG.

93306-30101-00

1

$31.58

In stock

5

OIL SEAL (21X37X7-102)

93104-21016-00

1
Out of stock

6

O-RING (102)

93210-41041-00

1

$5.86

In stock

7

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

8

DAMPER, CLUTCH

304-25364-01-00

1

$21.12

In stock

9

PLATE, BRAKE SHOE

1M3-25321-02-38

—

$70.18

In stock

10

BRAKE SHOE KIT

2JL-W253E-20-00

—

$25.53

In stock

11

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

12

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

13

LEVER, CAMSHAFT

5DV-25355-00-00

1
Out of stock

14

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

16

CLUTCH, HUB

296-25366-01-33

—
Out of stock

17

SHAFT, SPROCKET

167-25387-00-00

—

$47.57

In stock

18

OIL SEAL (30X42X8-102)

93106-30004-00

—

$10.98

In stock

19

BEARING(3BN)

93306-00438-00

—

$32.22

In stock

20

SPROCKET, DRVN 49T

13M-25449-20-00

1
Out of stock

20

SPROCKET, DRIVEN (48T)

2U2-25448-11-00

—
Out of stock

20

SPROCKET,DRVN47T

4U5-25447-10-00

1
Out of stock

21

BOLT(1AJ)

90101-08672-00

—

$2.69

In stock

22

WASHER

4AW-25412-00-00

—

$4.24

In stock

23

NUT(3KX)

90179-08639-00

—

$7.95

In stock

24

TIRE (3.00-16)

94130-16368-00

1
Out of stock

25

TUBE (3.00-16)

94230-16075-00

1
Out of stock

26

BAND, RIM

94330-16058-00

—

$18.18

In stock

27

RIM (1.60-16)

94416-16003-00

—

$169.42

In stock

28

SPOKE SET

538-25304-10-00

—
Out of stock

29

SPACER, BEAD

5X2-25394-00-00

—

$42.62

In stock

30

CHAIN, DRIVE

9Y580-52103-00

1
Out of stock

31

. JOINT, CHAIN

94600-03001-00

1
Out of stock

32

BAR, TENSION

1T9-25371-00-00

1
Out of stock

33

BOLT 1022537300

90109-08183-00

—

$6.18

In stock

34

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

35

BOLT (183-25378-00)

90109-08368-00

—

$7.00

In stock

36

. NUT

95380-08700-00

1

$3.07

In stock

37

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

38

PIN, COTTER

91490-20025-00

—

$1.31

In stock

39

AXLE, WHEEL

390-25381-01-00

1
Out of stock

40

NUT 3532518200

90171-10004-00

—

$5.32

In stock

41

PIN, COTTER

91490-20025-00

—

$1.31

In stock

42

COLLAR 195253830000

90387-12102-00

—
Out of stock

43

COLLAR 167253860000

90387-18144-00

—
Out of stock

44

NUT, HEXAGON

90170-18165-00

—

$7.82

In stock

45

PULLER, CHAIN(L.H)

241-25388-00-00

—

$30.49

In stock

46

PULLER, CHAIN

241-25389-10-00

—

$32.18

In stock

47

BOLT HEXAGON 167253790000

90101-06016-00

—

$6.37

In stock

48

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
