2002 Ski-Doo MX Z 800 Rev Rewind Starter Diagram

← All diagrams

Find the part on the Rewind Starter diagram for your 2002 Ski-Doo MX Z 800 Rev, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

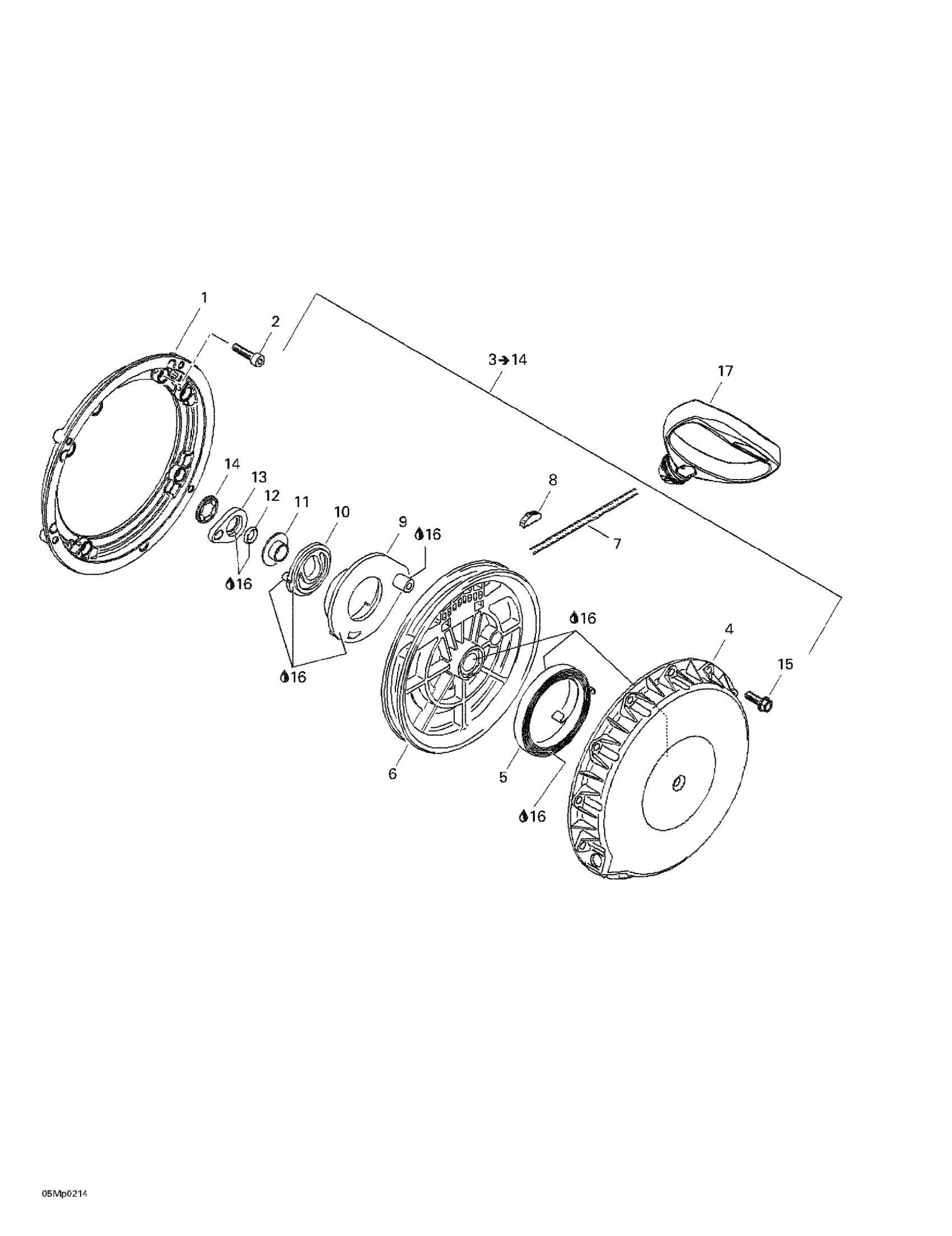

2002 Ski-Doo MX Z 800 Rev Rewind Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

Flange Connector

420810868

1

$86.12

In stock

2

Socket Head Screw M6 x 16

420241237

4
Out of stock

3

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

1
Out of stock

4

Starter Housing

420910256

1

$89.20

In stock

5

Rewind Spring

420939115

1
Out of stock

6

Rope Sheave

420852285

—
Out of stock

7

Was 412500100 Rope-Starter

219704403

1
Out of stock

8

Key Clamp

420852070

1
Out of stock

9

Pawl

420852633

1

$32.28

In stock

10

PAWL LOCK - Call your local BRP dealership

420852305

—
Out of stock

11

Stage Sleeve

420847926

1
Out of stock

12

O-Ring

420250400

1
Out of stock

13

Lock Ring

420852520

1
Out of stock

14

Locking Element

420845560

1
Out of stock

15

Torx Flange Screw M6 X 20

420441386

4
Out of stock

16

Molykote PG 54, 10 g

420899763

1
Out of stock

17

Starter Grip

572084400

1
Out of stock
