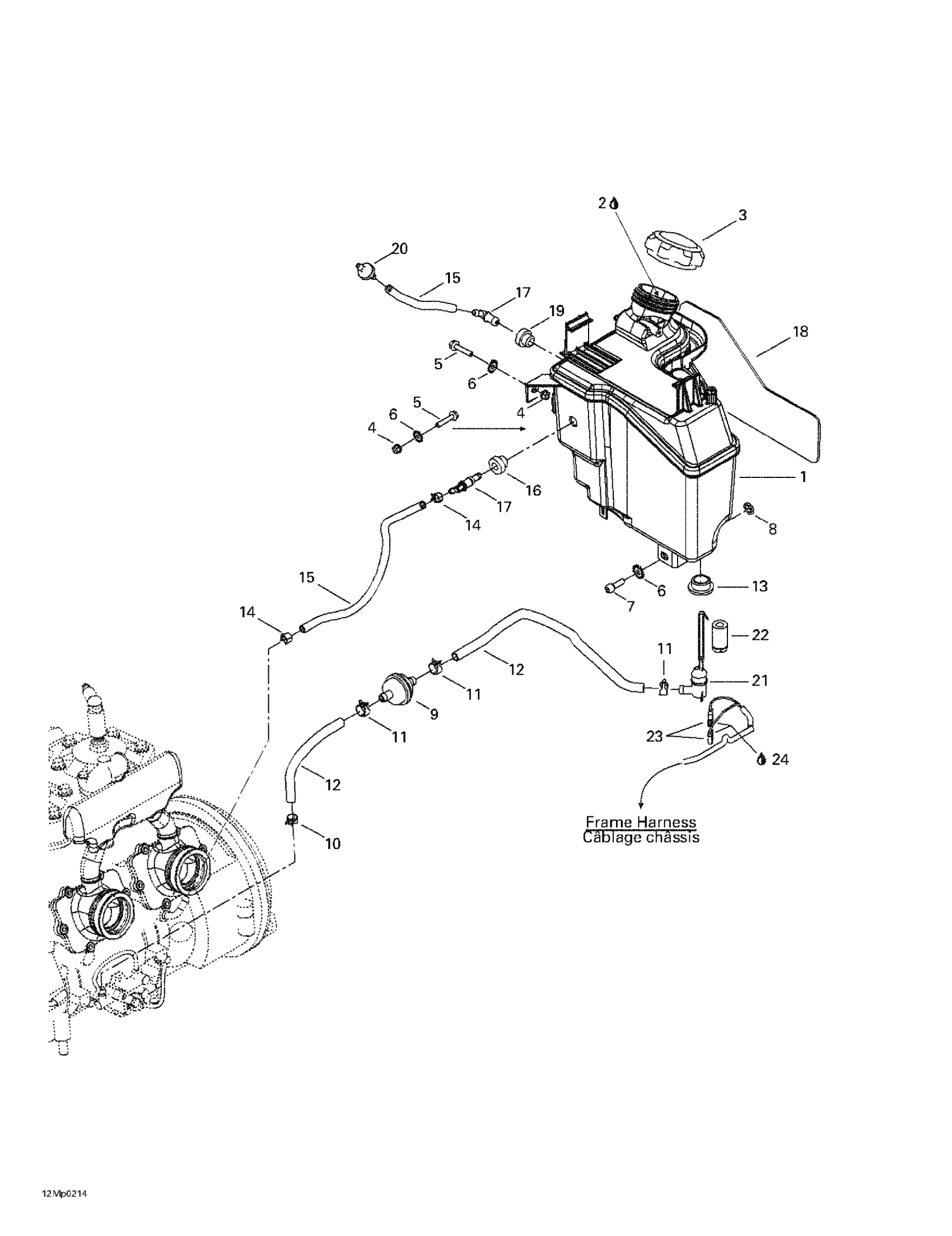

Ski-Doo MX Z 800 Rev, 2002 Oil Tank Diagram

#

Description
Price

1

Oil Tank

519000029

Unavailable

2

OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.

293600120

Unavailable

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

6

Lock Washer Serrated M6

250200041

$0.92

7

Socket Head Screw M6 X 20

205062044

$1.07

8

Push Nut

732610072

$1.72

9

Filter

414536500

$3.25

10

Spring Clamp

414420700

$0.68

11

Spring Clamp

414415200

$0.83

12

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

13

Insulating Ring

570023000

$4.62

14

Spring Clamp

414554800

$0.83

15

Polyurethane Hose 10000Mm Long

219704410

$46.12

16

Grommet

709200285

$7.09

17

Male Connector

414580700

$3.38

18

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

19

Grommet

513032908

$8.74

20

Check Valve

275500398

$8.57

21

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

22

Float

414681900

Unavailable

23

Female Terminal

409010300

$4.12

24

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66
