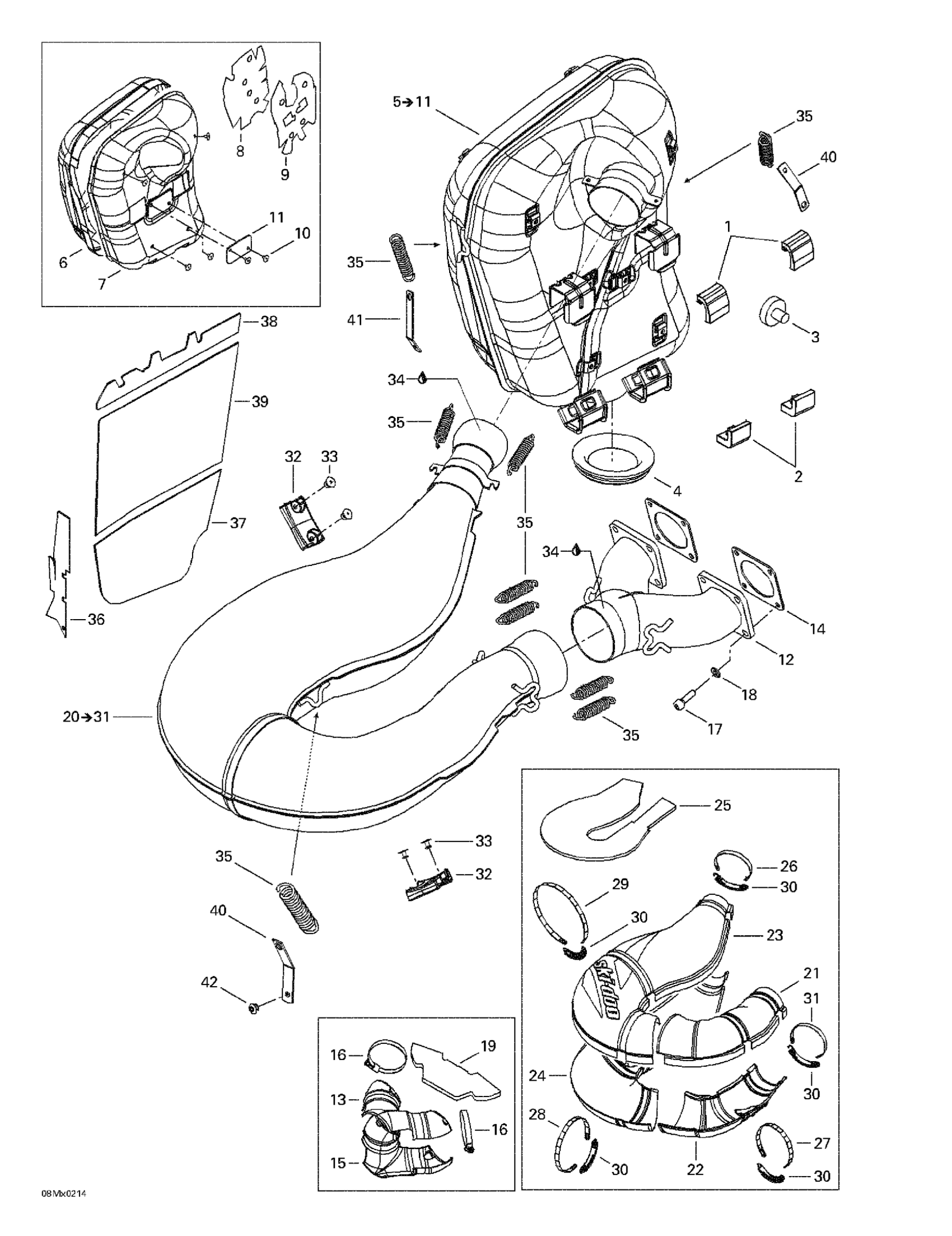

Ski-Doo MX Z 800 Rev, 2002 Exhaust System Diagram
#
Description
Price
2
Lower Stopper
514053373
Unavailable
4
Exhaust Grommet
514053394
Unavailable
5
Muffler Ass'y | Includes 5 - 11.
514053085
Unavailable
7
LH Heat Shield
514053101
Unavailable
8
RH Insulating Wool
514053102
Unavailable
9
RH ISOLATING WOOL - Call your local BRP dealership
514053103
Unavailable
11
Reinforcement
514053429
Unavailable
12
Exhaust Manifold
420973712
Unavailable
13
Upper Enveloppe
514053282
Unavailable
14
Gasket
420931850
Unavailable
15
Lower Enveloppe
514053283
Unavailable
19
Insulating Wool
514053284
Unavailable
20
Calibrated Tube Ass'y | Includes 20 - 31.
514053252
Unavailable
21
Upper Front Enveloppe
514053111
Unavailable
22
Lower Front Enveloppe
514053112
Unavailable
25
Insulating Wool
514053113
Unavailable
30
Spring
414851600
Unavailable
33
Pop Rivet 3/16"
390406500
Unavailable
34
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
36
Reflection Sheet
514053114
Unavailable
37
Reflection Sheet
514053115
Unavailable
38
Reflection Sheet
514053519
Unavailable
39
Reflection Sheet
514053520
Unavailable
