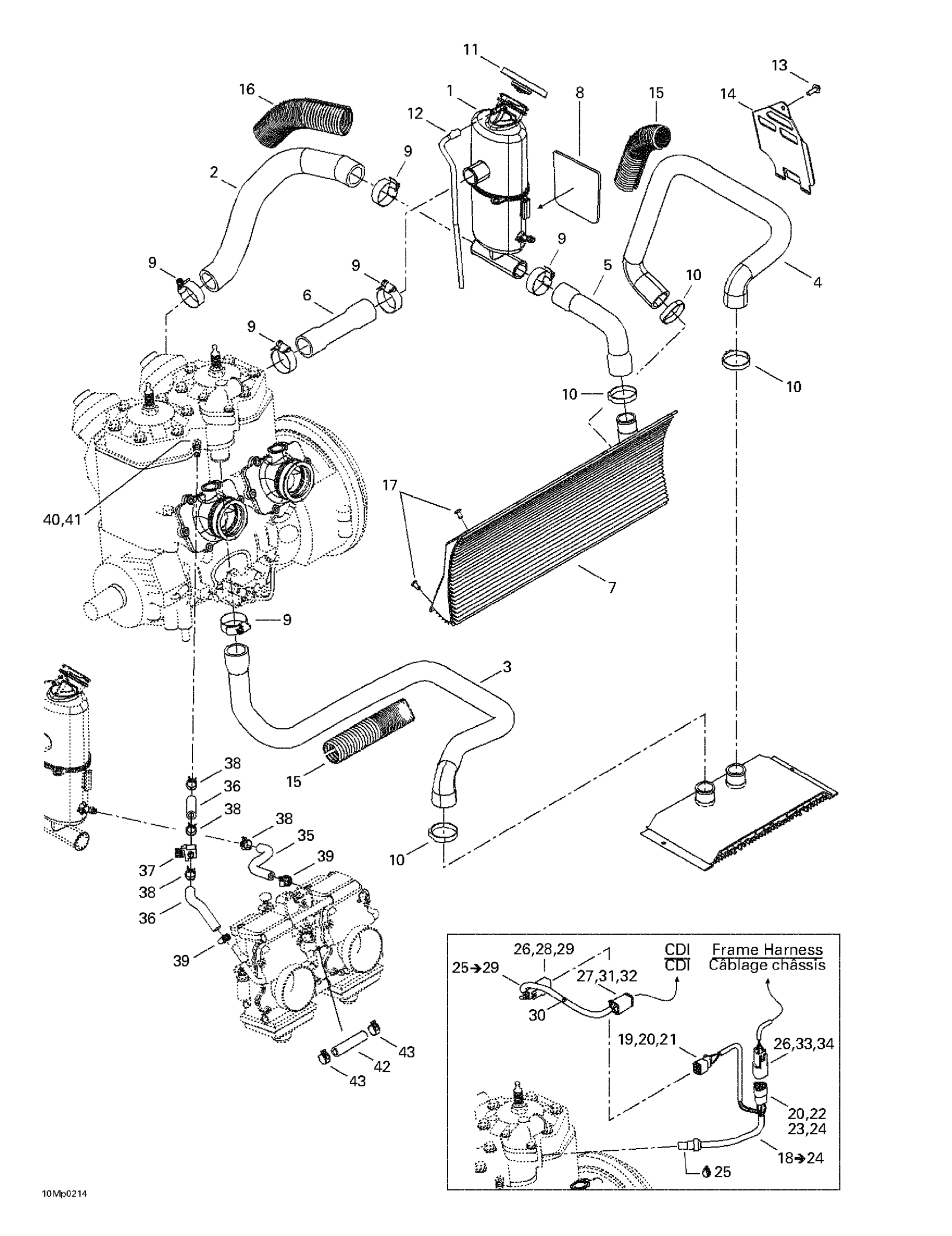

Ski-Doo MX Z 800 Rev, 2002 Cooling System Diagram

#

Description
Price

1

Coolant Tank

509000408

$82.81

2

Engine Inlet Hose

509000172

Unavailable

3

Engine Outlet Hose

509000158

Unavailable

4

Radiator Inlet Hose

509000159

Unavailable

5

Radiator Outlet Hose

509000160

Unavailable

6

Hose

509000161

Unavailable

7

Front Radiator

518322245

Unavailable

8

REFECTIVE SHEET - Call your local BRP dealership

509000190

Unavailable

9

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

10

Oetiker Gear Clamp

509000181

$4.15

11

Pressure Cap

509000187

$26.84

12

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

13

Hex. Screw M4.8 X 1.8

243141680

$4.55

14

Deflector

509000163

Unavailable

15

Tubing 25 MM 1000MM Long

219704402

$14.57

16

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

17

Pop Rivet 3/16"

390402200

$0.30

18

Temperature Sensor | Includes 18 - 24.

515175818

Unavailable

19

Female Terminal Housing, 2 Circuits

515175670

$7.61

20

Female Terminal

278000632

$1.94

21

Female Lock, 2 Circuits

515175675

$4.28

22

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

23

Female Lock, 3 Circuits

515175676

$4.96

24

Sealing Cap

293000052

$2.93

25

Sensor Harness | Includes 25 - 29.

515175822

Unavailable

26

Male Terminal

278000631

$4.00

27

Female Terminal

278000632

$1.94

28

Male Lock, 2 Circuits

409207500

$2.93

29

Male Terminal Housing, 2 Circuits

515175665

$7.78

30

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

31

Male Housing, 6 Circuits

515175673

$12.66

32

Male Wedge, 6 Circuits

515175678

$4.96

33

Male Lock, 3 Circuits

409207600

$2.93

34

Male Housing

515175666

$12.66

35

FORMED HOSE - Call your local BRP dealership

509000171

Unavailable

36

Hose 8 mm

509000093

Unavailable

37

Valve 5/16” | Grand Touring 500.

512059324

$41.01

38

Spring Clamp

414655700

$0.66

39

Tridon Gear Clamp

293650170

$2.00

40

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

41

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

42

Hose | Grand Touring 500.

404161956

$17.88

43

Clip | Grand Touring 500.

404161957

$15.64
