2019 Kawasaki Mule SX™ Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 2019 Kawasaki Mule SX™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

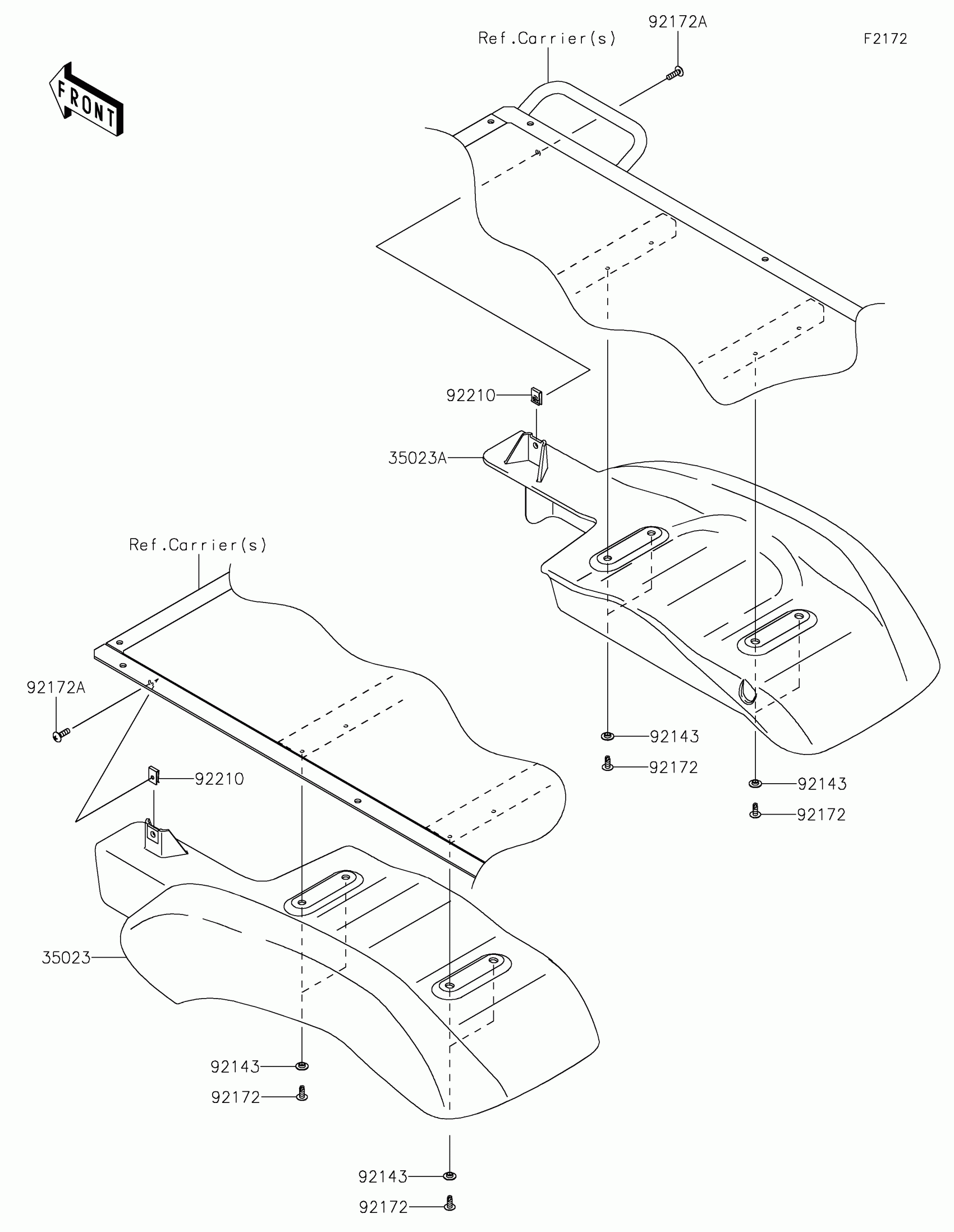

2019 Kawasaki Mule SX™ Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35023

FENDER-REAR,LH,F.BLACK

35023-0045-6Z

1
Out of stock

35023A

FENDER-REAR,RH,F.BLACK

35023-0046-6Z

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92172

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

92172A

SCREW,TAPPING,6X20

92172-0883

1
Out of stock

92210

NUT,LEAF SPRING,6MM

92210-0624

1
Out of stock
