Description

Price

11012

CAP

11012-1784

$5.00

11057

BRACKET,TAIL GATE

11057-1623

$9.25

13271

PLATE,CARRIER,SIDE,FR,D.R.RED

13271-0385-16M

$204.16

13271A

PLATE,CARRIER,SIDE,FR,T.GREEN

13271-0385-42T

$204.16

13272

PLATE,SIDE CARRIER,LH,D.R.RED

13272-2506-16M

$204.16

13272A

PLATE,SIDE CARRIER,LH,T.GREEN

13272-2506-42T

$204.16

13272B

PLATE,SIDE CARRIER,RH,D.R.RED

13272-2507-16M

$204.16

13272C

PLATE,SIDE CARRIER,RH,T.GREEN

13272-2507-42T

$204.16

13272D

PLATE

13272-7516

$7.25

16073

INSULATOR,295X400

16073-0868

$55.92

16073A

INSULATOR,265X265

16073-0869

$50.06

27012

HOOK

27012-0044

$31.59

27012A

HOOK,CARRIER

27012-1445

$12.32

42036

SLEEVE

42036-0839

$2.27

53029

CARRIER,BASE,T.BLACK

53029-0356-388

$1,269.15

53045

HOOK-ASSY,CABLE

53045-0030

$24.61

53045A

HOOK-ASSY

53045-0032

$21.71

53045B

HOOK-ASSY

53045-0033

$21.71

53062

GATE-TAIL,D.R.RED

53062-0026-16M

$294.26

53062A

GATE-TAIL,T.GREEN

53062-0026-42T

$294.26

92009

SCREW,6X10

92009-1661

$3.43

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$3.43

92043

PIN,12X54

92043-1451

$9.42

92075

DAMPER

92075-1882

$6.44

92153

BOLT,SOCKET,6X14

92153-1021

$2.19

92161

DAMPER

92161-1065

$2.97

92161A

DAMPER

92161-2219

$8.64

92161B

DAMPER

92161-7519

$2.92

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

130

BOLT-FLANGED,6X10

130BA0610

$1.12

130A

BOLT-FLANGED,6X14

130BA0614

$1.12

130B

BOLT-FLANGED,6X16

130BA0616

$1.12

130C

BOLT-FLANGED,6X40

130BA0640

$1.12

130D

BOLT-FLANGED,8X20

130BA0820

$3.27

554

PIN-SNAP,12MM

554DA1200

$2.74

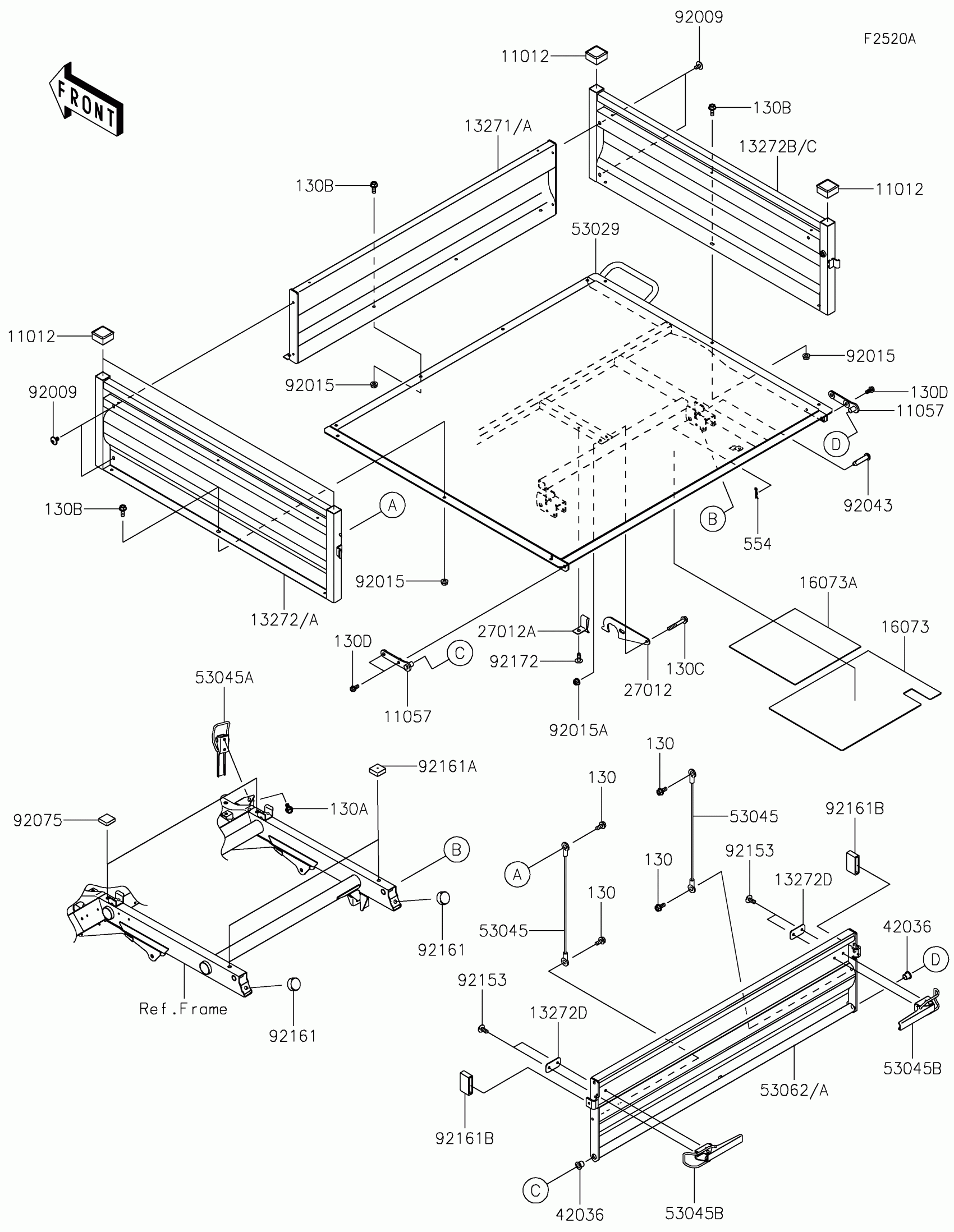

Kawasaki MULE SX™ Carrier(s)(JK1AFEJ1 KB503476-) Diagram
