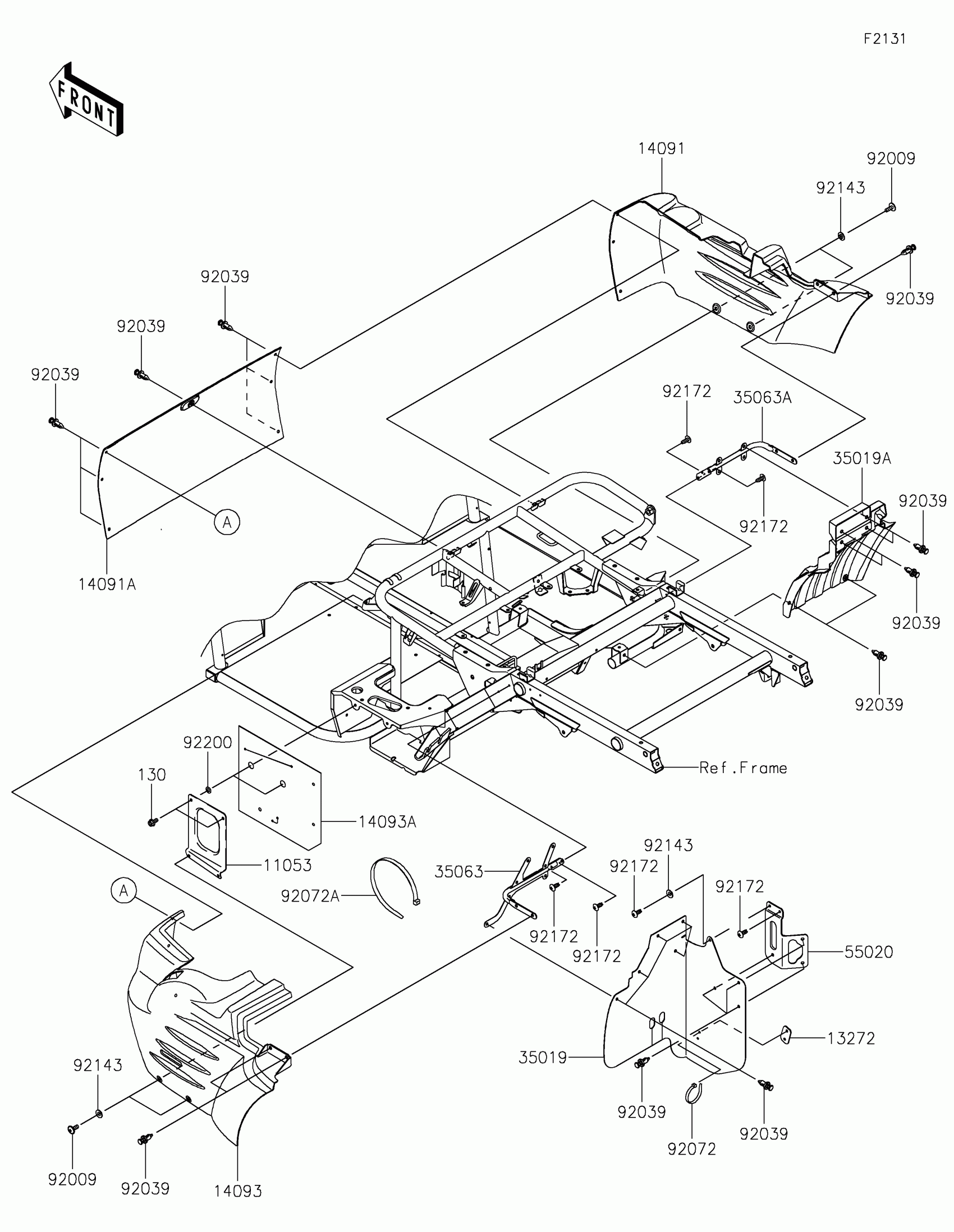

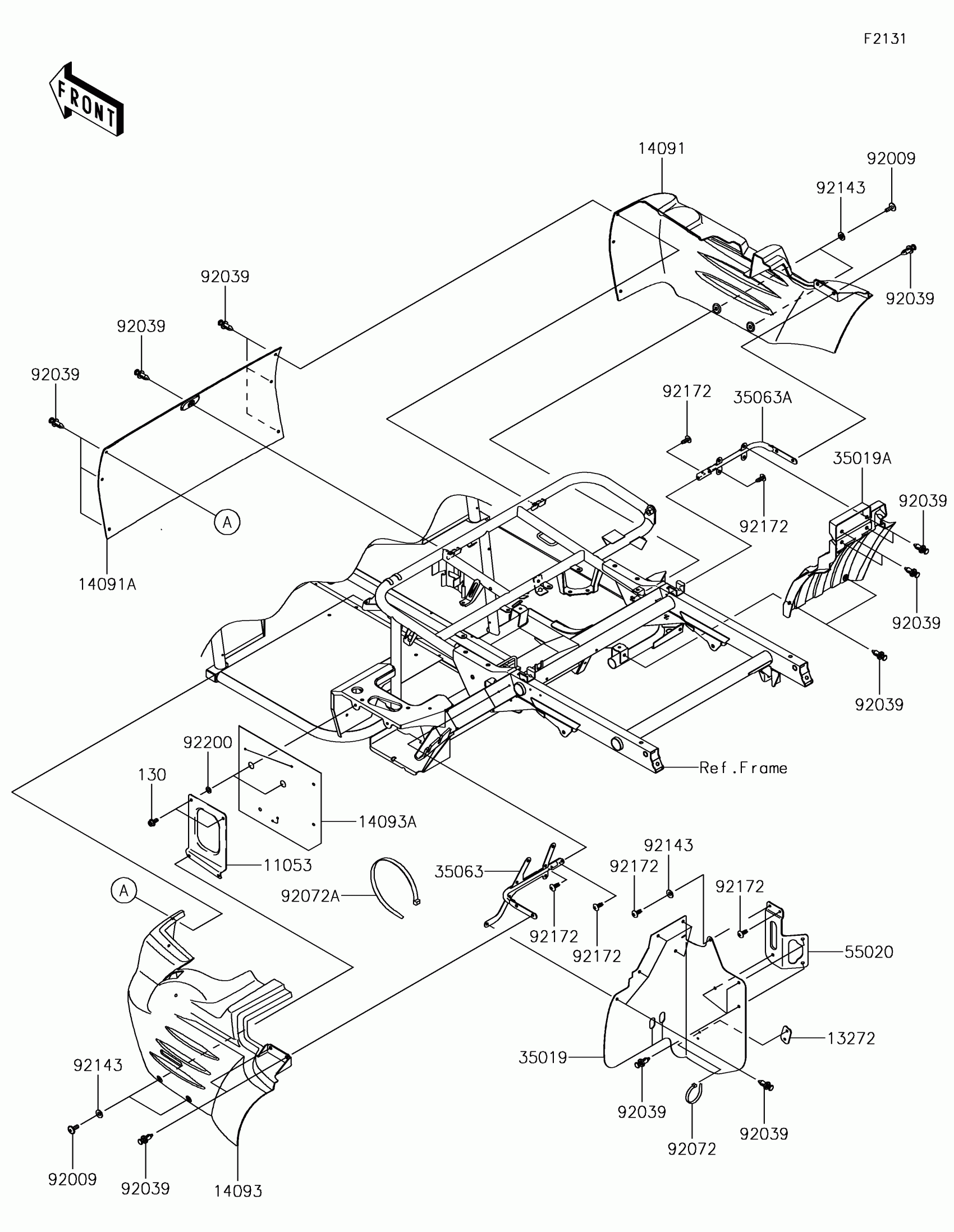

Kawasaki MULE SX™ Frame Fittings(Rear) Diagram

Description

Price

11053

BRACKET

11053-0857

$51.11

13272

PLATE

13272-7516

$7.25

14091

COVER,REAR SIDE,RH,F.BLACK

14091-0224-6Z

$52.72

14091A

COVER,UNDER SEAT,CNT,F.BLACK

14091-0341-6Z

$38.26

14093

COVER,REAR SIDE,LH,F.BLACK

14093-0500-6Z

$52.72

14093A

COVER,BATTERY

14093-0534

$25.64

35019

FLAP,SIDE COVER,LH

35019-0610

$50.10

35019A

FLAP,SIDE COVER,RH

35019-0612

$91.34

35063

STAY,LH

35063-0784

$75.36

35063A

STAY,RH

35063-1333

$75.36

55020

GUARD,COOLING FAN

55020-7527

$14.20

92009

SCREW,6X16

92009-1621

Unavailable

92039

RIVET

92039-0776

$0.80

92072

BAND,L=188

92072-1239

$1.30

92072A

BAND,L=368.3

92072-3872

$1.20

92143

COLLAR

92143-1087

$2.98

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92200

WASHER,7.04X12.5X0.6

92200-0234

$1.70

130

BOLT-FLANGED,6X12

130BA0612

$1.25
