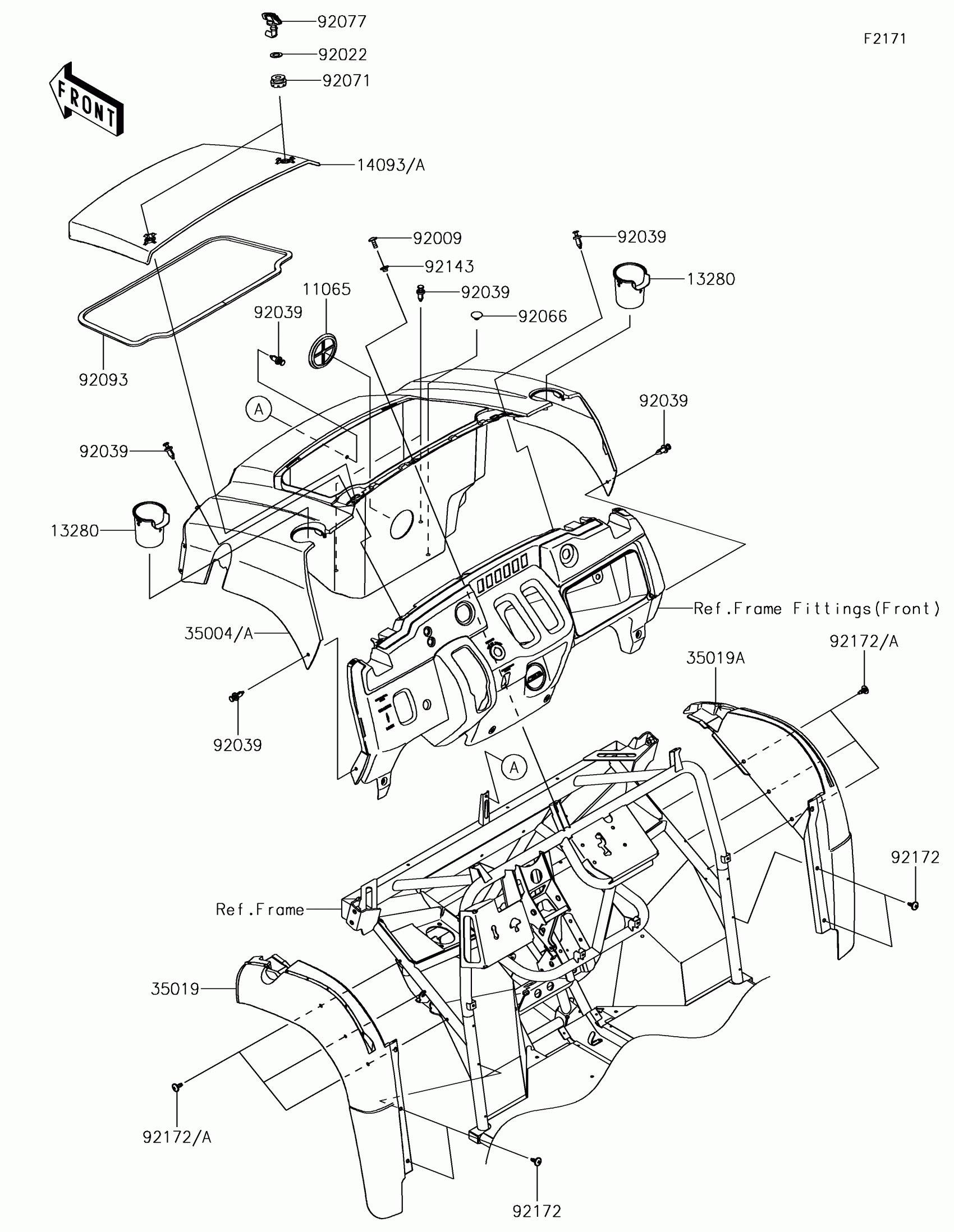

Kawasaki MULE SX™ Front Fender(s) Diagram

Description

Price

11065

CAP,F.BLACK

11065-1053-6Z

$6.40

13280

HOLDER

13280-0879

$12.69

14093

COVER,HOOD,D.R.RED

14093-0390-16L

$137.24

14093A

COVER,HOOD,T.GREEN

14093-0390-42S

$119.95

35004

FENDER-FRONT,D.R.RED

35004-0355-16L

$314.21

35004A

FENDER-FRONT,T.GREEN

35004-0355-42S

$298.50

35019

FLAP,LH

35019-0608

$146.82

35019A

FLAP,RH

35019-0609

$146.82

92009

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,12.5X22X1.2

92022-072

$2.99

92039

RIVET

92039-0776

$0.80

92066

PLUG

92066-1485

$1.74

92071

GROMMET

92071-0746

$0.92

92077

KNOB

92077-0033

$2.11

92093

SEAL,6X15X1755

92093-0688

$4.75

92143

COLLAR

92143-1057

$3.81

92172

SCREW,6X16

92172-0711

$2.11

92172A

SCREW,6X16

92172-0826

$1.62
