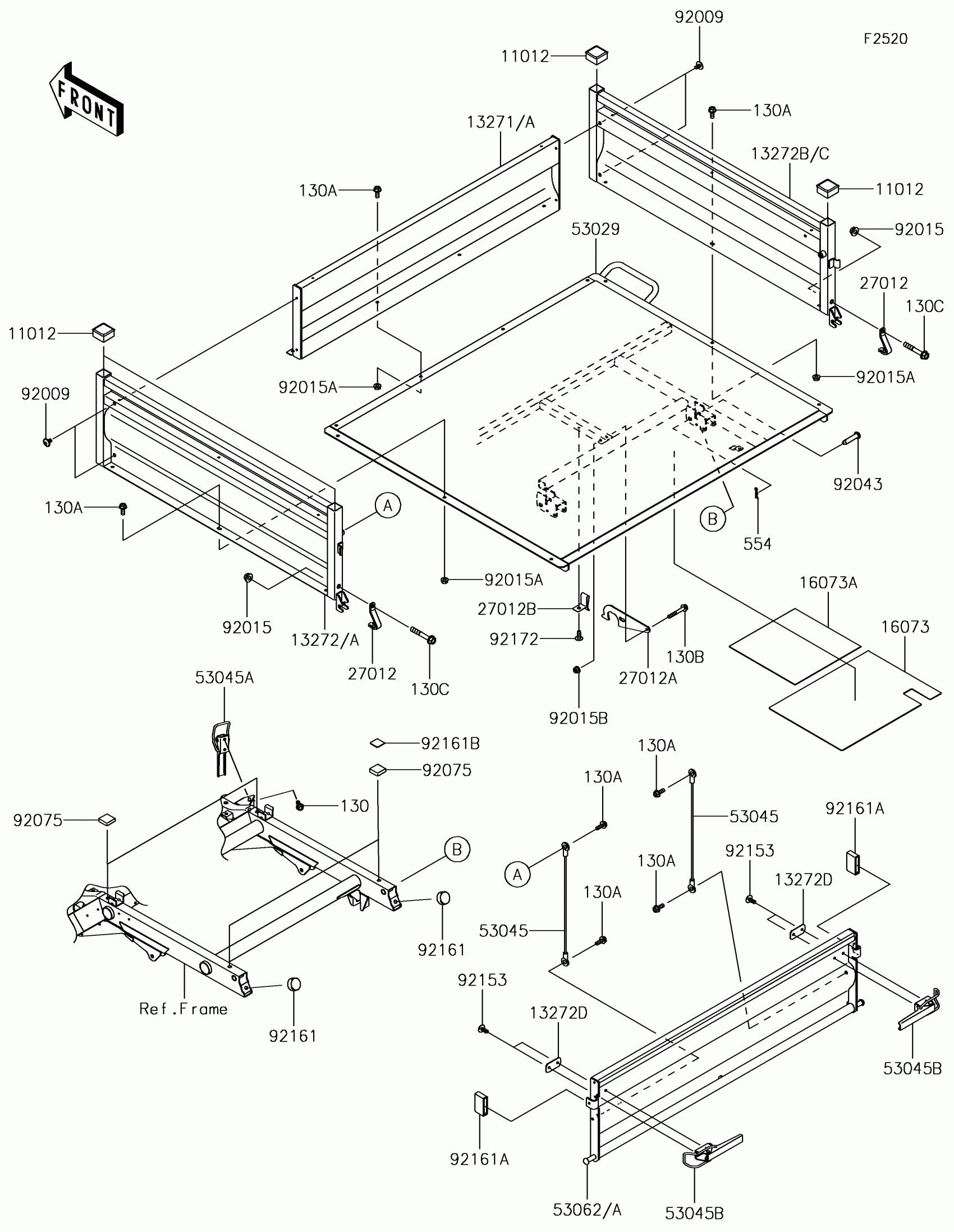

Kawasaki MULE SX™ Carrier(s)(-JK1AFEJ1 KB503475) Diagram

#

Description
Price

11012

CAP

11012-1784

$4.74

13271

PLATE,CARRIER,SIDE,FR,D.R.RED

13271-0385-16M

$204.16

13271A

PLATE,CARRIER,SIDE,FR,T.GREEN

13271-0385-42T

$204.16

13272

PLATE,SIDE CARRIER,LH,D.R.RED

13272-2098-16M

$211.47

13272A

PLATE,SIDE CARRIER,LH,T.GREEN

13272-2098-42T

$211.47

13272B

PLATE,SIDE CARRIER,RH,D.R.RED

13272-2099-16M

$211.47

13272C

PLATE,SIDE CARRIER,RH,T.GREEN

13272-2099-42T

$211.47

13272D

PLATE

13272-7516

$7.25

16073

INSULATOR,295X400

16073-0849

$51.48

16073A

INSULATOR,265X265

16073-0850

$46.12

27012

HOOK,TAIL GATE

27012-0022

$4.81

27012A

HOOK

27012-0044

$31.59

27012B

HOOK,CARRIER

27012-1445

$12.32

53029

CARRIER,BASE,T.BLACK

53029-0345-388

$1,278.78

53045

HOOK-ASSY,CABLE

53045-0030

$24.61

53045A

HOOK-ASSY

53045-0032

$21.71

53045B

HOOK-ASSY

53045-0033

$21.71

53062

GATE-TAIL,D.R.RED

53062-0024-16M

$279.16

53062A

GATE-TAIL,T.GREEN

53062-0024-42T

$293.85

92009

SCREW,6X10

92009-1661

$3.29

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,FLANGED,6MM

92015-1367

$2.53

92015B

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92043

PIN,12X54

92043-1451

$9.42

92075

DAMPER

92075-1882

$6.18

92153

BOLT,SOCKET,6X14

92153-1021

$1.89

92161

DAMPER

92161-1065

$2.84

92161A

DAMPER

92161-7519

$2.68

92161B

DAMPER

92161-7520

$0.85

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,6X40

130BA0640

$0.97

130C

BOLT-FLANGED,8X50

130BA0850

$1.63

554

PIN-SNAP,12MM

554DA1200

$2.63
