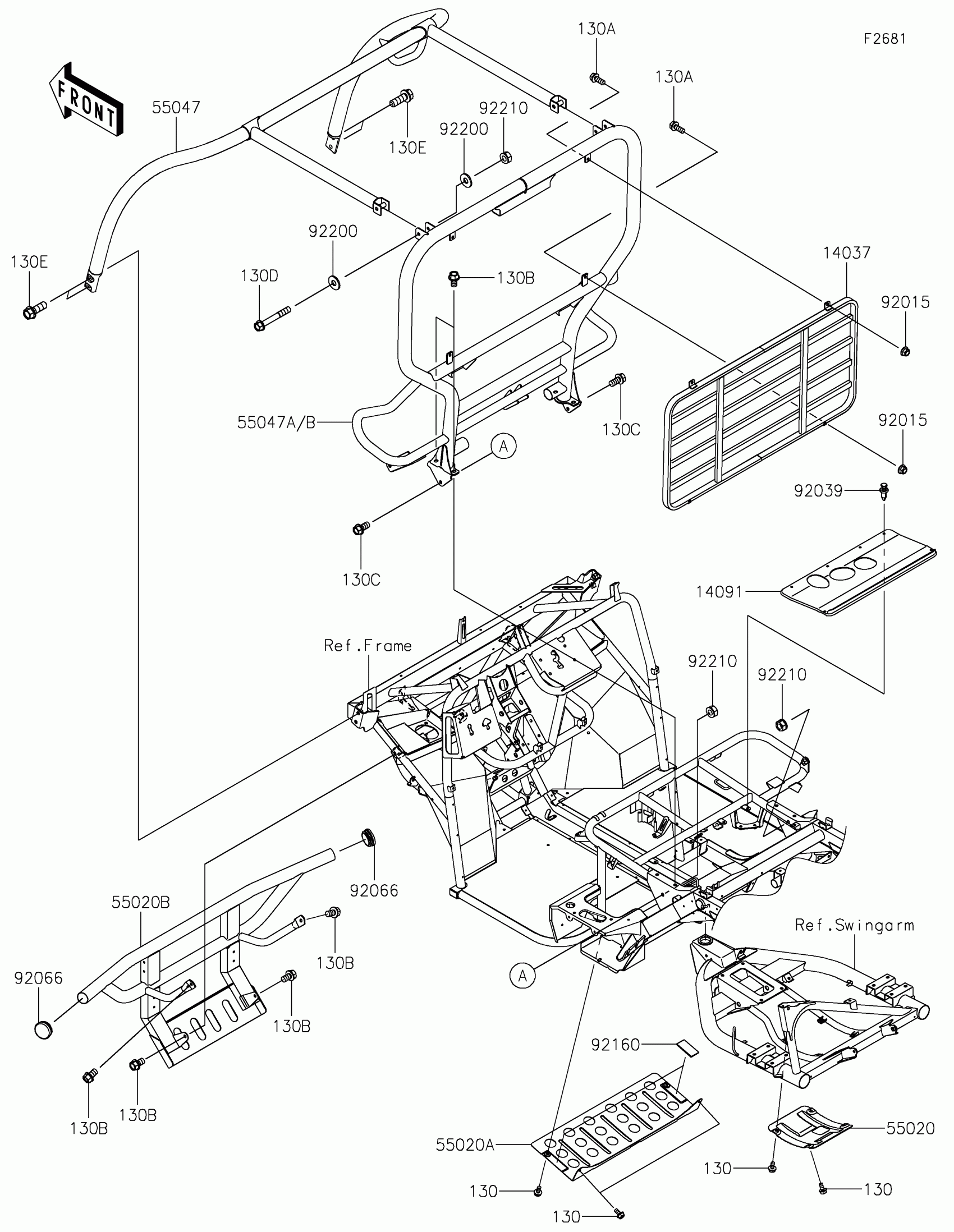

Kawasaki MULE SX™ Guards/Cab Frame Diagram

Description

Price

14037

SCREEN,T.BLACK

14037-0774-388

$161.32

14091

COVER

14091-0355

$4.08

55020

GUARD,DIFF

55020-0141

$40.89

55020A

GUARD

55020-0883

$63.82

55020B

GUARD,FR,T.BLACK

55020-1933-388

$181.88

55047A

BAR-COMP,RR,T.BLACK

55047-0356-388

$541.14

55047B

BAR-COMP,FR,T.BLACK

55047-0376-388

$319.73

92015

NUT,FLANGED,LOCK,8MM

92015-1668

$3.24

92039

RIVET

92039-0776

$0.80

92066

PLUG,42MM

92066-0830

$1.33

92160

DAMPER

92160-1102

$1.24

92200

WASHER,11X26X2.6

92200-0352

$2.34

92210

NUT,LOCK,10MM

92210-1204

$3.29

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,8X20

130BA0820

$3.04

130B

BOLT-FLANGED,10X16

130BA1016

$3.63

130C

BOLT-FLANGED,10X20

130BA1020

$2.68

130D

BOLT-FLANGED,10X70

130BA1070

$2.25

130E

BOLT-FLANGED,12X35

130BA1235

$3.19
