2023 Kawasaki Mule SX™ 4x4 FE Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2023 Kawasaki Mule SX™ 4x4 FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

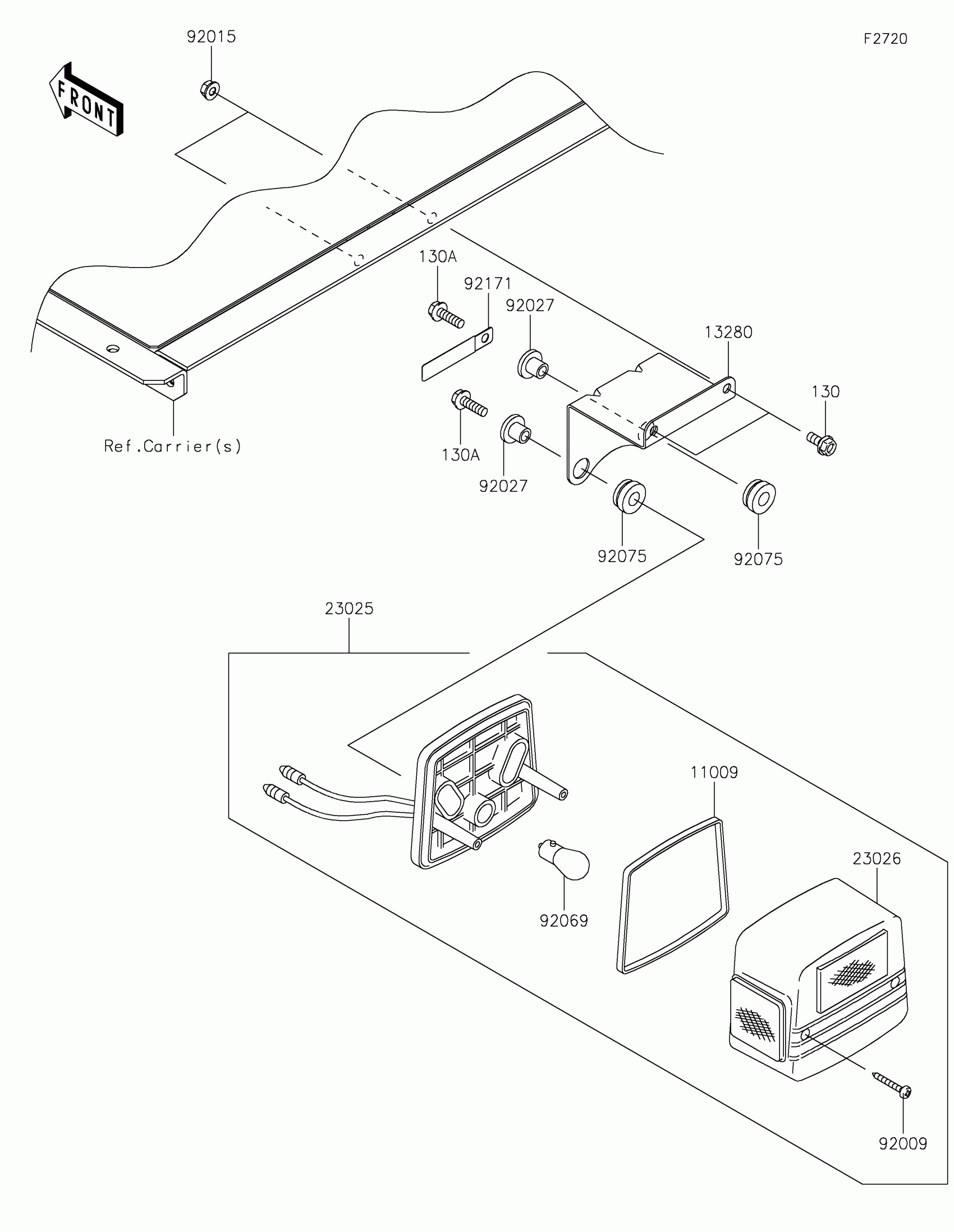

2023 Kawasaki Mule SX™ 4x4 FE Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAIL LAMP

11009-1215

1
Out of stock

13280

HOLDER,TAIL LAMP

13280-0079

1

$9.22

In stock

23025

LAMP-TAIL

23025-1042

1
Out of stock

23026

LENS,TAIL LAMP

23026-1019

1
Out of stock

92009

SCREW,TAPPING,4X25

92009-1069

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92027

COLLAR

92027-194

1
Out of stock

92069

BULB,12V 21/5W

92069-1011

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

92171

CLAMP,L=60

92171-0652

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130A

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock
