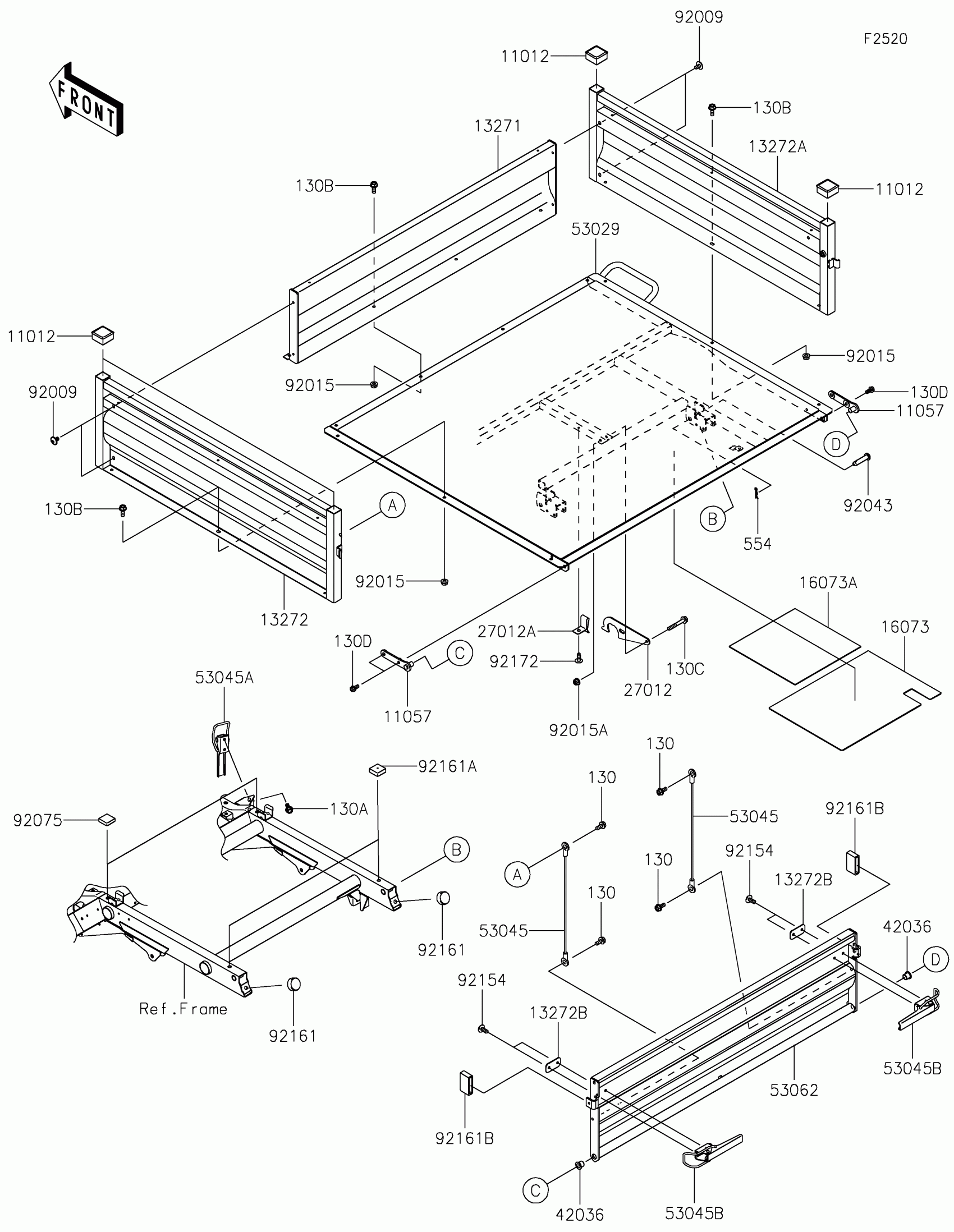

Find the part on the Carrier diagram for your 2023 Kawasaki Mule SX™ 4x4 Fe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki Mule SX™ 4x4 Fe Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1784

1
Out of stock

11057

BRACKET,TAIL GATE

11057-1623

1
Out of stock

13271

PLATE,CARRIER,SIDE,FR,BLACK

13271-0385-10

1
Out of stock

13272

PLATE,SIDE CARRIER,LH,BLACK

13272-2506-10

1
Out of stock

13272A

PLATE,SIDE CARRIER,RH,BLACK

13272-2507-10

1
Out of stock

13272B

PLATE

13272-7516

1
Out of stock

16073

INSULATOR,295X400

16073-0868

1
Out of stock

16073A

INSULATOR,265X265

16073-0869

1
Out of stock

27012

HOOK

27012-0044

1
Out of stock

27012A

HOOK,CARRIER

27012-1445

1
Out of stock

42036

SLEEVE

42036-0839

1
Out of stock

53029

CARRIER,BASE,T.BLACK

53029-0356-388

1
Out of stock

53045

HOOK-ASSY,CABLE

53045-0030

1
Out of stock

53045A

HOOK-ASSY

53045-0032

1
Out of stock

53045B

HOOK-ASSY

53045-0033

1
Out of stock

53062

GATE-TAIL,BLACK

53062-0026-10

1
Out of stock

92009

SCREW,6X10

92009-1661

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92043

PIN,12X54

92043-1451

1
Out of stock

92075

DAMPER

92075-1882

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-4238

1
Out of stock

92161

DAMPER

92161-1065

1
Out of stock

92161A

DAMPER

92161-2219

1
Out of stock

92161B

DAMPER

92161-7519

1
Out of stock

92172

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130A

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

130B

BOLT-FLANGED,6X16

130BA0616

1
Out of stock

130C

BOLT-FLANGED,6X40

130BA0640

1
Out of stock

130D

BOLT-FLANGED,8X20

130BA0820

1
Out of stock

554

PIN-SNAP,12MM

554DA1200

1
Out of stock
