2023 Kawasaki Mule SX™ 4x4 FE Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2023 Kawasaki Mule SX™ 4x4 FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

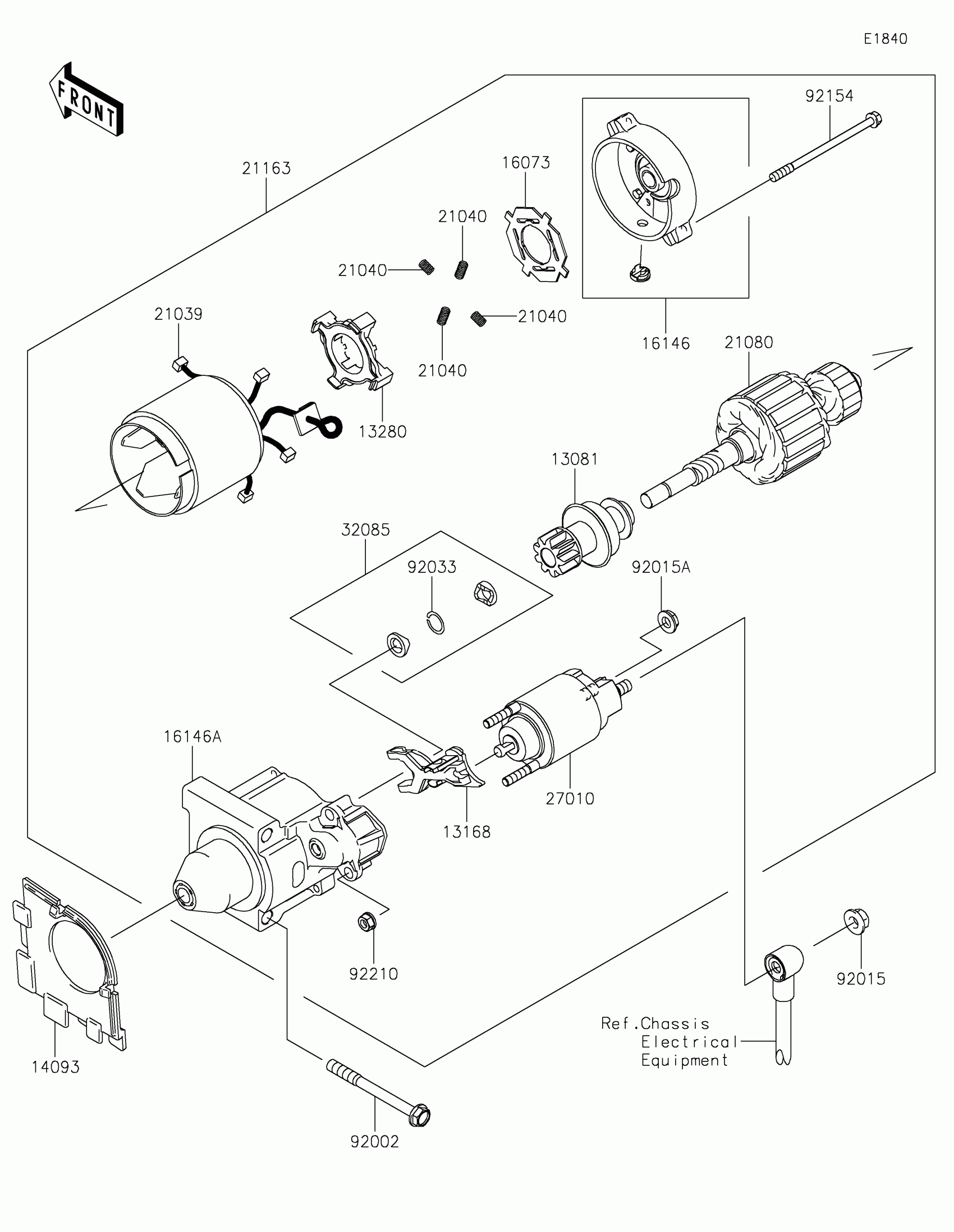

2023 Kawasaki Mule SX™ 4x4 FE Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13081

CLUTCH-ASSY

13081-0710

1
Out of stock

13168

LEVER,PINION DRIVE

13168-0847

1
Out of stock

13280

HOLDER,BRUSH

13280-0873

1

$22.92

In stock

14093

COVER

14093-0932

1
Out of stock

16073

INSULATOR

16073-0854

1
Out of stock

16146

COVER-ASSY

16146-0886

1
Out of stock

16146A

COVER-ASSY

16146-0887

1
Out of stock

21039

BRUSH,STARTER-ELECTRIC

21039-0011

1
Out of stock

21040

SPRING-BRUSH

21040-0005

1
Out of stock

21080

ARMATURE,STARTER-ELECTRIC

21080-0011

1
Out of stock

21163

STARTER-ELECTRIC

21163-0801

1
Out of stock

27010

SWITCH,MAGNET

27010-0843

1
Out of stock

32085

STOPPER,PINION

32085-0797

1
Out of stock

92002

BOLT,8X83

92002-1794

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1406

1
Out of stock

92015A

NUT

92015-2147

1
Out of stock

92033

RING-SNAP

92033-0777

1
Out of stock

92154

BOLT

92154-2116

1
Out of stock

92210

NUT

92210-1493

1
Out of stock
