2023 Kawasaki Mule SX™ 4x4 Fe Chassis Electrical Equipment Diagram

← All diagrams

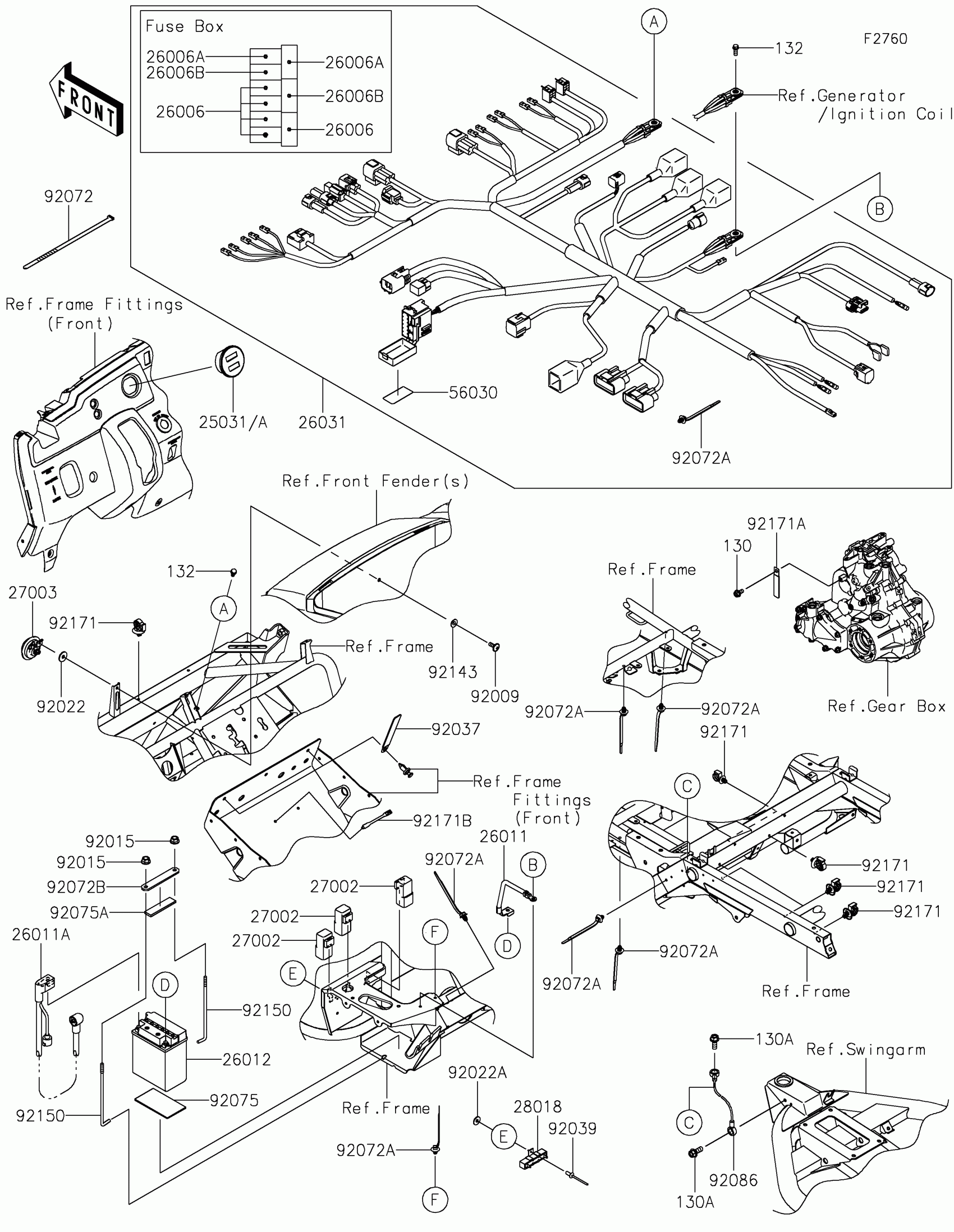

Find the part on the Chassis Electrical Equipment diagram for your 2023 Kawasaki Mule SX™ 4x4 Fe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki Mule SX™ 4x4 Fe Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

25031

METER-ASSY

25031-0829

1
Out of stock

26006

FUSE,MINI BLADE,10A,RED

26006-0009

1
Out of stock

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26006B

FUSE,MINI BLADE,20A,YELLOW

26006-3704

1
Out of stock

26011

WIRE-LEAD,BATTERY(-)

26011-0923

1
Out of stock

26011A

WIRE-LEAD,BATTERY(+)

26011-0924

1
Out of stock

26012

BATTERY,YB14A-A2,12V 14AH

26012-1446

1
Out of stock

26031

HARNESS,MAIN

26031-2413

1
Out of stock

27002

RELAY-ASSY

27002-1088

1
Out of stock

27003

HORN

27003-1276

1
Out of stock

28018

RESISTOR

28018-0005

1
Out of stock

56030

LABEL,FUSE BOX

56030-1361

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1406

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92022A

WASHER,4.3X12.5X1

92022-1949

1
Out of stock

92037

CLAMP,HARNESS,L=100

92037-1636

1
Out of stock

92039

RIVET,BLIND,4.0X9.2

92039-1163

1
Out of stock

92072

BAND,L=188

92072-1239

1
Out of stock

92072A

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92072B

BAND,BATTERY

92072-7507

1
Out of stock

92075

DAMPER

92075-1076

1
Out of stock

92075A

DAMPER

92075-1214

1
Out of stock

92086

WIRE

92086-1054

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92150

BOLT,BATTERY

92150-1293

1
Out of stock

92171

CLAMP

92171-0453

1
Out of stock

92171A

CLAMP,L=60

92171-0652

1
Out of stock

92171B

CLAMP

92171-1365

1
Out of stock

130

BOLT-FLANGED,6X12

130AA0612

1
Out of stock

130A

BOLT-FLANGED,8X20

130BA0820

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132BA0616

1
Out of stock
