2023 Kawasaki Mule SX™ 4x4 FE Generator/ignition Coil Diagram

← All diagrams

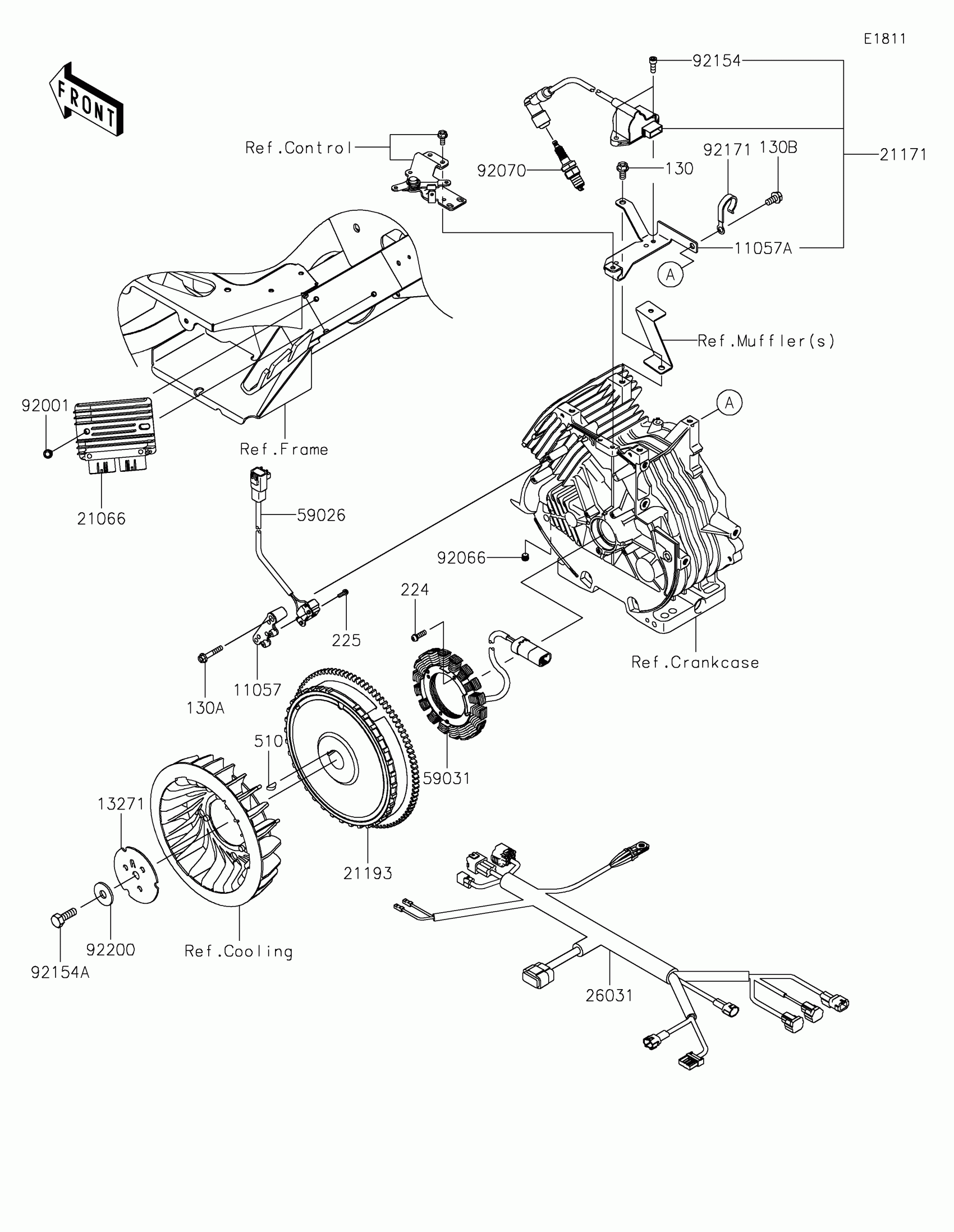

Find the part on the Generator/ignition Coil diagram for your 2023 Kawasaki Mule SX™ 4x4 FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki Mule SX™ 4x4 FE Generator/ignition Coil Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1547

1
Out of stock

11057A

BRACKET,COIL-ASSY-IGNITION

11057-1551

1
Out of stock

13271

PLATE,FAN

13271-7029

1

$2.44

In stock

21066

REGULATOR-VOLTAGE

21066-0767

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-0755

1
Out of stock

21193

FLYWHEEL-ASSY

21193-0711

1
Out of stock

26031

HARNESS,SUB

26031-2618

1
Out of stock

59026

COIL-PULSING

59026-0557

1
Out of stock

59031

COIL-CHARGING

59031-0014

1
Out of stock

92001

BOLT,FLANGED,6X22

92001-1352

1
Out of stock

92066

PLUG

92066-0881

1
Out of stock

92070

PLUG-SPARK,BPR5ES(NGK),SOLID

92070-2088

1
Out of stock

92154

BOLT

92154-3735

1
Out of stock

92154A

BOLT,12X30

92154-7003

1
Out of stock

92171

CLAMP

92171-7005

1
Out of stock

92200

WASHER

92200-7002

1
Out of stock

130

BOLT-FLANGED,8X16

130AA0816

1

$0.83

In stock

130A

BOLT-FLANGED,6X35

130BA0635

1

$0.90

In stock

130B

BOLT-FLANGED,8X16

130BA0816

1

$1.03

In stock

224

SCREW-PAN-WP-CROS,5X25

224AA0525

1
Out of stock

225

SCREW-PAN-WSP-CROS,4X14

225AA0414

1
Out of stock

510

WOODRUFF KEY

510A5100

1
Out of stock
