2007 Kawasaki Mule 610 4x4 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

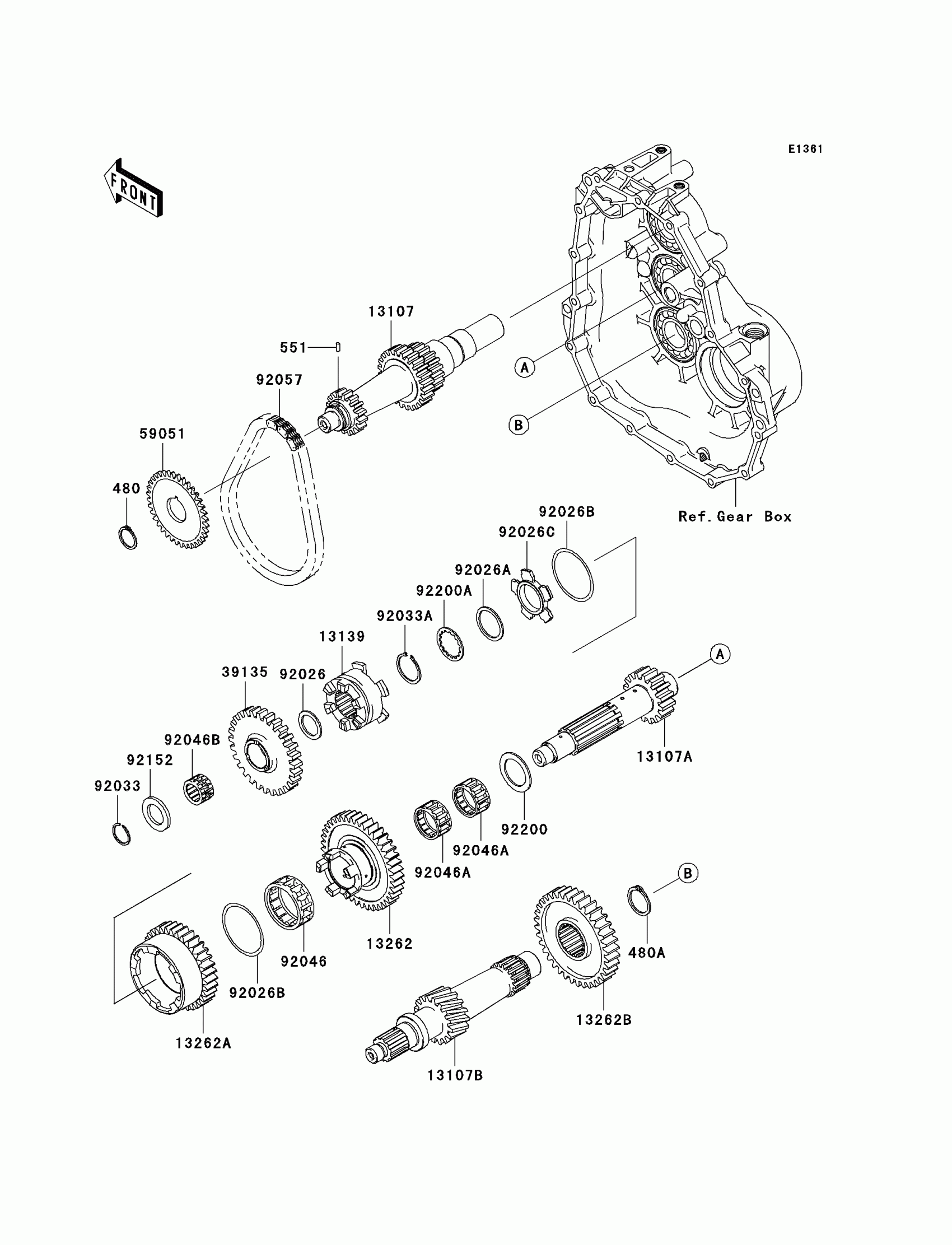

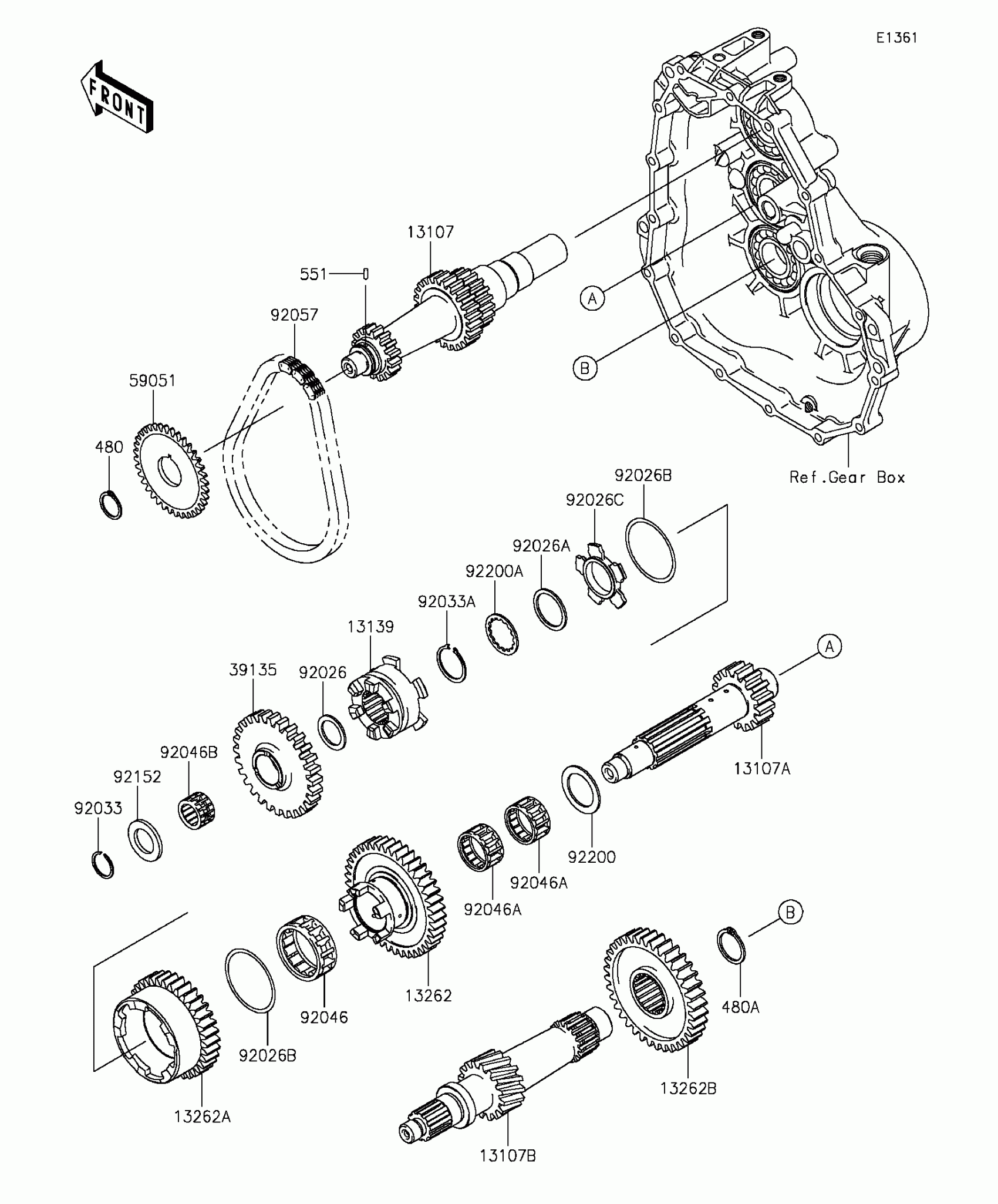

2007 Kawasaki Mule 610 4x4 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP-TYPE-C,25MM

480J2500

1
Out of stock

480A

CIRCLIP-TYPE-C,32MM

480J3200

1
Out of stock

551

PIN DOWEL 3X8

551A0308

1
Out of stock

13107

SHAFT,FIRST,INPUT,16T&24T&19T

13107-0039

1
Out of stock

13107A

SHAFT,SECOND,18T

13107-0078

1
Out of stock

13107B

SHAFT,THIRD,16T

13107-0088

1
Out of stock

13139

SHIFTER,FR/RR

13139-0004

1
Out of stock

13262

GEAR,LOW,41T

13262-0106

1

$150.50

In stock

13262A

GEAR,HIGH,35T

13262-0107

1

$150.50

In stock

13262B

1

$105.75

In stock

39135

SPROCKET-DRIVEN,30T

39135-0001

1

$137.40

In stock

59051

GEAR-SPUR,37T

59051-0049

1
Out of stock

92026

SPACER,21.2X29X1.6

92026-1568

1
Out of stock

92026A

SPACER,28.2X34.5X1.6

92026-1587

1
Out of stock

92026B

SPACER,48.2X54.3X1.0

92026-1599

1
Out of stock

92026C

SPACER,HI&LOW

92026-1600

1
Out of stock

92033

RING-SNAP,20MM

92033-015

1
Out of stock

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

1
Out of stock

92046

BEARING-NEEDLE,HIGH GEAR

92046-1276

1
Out of stock

92046A

BEARING-NEEDLE,FWF-283317

92046-1278

1
Out of stock

92046B

BEARING-NEEDLE,REVERSE GEAR

92046-1279

1
Out of stock

92057

CHAIN,REVERSE,23RH302-38ASM

92057-0072

1
Out of stock

92152

COLLAR,21.2X34.0X3.0

92152-0241

1
Out of stock

92200

WASHER,28.2X40.0X1.6

92200-0090

1
Out of stock

92200A

WASHER,28.5X34.0X1.5

92200-1240

1
Out of stock
