2007 Kawasaki Mule 610 4x4 Drive Converter Diagram

← All diagrams

Find the part on the Drive Converter diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

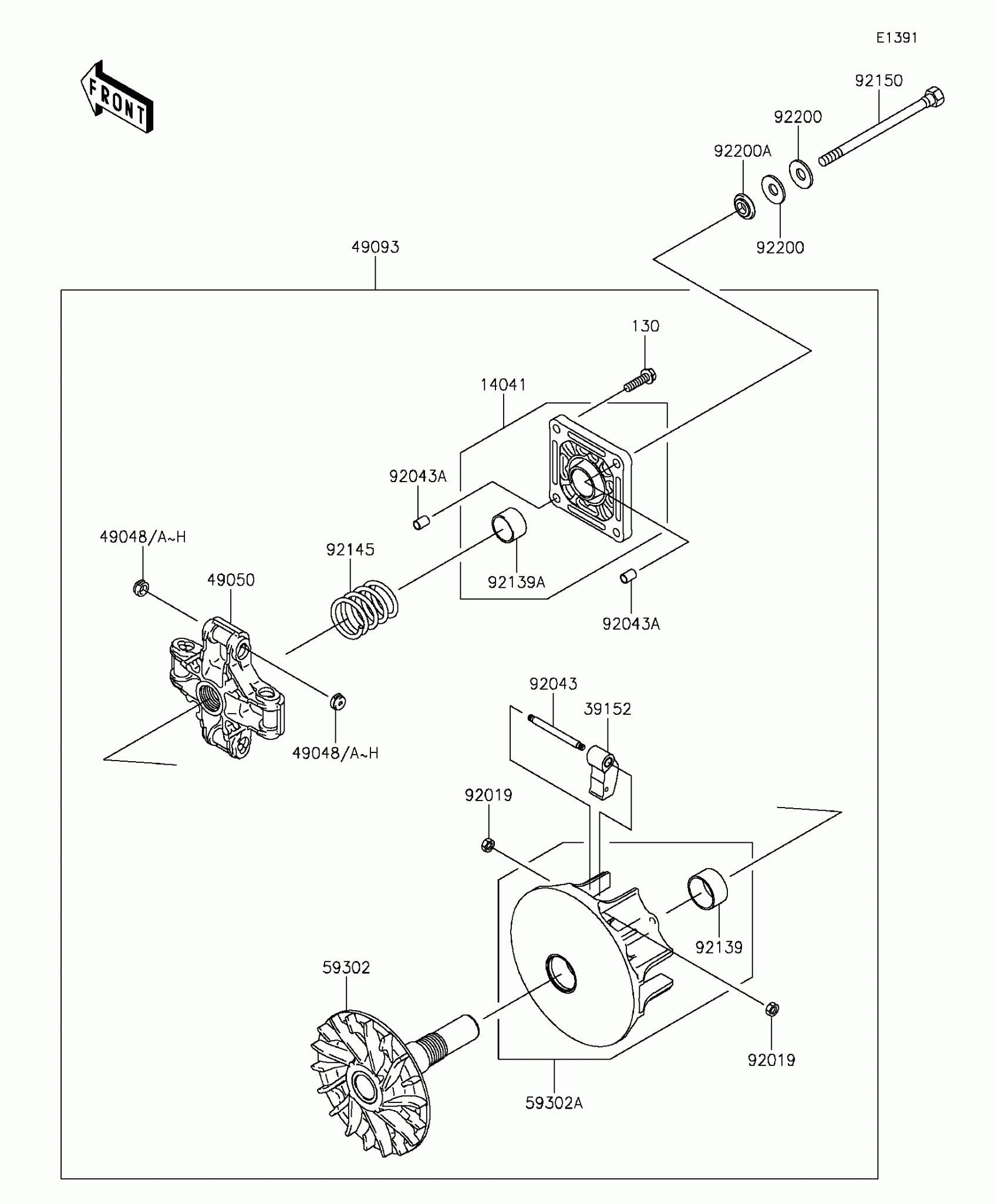

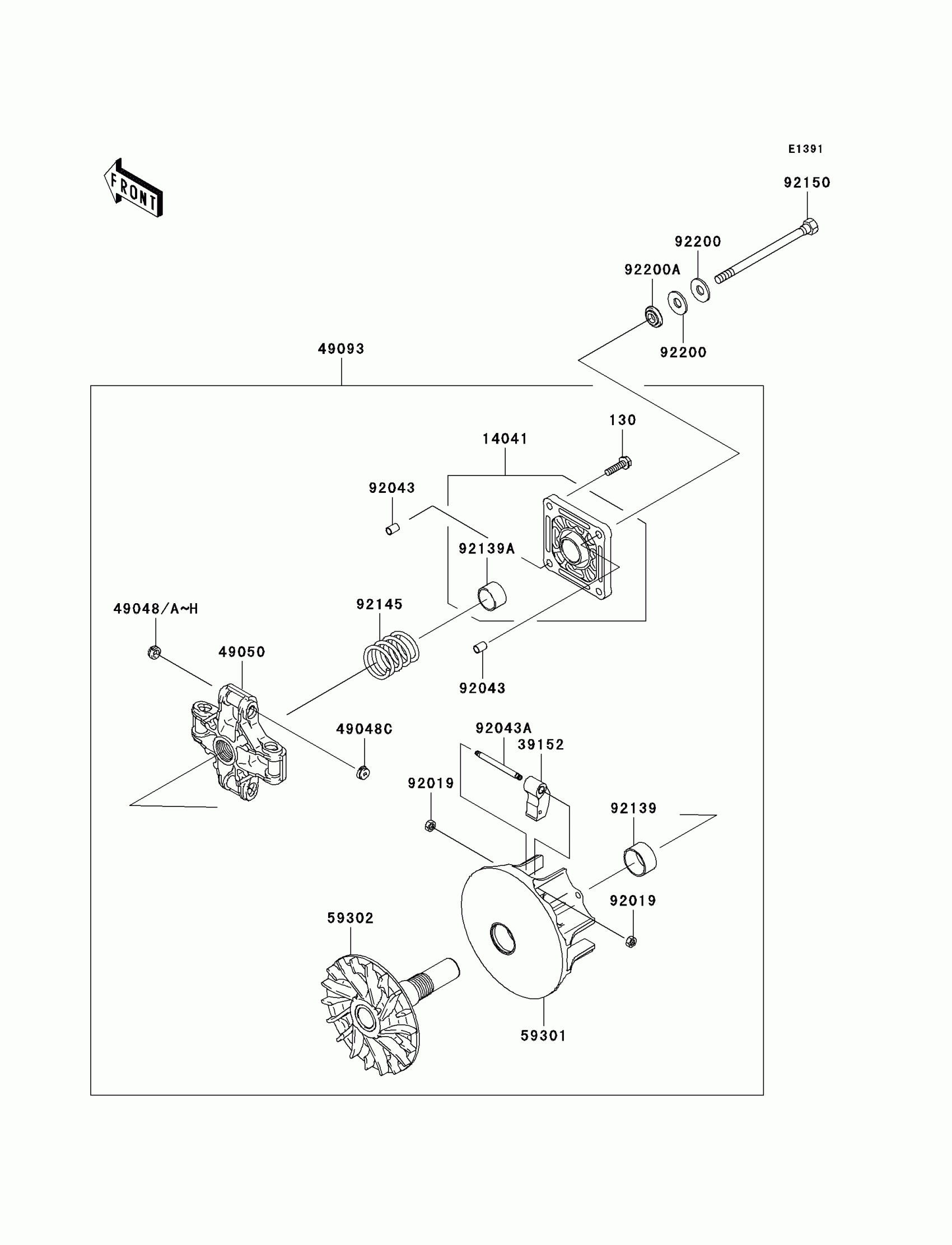

2007 Kawasaki Mule 610 4x4 Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X30

130S0830

1
Out of stock

14041

COVER-COMP

14041-0006

1

$91.68

In stock

39152

WEIGHT-RAMP,C

39152-0011

1

$53.86

In stock

49048

SHOE,T=7.2

49048-1087

—
Out of stock

49048A

SHOE,T=7.3

49048-1088

—
Out of stock

49048B

SHOE,T=7.4

49048-1089

—
Out of stock

49048C

SHOE,T=7.5

49048-1090

1
Out of stock

49048D

SHOE,T=7.6

49048-1091

—
Out of stock

49048E

SHOE,T=7.7

49048-1092

—
Out of stock

49048F

SHOE,T=7.8

49048-1093

—
Out of stock

49048G

SHOE,T=7.9

49048-1094

—
Out of stock

49048H

SHOE,T=8.0

49048-1095

—
Out of stock

49050

SPIDER

49050-0003

1
Out of stock

49093

CONVERTER-ASSY-DRIVE

49093-0009

1
Out of stock

59301

SHEAVE-MOVABLE

59301-0001

1
Out of stock

59302

SHEAVE-COMP,FIXED

59302-0005

1
Out of stock

92019

NUT,LOCK,6MM

92019-008

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92043A

PIN

92043-1699

1
Out of stock

92139

BUSHING

92139-0049

1
Out of stock

92139A

BUSHING

92139-0050

1
Out of stock

92145

SPRING

92145-0149

1
Out of stock

92150

BOLT,12X163.5

92150-1008

1
Out of stock

92200

WASHER

92200-0249

1
Out of stock

92200A

WASHER

92200-1634

1
Out of stock
