2007 Kawasaki Mule 610 4x4 Drive Shaft-Front Diagram

← All diagrams

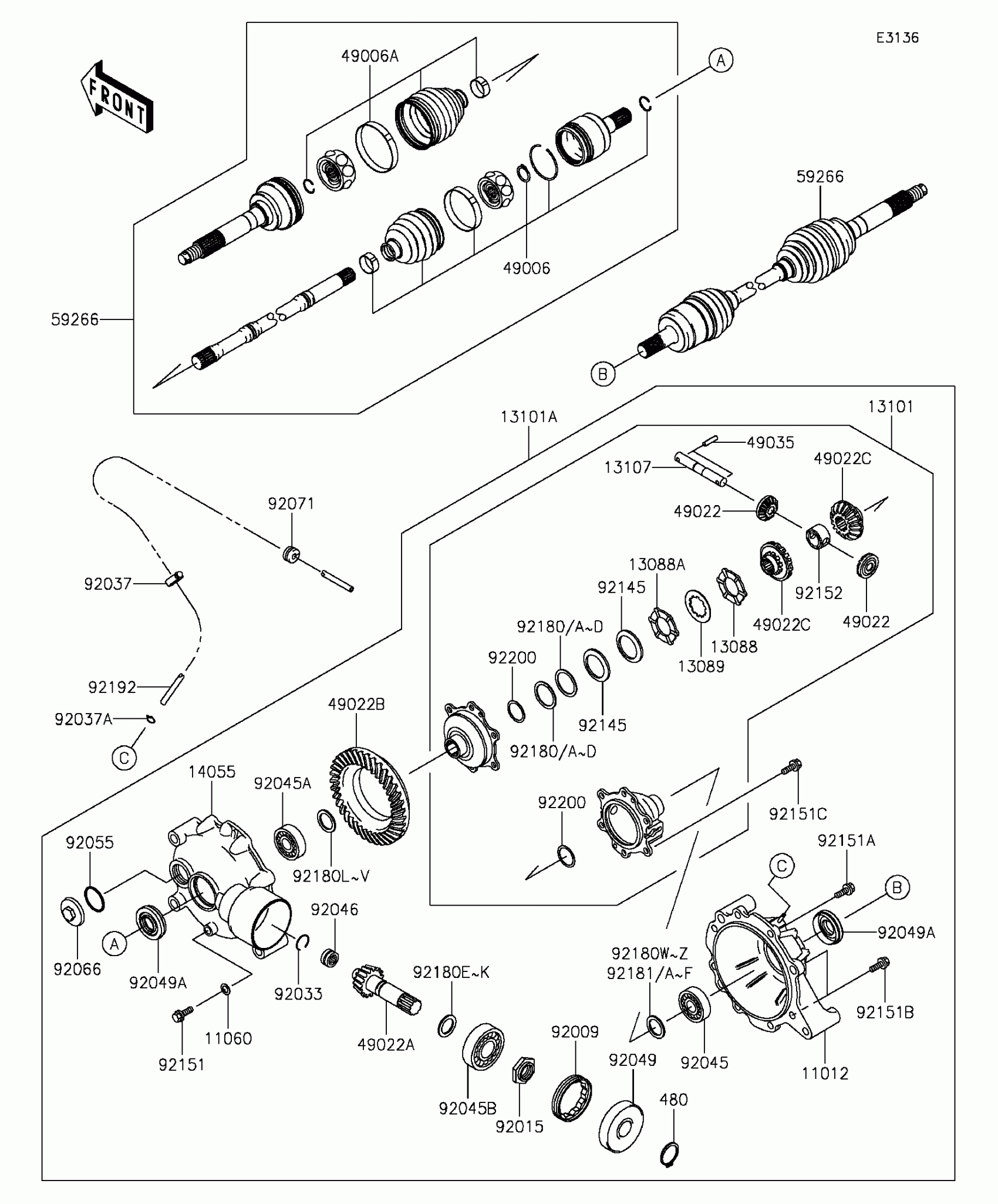

Find the part on the Drive Shaft-Front diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 610 4x4 Drive Shaft-Front Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,DRIVE SHAFT

11012-1955

1
Out of stock

11060

GASKET

11060-1735

1
Out of stock

13088

PLATE-FRICTION

13088-0008

1
Out of stock

13088A

PLATE-FRICTION

13088-0009

1
Out of stock

13089

PLATE-CLUTCH

13089-1118

1
Out of stock

13101

GEAR-ASSY

13101-0025

1
Out of stock

13101A

GEAR-ASSY,FRONT DIFFERENTIAL

13101-0040

1
Out of stock

13107

SHAFT

13107-1369

1
Out of stock

14055

CASE-GEAR

14055-1129

1
Out of stock

49006

BOOT,UJ

49006-0022

1
Out of stock

49006A

BOOT,DOJ

49006-0023

1
Out of stock

49022

GEAR-BEVEL

49022-0017

1
Out of stock

49022A

GEAR-BEVEL

49022-1147

1
Out of stock

49022B

GEAR-BEVEL

49022-1148

1
Out of stock

49022C

GEAR-BEVEL

49022-1153

1
Out of stock

49035

PIN-SPRING

49035-1065

1
Out of stock

59266

JOINT-BALL,FR

59266-0006

1
Out of stock

92009

SCREW,LOCK

92009-1762

1
Out of stock

92015

NUT,LOCK

92015-1992

1
Out of stock

92033

RING-SNAP

92033-1289

1
Out of stock

92037

CLAMP,HOSE

92037-1827

1
Out of stock

92037A

CLAMP

92037-1835

1
Out of stock

92045

BEARING-BALL

92045-1331

1
Out of stock

92045A

BEARING-BALL

92045-1332

1
Out of stock

92046

BEARING-NEEDLE

92046-1248

1
Out of stock

92049

SEAL-OIL

92049-1454

1
Out of stock

92049A

SEAL-OIL

92049-1455

1
Out of stock

92055

RING-O,OIL FILLER

92055-1553

1
Out of stock

92066

PLUG,OIL FILLER

92066-1441

1
Out of stock

92071

GROMMET

92071-0012

1
Out of stock

92145

SPRING

92145-1053

1
Out of stock

92151

BOLT,SEALING

92151-1051

1
Out of stock

92151A

BOLT,FLANGED

92151-1052

1
Out of stock

92151B

BOLT,FLANGED

92151-1053

1
Out of stock

92151C

BOLT

92151-1054

1
Out of stock

92152

COLLAR

92152-0145

1
Out of stock

92180

SHIM,T=1.0

92180-1214

—
Out of stock

92180A

SHIM,T=1.2

92180-1215

—
Out of stock

480

CIRCLIP-TYPE-C,22MM

480J2200

1
Out of stock

92180B

SHIM,T=1.4

92180-1216

—
Out of stock

92180C

SHIM,T=1.6

92180-1217

—
Out of stock

92180D

SHIM,T=1.8

92180-1218

—
Out of stock

92180E

SHIM,26X34X1.82

92180-1219

—
Out of stock

92180F

SHIM,26X34X1.88

92180-1220

—
Out of stock

92180G

SHIM,26X34X1.94

92180-1221

—
Out of stock

92180H

SHIM,26X34X2.00

92180-1222

—
Out of stock

92180I

SHIM,26X34X2.06

92180-1223

—
Out of stock

92180J

SHIM,26X34X2.12

92180-1224

—
Out of stock

92180K

SHIM,26X34X2.18

92180-1225

—
Out of stock

92180L

SHIM,T=1.75

92180-1231

—
Out of stock

92180M

SHIM,T=1.80

92180-1232

—
Out of stock

92180N

SHIM,T=1.85

92180-1233

—
Out of stock

92180O

SHIM,T=1.90

92180-1234

—
Out of stock

92180P

SHIM,T=1.95

92180-1235

—
Out of stock

92180Q

SHIM,T=2.00

92180-1236

—
Out of stock

92180R

SHIM,T=2.05

92180-1237

—
Out of stock

92180S

SHIM,T=2.10

92180-1238

—
Out of stock

92180T

SHIM,T=2.15

92180-1239

—
Out of stock

92180U

SHIM,T=2.20

92180-1240

—
Out of stock

92180V

SHIM,T=2.25

92180-1241

—
Out of stock

92180W

SHIM,T=0.75

92180-1254

—
Out of stock

92180X

SHIM,T=0.80

92180-1255

—
Out of stock

92180Y

SHIM,T=0.85

92180-1256

—
Out of stock

92180Z

SHIM,T=0.90

92180-1257

—
Out of stock

92181

SHIM,T=0.95

92180-1258

—
Out of stock

92181A

SHIM,T=1.00

92180-1259

—
Out of stock

92181B

SHIM,T=1.05

92180-1260

—
Out of stock

92181C

SHIM,T=1.10

92180-1261

—
Out of stock

92181D

SHIM,T=1.15

92180-1262

—
Out of stock

92181E

SHIM,T=1.20

92180-1263

—
Out of stock

92181F

SHIM,T=1.25

92180-1264

—
Out of stock

92192

TUBE,4X7X1100

92192-0165

1
Out of stock

92200

WASHER

92200-1344

1
Out of stock
