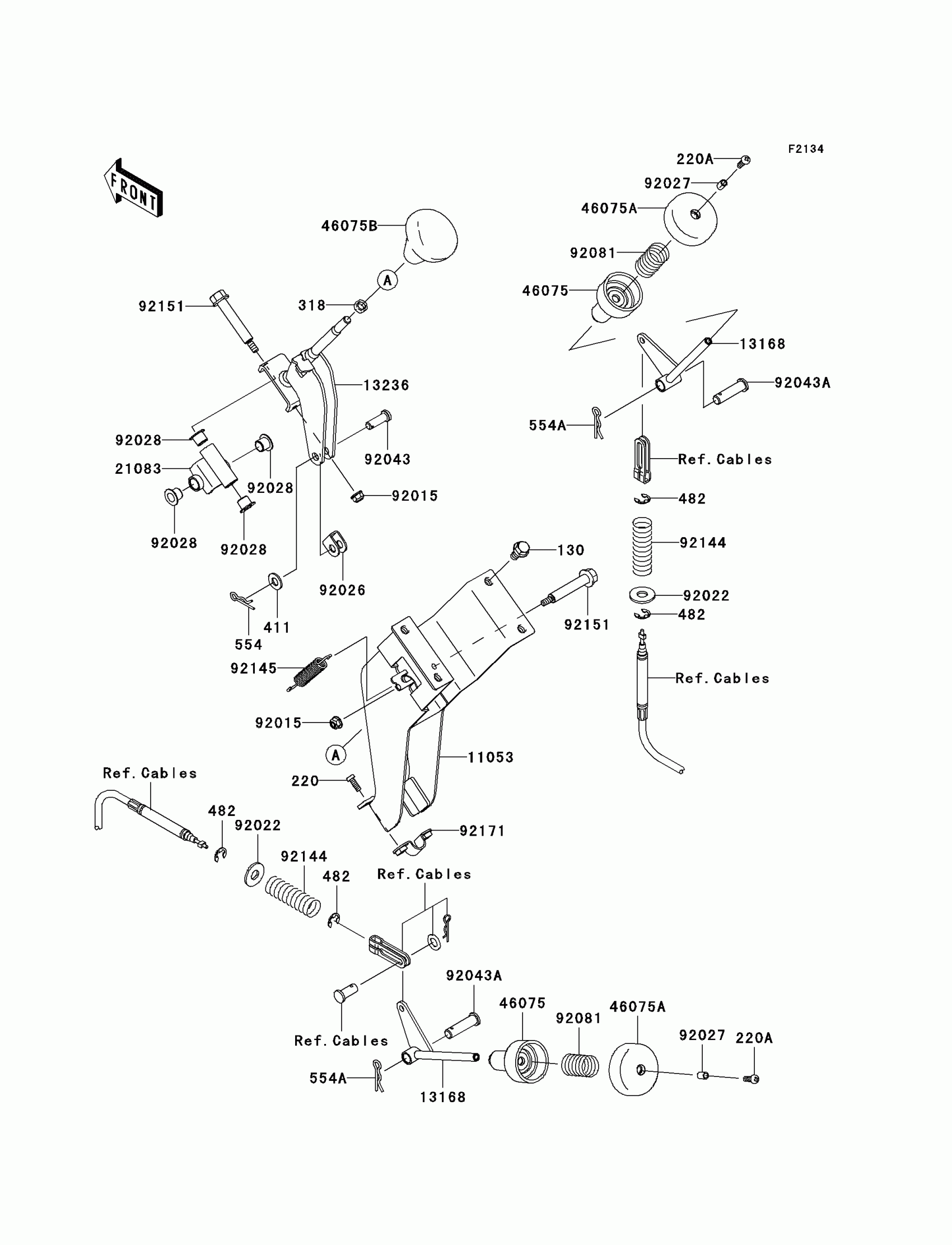

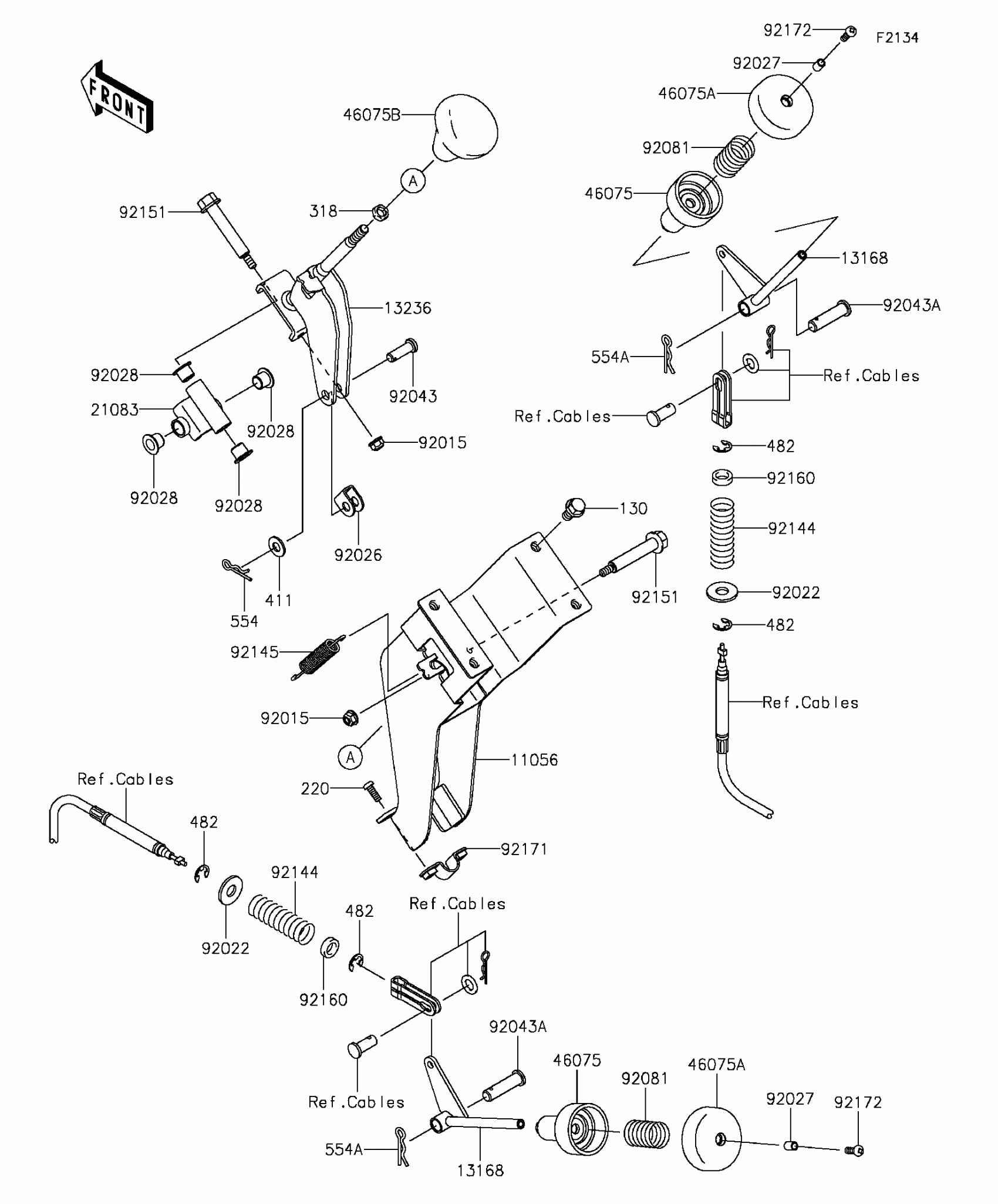

Kawasaki Mule 610 4x4 Shift Lever(s) Diagram

#

Description
Price

130

BOLT-FLANGED,8X16

130J0816

Unavailable

220

SCREW-PAN-CROS,5X14

220D0514

Unavailable

220A

SCREW-PAN-CROSS,5X14

220F0514

$1.33

318

NUT-HEX-SMALL

318J0800

Unavailable

411

WASHER PLAIN 8MM

411B0800

Unavailable

482

CIRCLIP-TYPE-E,8MM

482L8000

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable

554A

PIN-SNAP,10MM

554A1000

$0.73

11053

BRACKET,SHIFT LEVER

11053-1496

Unavailable

13168

LEVER

13168-0069

$29.64

13236

LEVER-COMP,SHIFT

13236-0073

$36.52

21083

ARM

21083-0023

$53.81

46075

GRIP

46075-0012

$11.10

46075A

GRIP

46075-0014

$5.78

46075B

GRIP,SHIFT

46075-1185

$26.99

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92022

WASHER,10.5X26X2.3

92022-044

$2.99

92026

SPACER

92026-0074

$3.51

92027

COLLAR,4.5X6.5X9.3

92027-1313

$6.85

92028

BUSHING

92028-1507

$3.99

92043

PIN

92043-0053

$4.95

92043A

PIN,FOOTRST STEP FIT

92043-1069

$5.42

92081

SPRING

92081-1714

$3.25

92144

SPRING

92144-1510

$4.81

92145

SPRING

92145-0249

$5.92

92151

BOLT,6MM

92151-1747

$7.13

92171

CLAMP

92171-0365

$5.86
