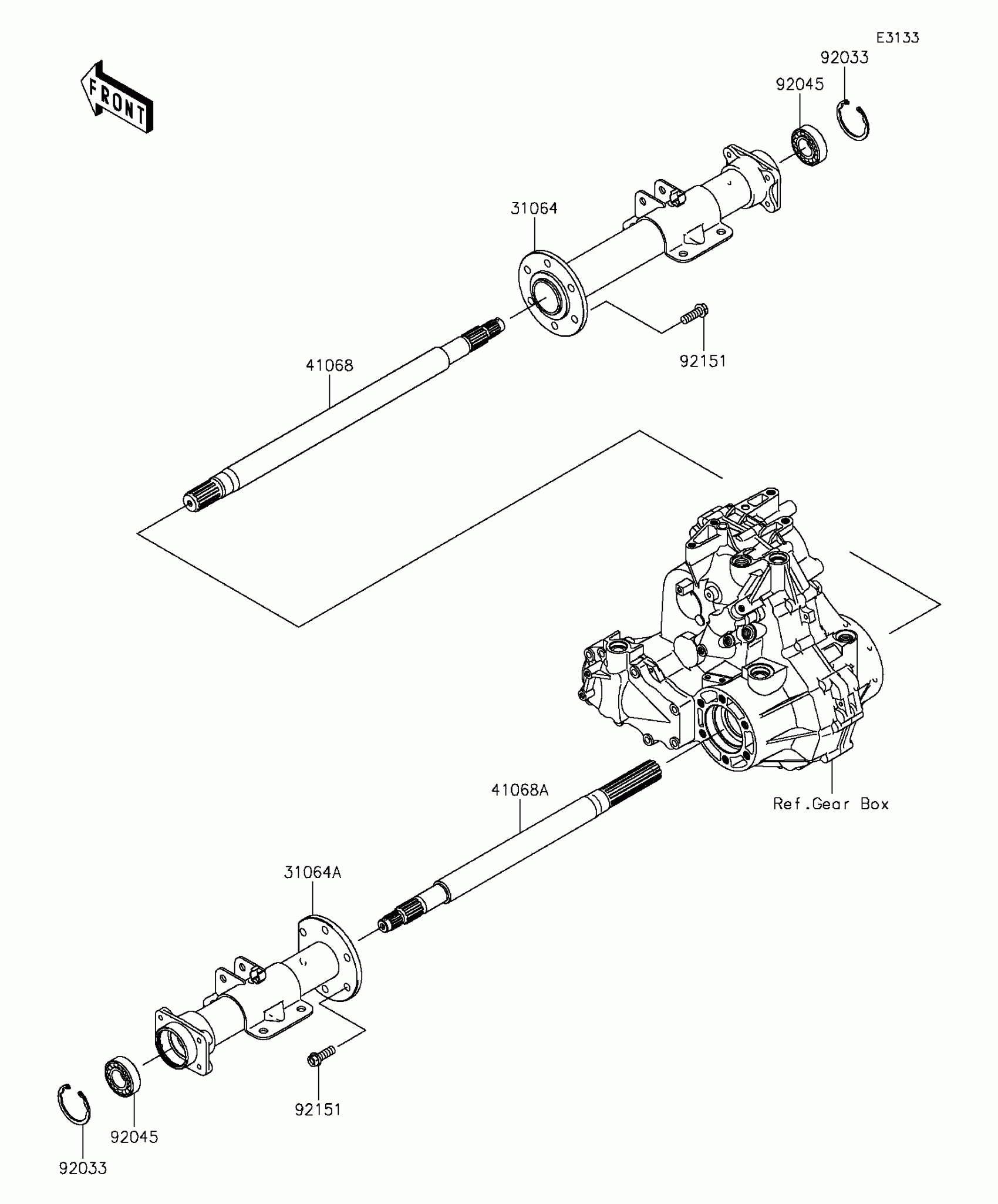

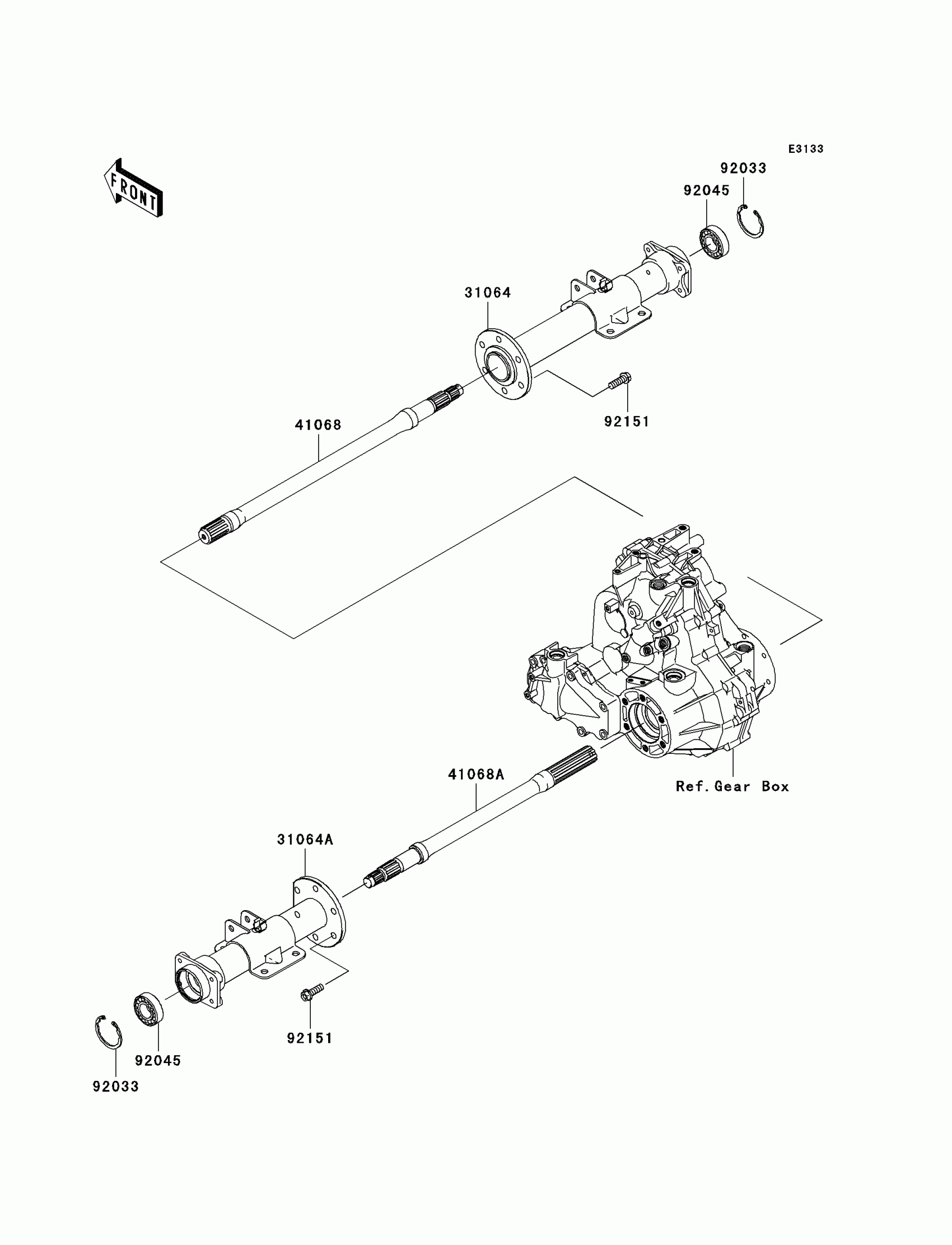

2007 Kawasaki Mule 610 4x4 Rear Axle Diagram

← All diagrams

Find the part on the Rear Axle diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 610 4x4 Rear Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

31064

PIPE-COMP,RH

31064-0012

1
Out of stock

31064A

PIPE-COMP,LH

31064-0013

1
Out of stock

41068

AXLE,RH

41068-0021

1
Out of stock

41068A

AXLE,LH

41068-0022

1
Out of stock

92033

RING-SNAP

92033-2149

1
Out of stock

92045

BEARING-BALL,6205A26DDU2

92045-0044

1
Out of stock

92151

BOLT,10X28

92151-2142

1
Out of stock
