2007 Kawasaki Mule 610 4x4 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

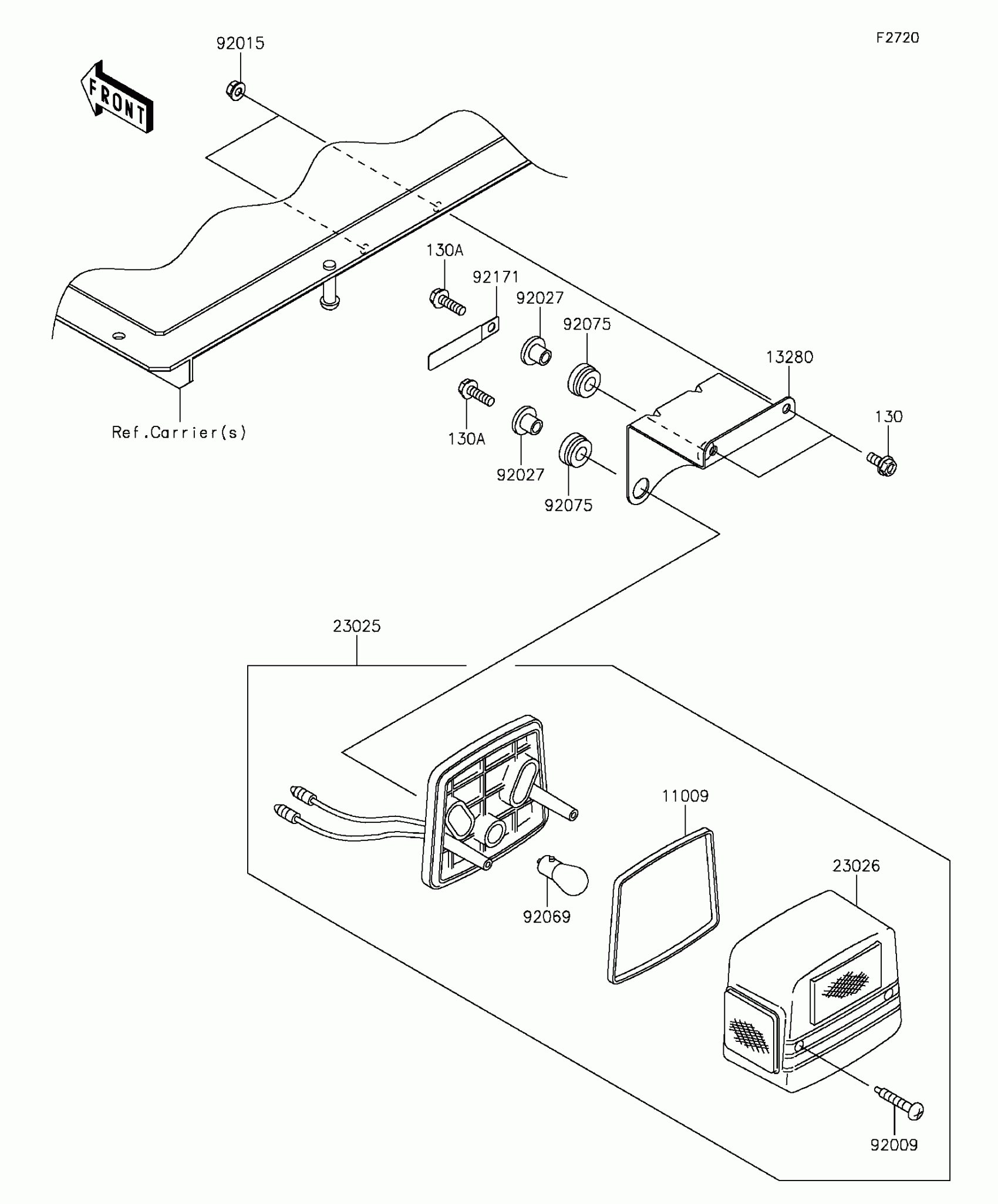

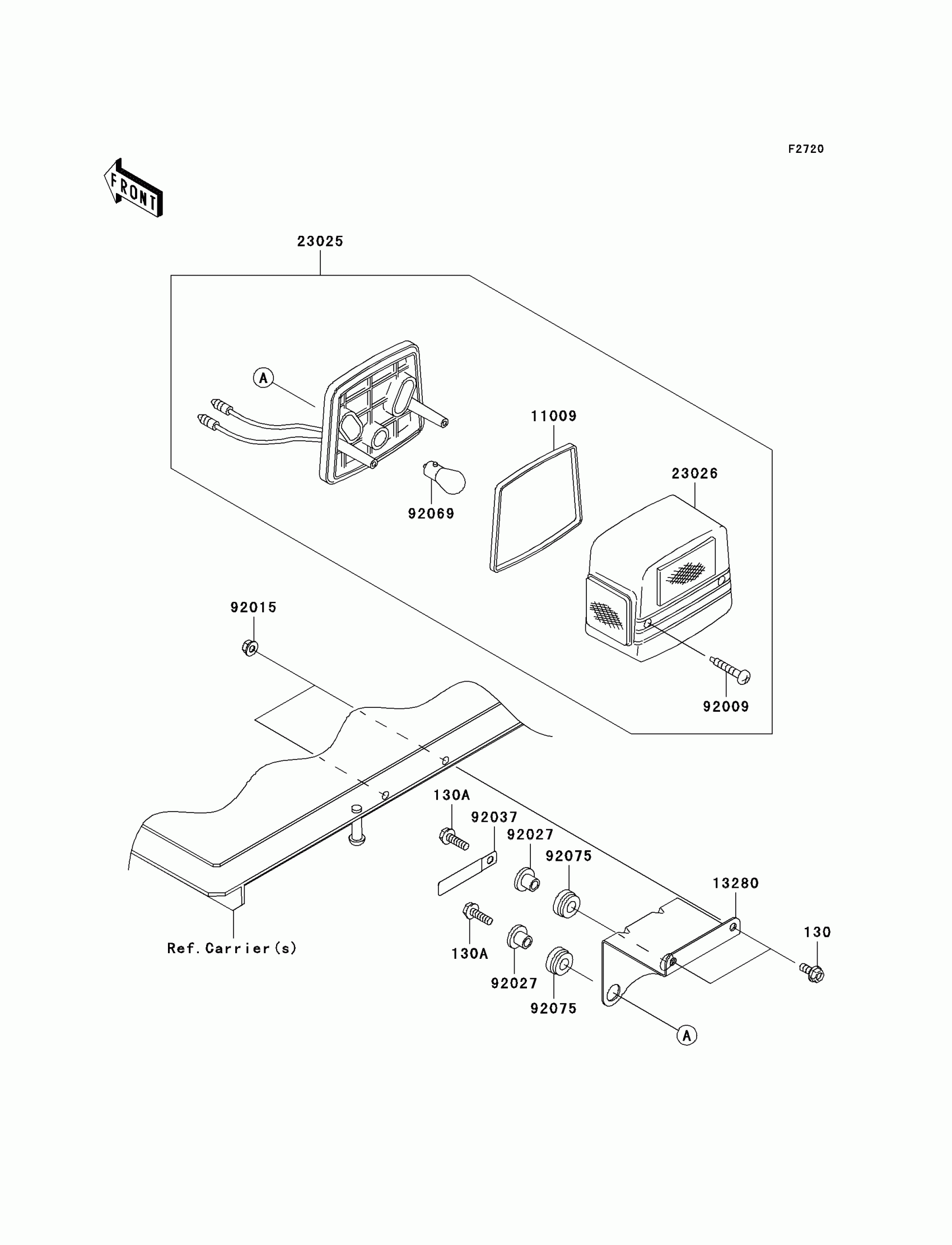

2007 Kawasaki Mule 610 4x4 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

11009

GASKET,TAIL LAMP

11009-1215

1
Out of stock

13280

HOLDER,TAIL LAMP

13280-0079

1

$9.22

In stock

23025

LAMP-TAIL

23025-1042

1
Out of stock

23026

LENS,TAIL LAMP

23026-1019

1
Out of stock

92009

SCREW,TAPPING,4X25

92009-1069

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92027

COLLAR

92027-194

1
Out of stock

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

1
Out of stock

92069

BULB,12V 21/5W

92069-1011

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock
