2007 Kawasaki Mule 610 4x4 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

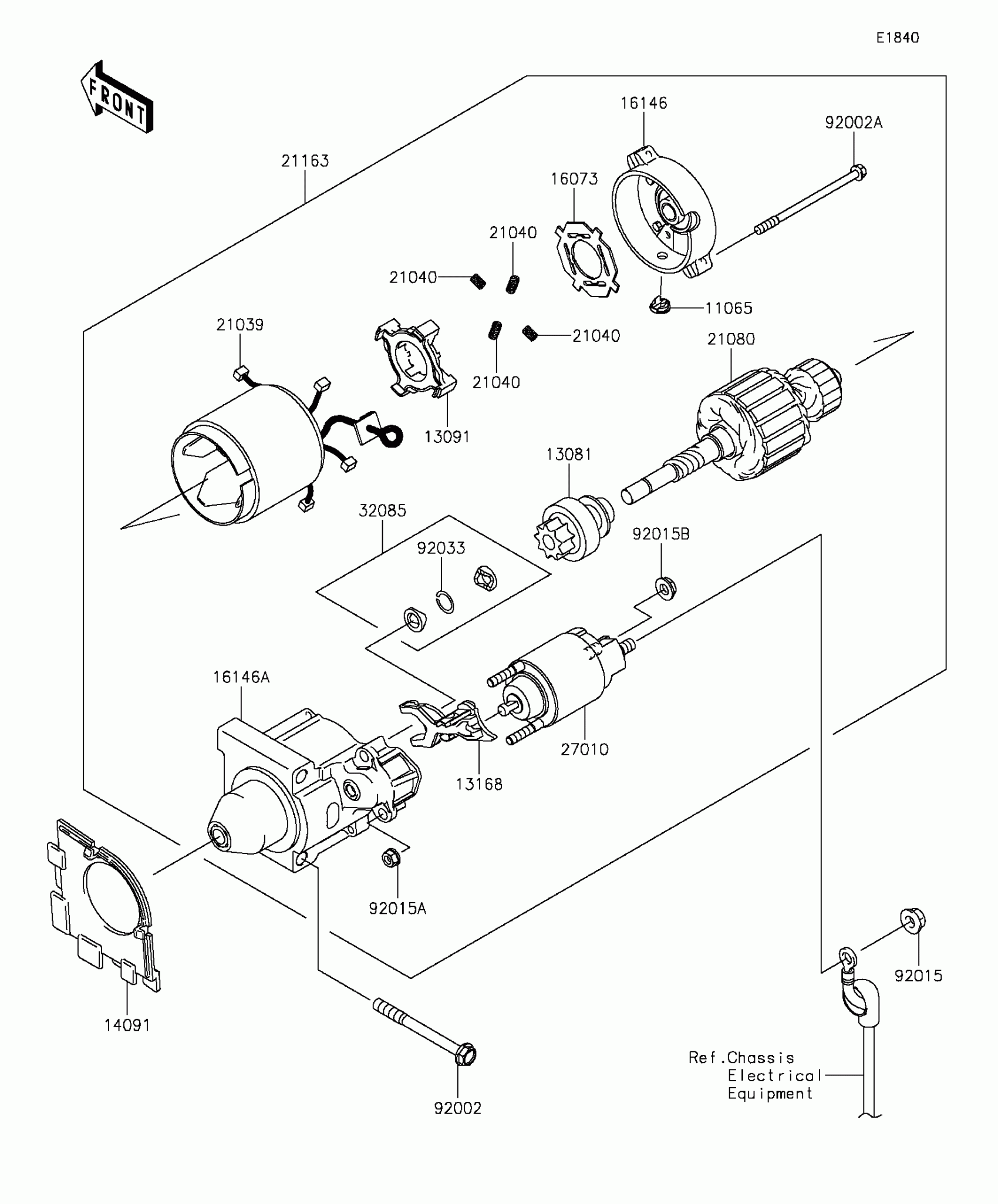

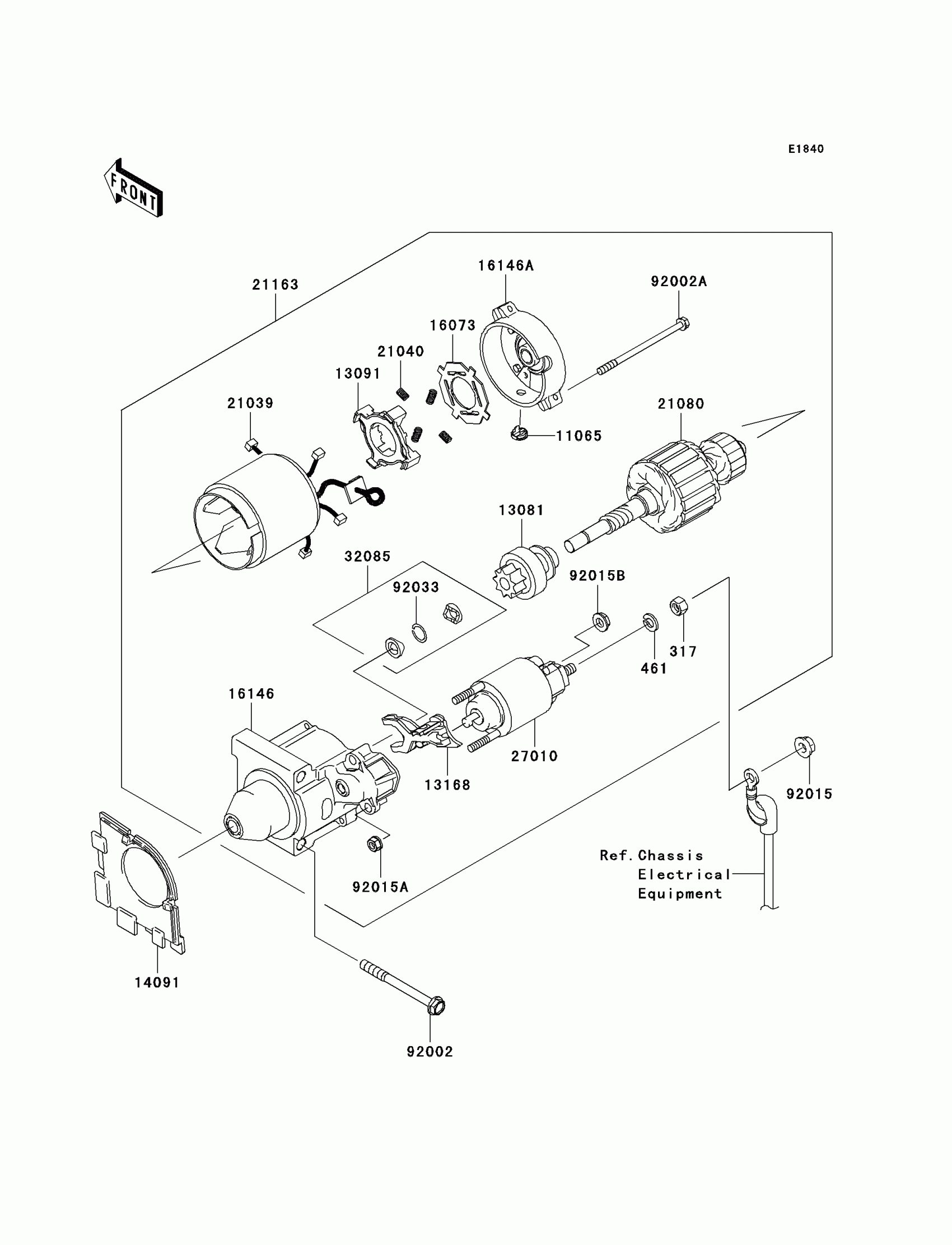

2007 Kawasaki Mule 610 4x4 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

317

NUT-HEX-SMALL,8MM

317B0800

1
Out of stock

461

WASHER SPRING 8MM

461F0800

1
Out of stock

11065

CAP

11065-2118

1
Out of stock

13081

CLUTCH-ASSY

13081-2227

1
Out of stock

13091

HOLDER,BRUSH

13091-2068

1

$24.75

In stock

13168

LEVER,SHIFT

13168-2148

1
Out of stock

14091

COVER

14091-7038

1
Out of stock

16073

INSULATOR

16073-2098

1
Out of stock

16146

COVER-ASSY,DRIVE

16146-7015

1
Out of stock

16146A

COVER-ASSY,END

16146-7016

1
Out of stock

21039

BRUSH

21039-2059

1
Out of stock

21040

SPRING-BRUSH

21040-2052

1
Out of stock

21080

ARMATURE

21080-2058

1
Out of stock

21163

STARTER-ELECTRIC

21163-7020

1
Out of stock

27010

SWITCH

27010-2122

1
Out of stock

32085

STOPPER

32085-2097

1
Out of stock

92002

BOLT,8X83

92002-1794

1
Out of stock

92002A

BOLT

92002-2277

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT

92015-2146

1
Out of stock

92015B

NUT

92015-2147

1
Out of stock

92033

RING-SNAP

92033-2081

1
Out of stock
