2007 Kawasaki Mule 610 4x4 Generator/ignition Coil Diagram

← All diagrams

Find the part on the Generator/ignition Coil diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

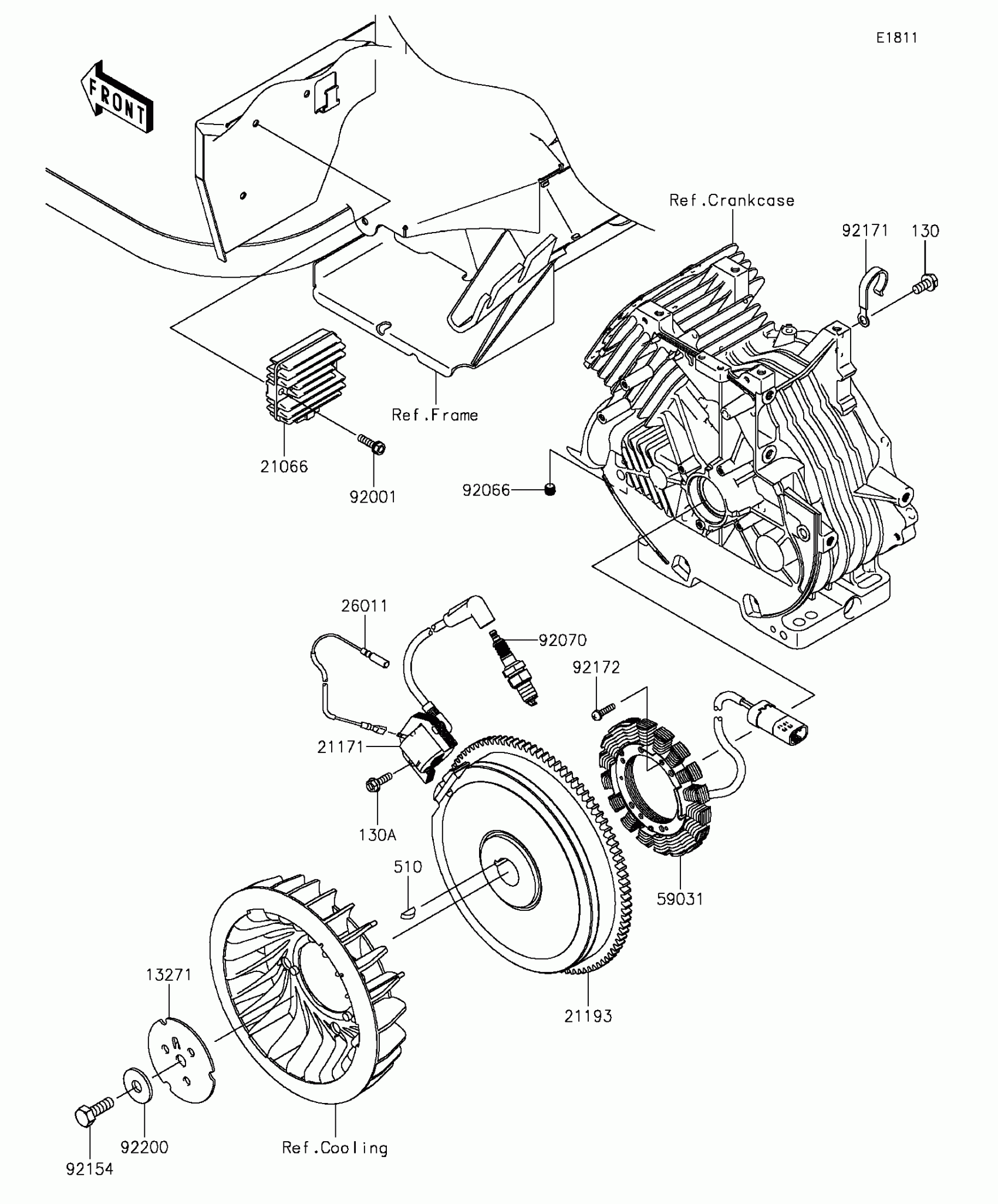

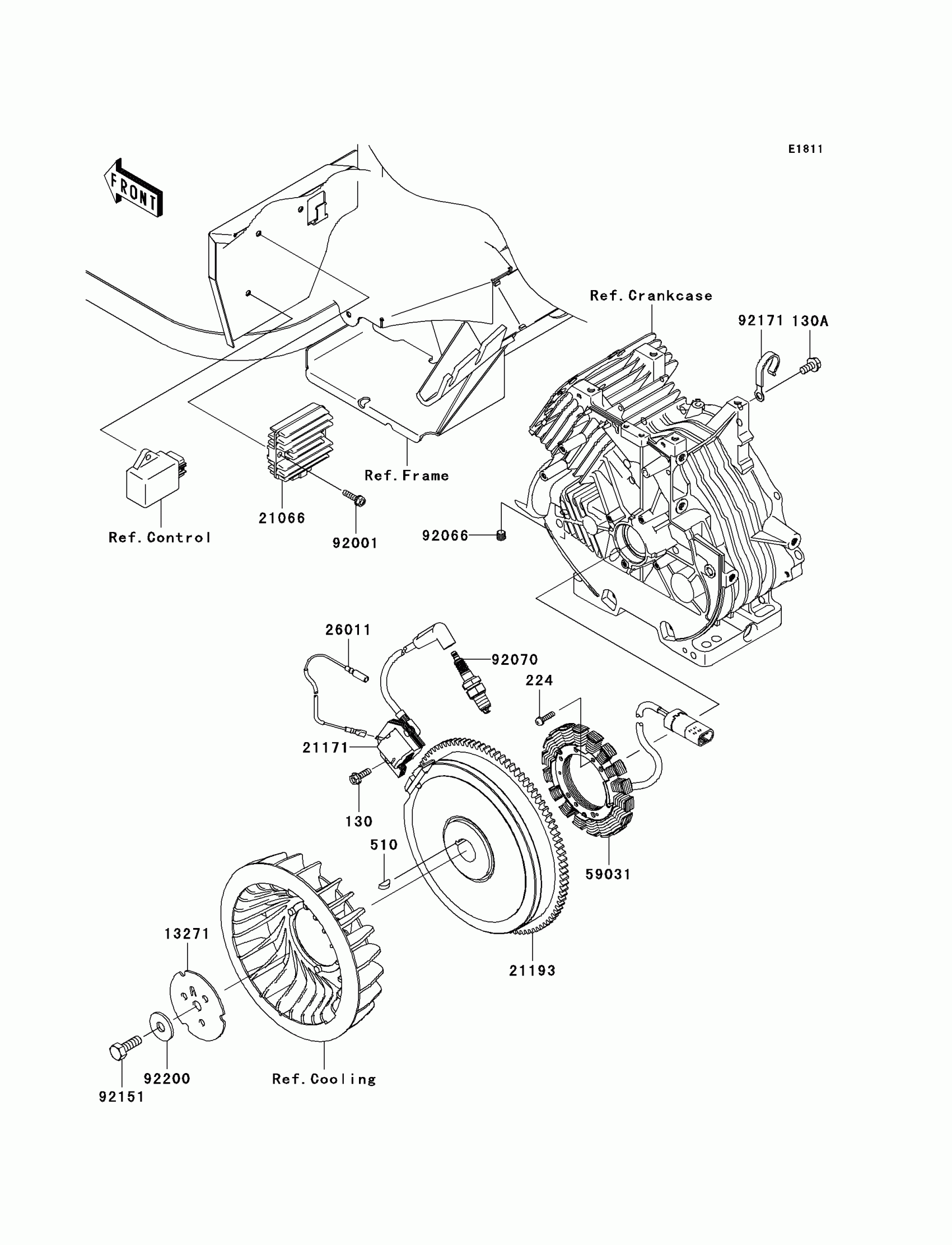

2007 Kawasaki Mule 610 4x4 Generator/ignition Coil Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT,FLANGED,6X20

130B0620

1
Out of stock

130A

BOLT-FLANGED,8X16

130B0816

1
Out of stock

224

SCREW-PAN-WP-CROS,5X20

224B0520

1
Out of stock

510

WOODRUFF KEY

510A5100

1
Out of stock

13271

PLATE,FAN

13271-7029

1

$2.44

In stock

21066

REGULATOR-VOLTAGE

21066-0010

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-7014

1
Out of stock

21193

FLYWHEEL-ASSY

21193-7023

1
Out of stock

26011

WIRE-LEAD

26011-7014

1
Out of stock

59031

COIL-CHARGING

59031-2132

1
Out of stock

92001

BOLT,FLANGED,6X22

92001-1352

1
Out of stock

92066

PLUG

92066-7002

1
Out of stock

92070

PLUG-SPARK,BPR5ES(NGK)

92070-2077

1
Out of stock

92151

BOLT,12X30

92151-2097

1
Out of stock

92171

CLAMP

92171-7005

1
Out of stock

92200

WASHER

92200-7002

1
Out of stock
