2007 Kawasaki Mule 610 4x4 Carrier Diagram

← All diagrams

Find the part on the Carrier diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

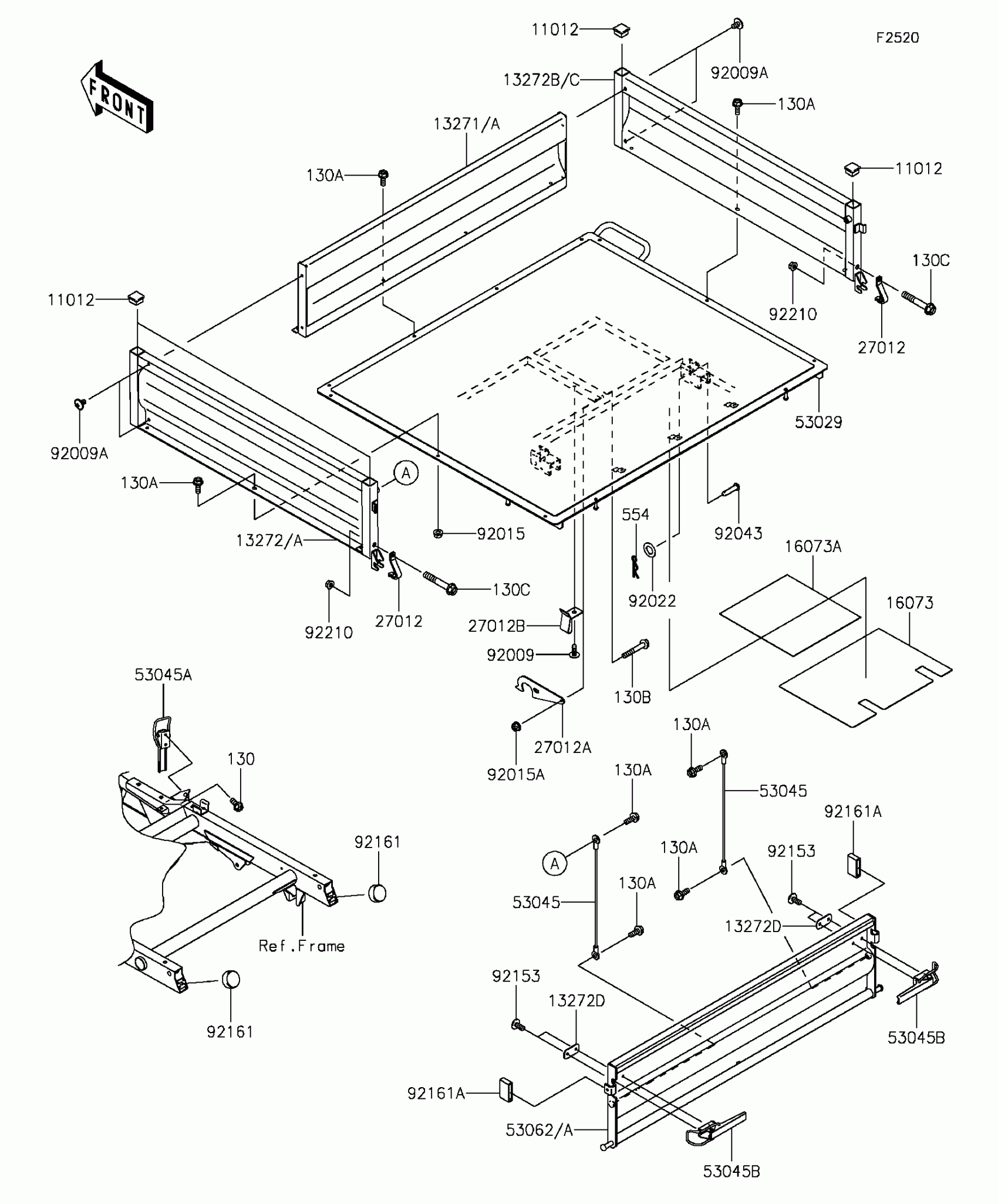

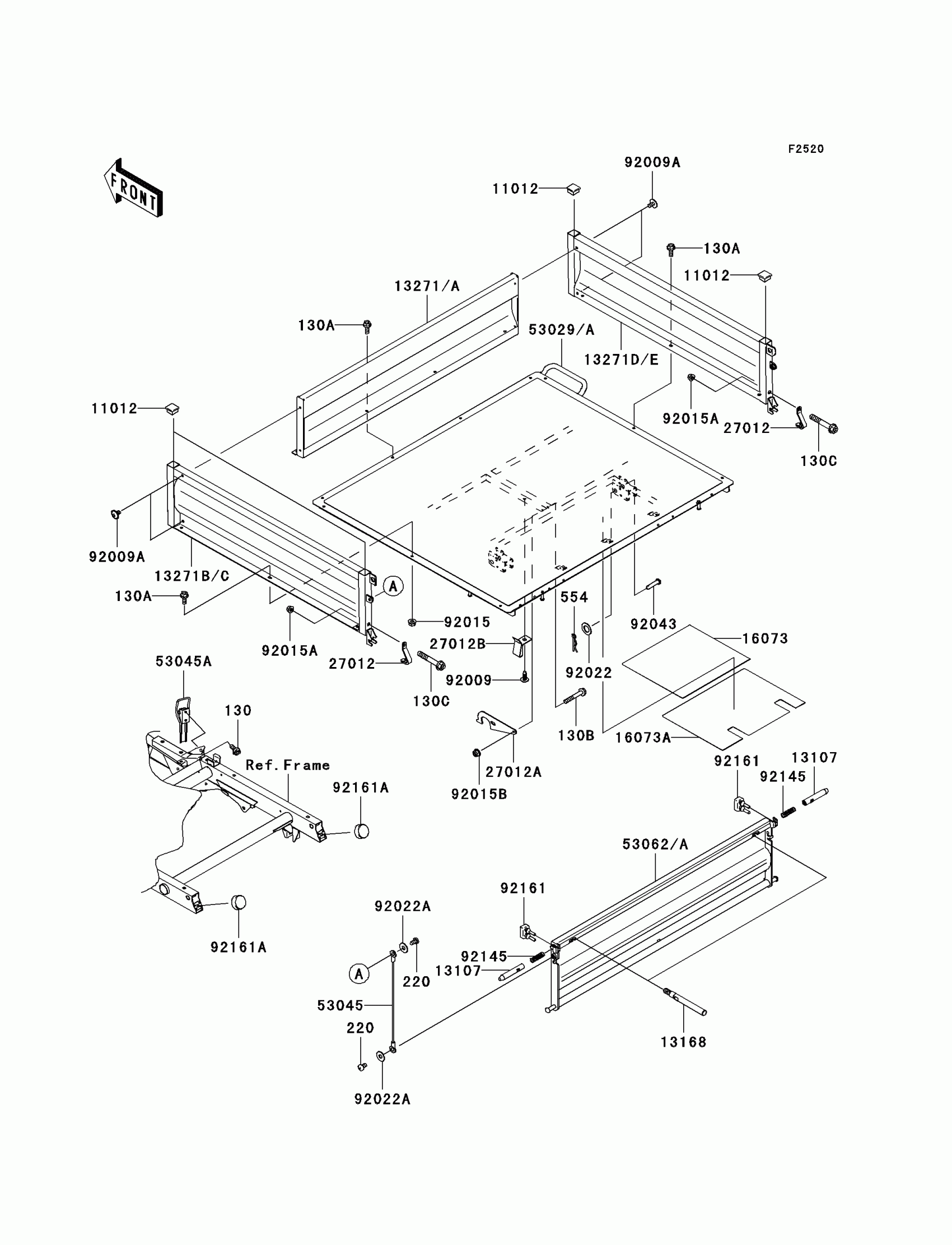

2007 Kawasaki Mule 610 4x4 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

130A

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130B

BOLT-FLANGED,6X40

130J0640

1
Out of stock

130C

BOLT-FLANGED,8X50

130J0850

1
Out of stock

220

SCREW-PAN-CROSS,6X10

220F0610

1
Out of stock

554

PIN-SNAP,12MM

554A1200

1
Out of stock

11012

CAP

11012-1784

1
Out of stock

13107

SHAFT

13107-0082

1
Out of stock

13168

LEVER

13168-0090

1
Out of stock

13271

1

$201.83

In stock

13271A

1

$229.74

In stock

13271B

PLATE,CARRIER,SIDE,LH,H.GREEN

13271-0525-B9

1
Out of stock

13271C

1

$190.76

In stock

13271D

PLATE,CARRIER,SIDE,RH,H.GREEN

13271-0526-B9

1
Out of stock

13271E

1

$190.76

In stock

16073

INSULATOR,CARRIER

16073-0020

1
Out of stock

16073A

INSULATOR,CARRIER

16073-0021

1
Out of stock

27012

HOOK,TAIL GATE

27012-0022

1
Out of stock

27012A

HOOK

27012-0044

1
Out of stock

27012B

HOOK,CARRIER

27012-1445

1
Out of stock

53029

CARRIER,H.GREEN

53029-0018-B9

1

$1,267.28

In stock

53029A

CARRIER,A.RED

53029-0018-467

1

$1,352.79

In stock

53045

HOOK-ASSY,TAIL GATE

53045-0006

1

$23.83

In stock

53045A

HOOK-ASSY

53045-1063

1

$21.73

In stock

53062

GATE-TAIL,H.GREEN

53062-0005-B9

1
Out of stock

53062A

GATE-TAIL,A.RED

53062-0005-467

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92009A

SCREW,6X10

92009-1661

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1386

1
Out of stock

92015A

NUT,FLANGED,8MM

92015-1408

1
Out of stock

92015B

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92022

WASHER,12.5X22X1.2

92022-072

1
Out of stock

92022A

WASHER,7X18X1.2

92022-1545

1
Out of stock

92043

PIN,12X54

92043-1451

1
Out of stock

92145

SPRING,TENSIONER

92145-1215

1
Out of stock

92161

DAMPER

92161-0258

1
Out of stock

92161A

DAMPER

92161-1065

1
Out of stock
